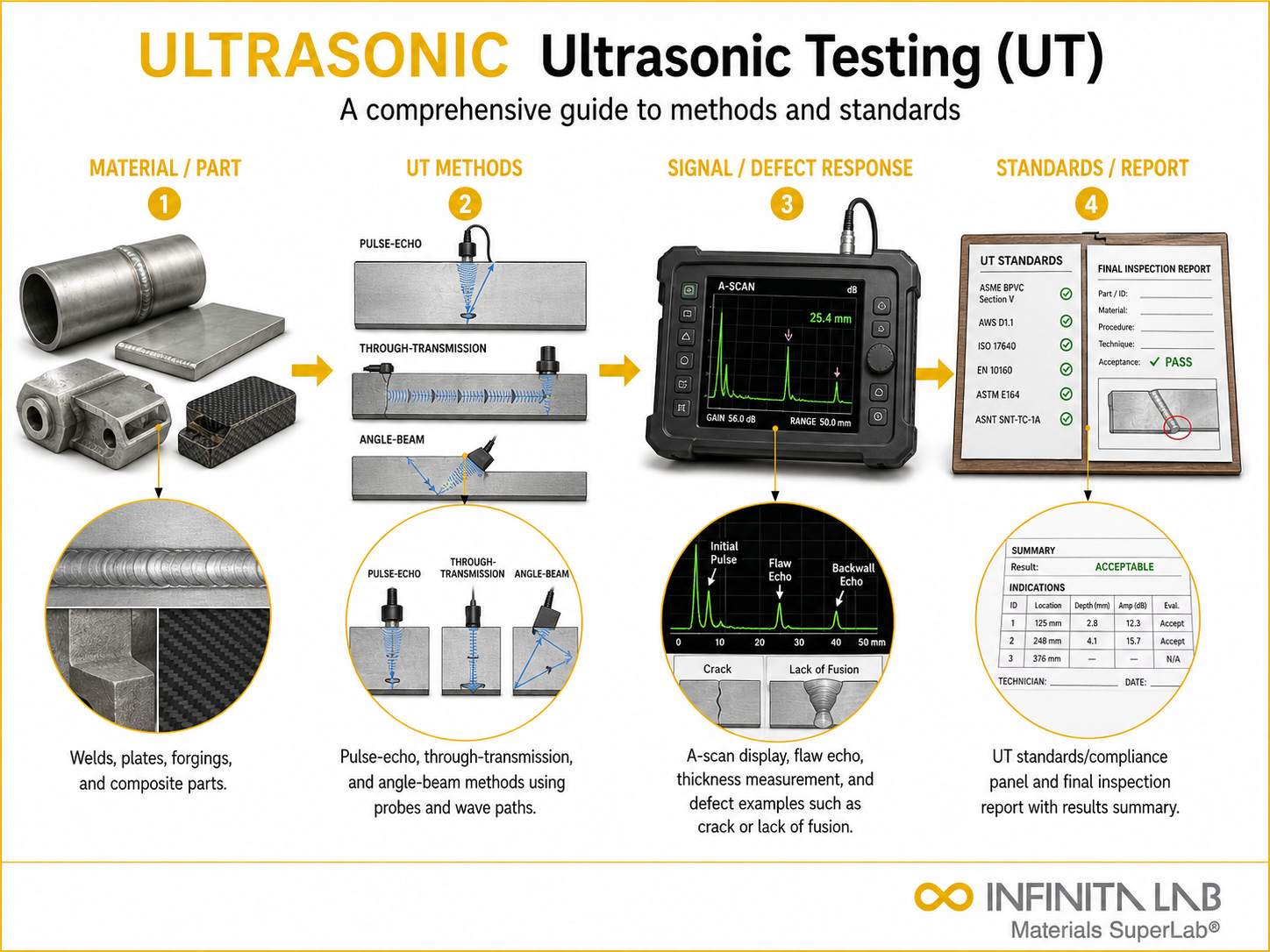

Ultrasonic Testing (UT): A Comprehensive Guide to Methods & Standards
What Is Ultrasonic Testing?
Ultrasonic testing (UT) is a non-destructive testing (NDT) technique that uses high-frequency sound waves — typically 0.1 MHz to 25 MHz — to detect and characterise internal and surface-connected discontinuities in materials and components. It is one of the five primary NDT methods recognised globally (alongside visual inspection, radiographic testing, magnetic particle testing, and dye penetrant testing) and is the most versatile, providing information on defect location, depth, orientation, and size that other methods cannot.
UT is applied in manufacturing quality control, in-service inspection, structural integrity assessment, and failure analysis across the aerospace, oil and gas, power generation, automotive, marine, and infrastructure industries.
Physical Principles of Ultrasonic Testing
A transducer (probe) converts electrical energy into ultrasonic mechanical vibration through the piezoelectric effect. The sound wave propagates through the material and is reflected by interfaces — including material boundaries, defects, and back walls. Reflected signals (echoes) are received by the same transducer (pulse-echo mode) or a second transducer (through-transmission mode), amplified, and displayed for interpretation.
Wave Types Used in UT
Longitudinal (compression) waves propagate through all materials — solids, liquids, and gases — as alternating compression and rarefaction zones. They are the primary wave mode for most UT applications.
Shear (transverse) waves propagate only in solids with particle motion perpendicular to the propagation direction. Higher resolution than longitudinal waves at the same frequency; used for weld inspection and angled beam inspection.
Surface (Rayleigh) waves propagate along the material surface, penetrating to approximately one wavelength depth — used for surface crack detection on smooth surfaces.
Plate (Lamb) waves propagate in thin plates as guided waves — used for rapid inspection of large plate areas and pipe walls.
Primary UT Methods
Conventional Single-Element Pulse-Echo UT
A single crystal transducer transmits and receives ultrasonic pulses. A-scan display shows signal amplitude vs. time-of-flight. The inspector interprets echo patterns to identify defect reflectors. This is the traditional, most widely used UT method — applied with straight-beam (for laminar flaws parallel to the surface) and angle-beam (for vertical flaws such as lack of fusion in welds) probes.
Phased Array Ultrasonic Testing (PAUT)
An array of piezoelectric elements is electronically excited with defined time delays to steer and focus the acoustic beam without mechanical probe movement. PAUT simultaneously generates multiple beam angles, producing B-scan (cross-sectional) and S-scan (sector scan) images that provide superior defect characterisation and faster inspection coverage. PAUT is increasingly replacing conventional UT for weld inspection, corrosion mapping, and composite inspection.
Time-of-Flight Diffraction (TOFD)
TOFD uses diffracted signals from defect tips rather than reflected signals from defect faces. A transmitter and receiver at a defined separation generate diffraction tips from crack tips, enabling accurate height and position measurements of planar defects in welds. TOFD is governed by ASME Code Case 2235 and EN 583-6 and is a standard for pressure-vessel weld inspection.
Full Matrix Capture (FMC) / Total Focusing Method (TFM)
The most advanced UT method — each element in a phased array transmits, and all elements receive for every transmission, building a complete matrix of propagation data. Post-processing using the Total Focusing Method reconstructs a high-resolution image of the full inspection volume. FMC/TFM provides the best defect characterisation currently available by UT.
Automated Ultrasonic Testing (AUT)
Computer-controlled scanners move probes in defined patterns, producing C-scan maps of defect distribution. AUT eliminates operator dependency, provides 100% coverage, and generates permanent digital inspection records — standard for offshore pipeline girth weld inspection (PipeWIZARD, Rotoscan systems).
Key Standards for Ultrasonic Testing
ASME Section V (nuclear and pressure vessels), AWS D1.1 (structural welding), EN 1712/1714 (weld UT), ASTM E428 (calibration), ASTM E2491 (phased array), API 5L (pipeline), and NAS 410/EN 4179 (aerospace personnel certification) form the primary regulatory framework for industrial UT applications.
Conclusion
Ultrasonic testing (UT) — encompassing conventional pulse-echo, phased array (PAUT), time-of-flight diffraction (TOFD), and advanced FMC/TFM methods — provides a powerful and versatile non-destructive approach for detecting, locating, and sizing internal defects in materials and structures. Guided by standards such as ASME Section V, ASTM E428, and EN 1714, UT enables accurate assessment of material integrity, weld quality, and structural reliability across industries. Selecting the appropriate UT technique based on material type, defect characteristics, and inspection requirements is essential for achieving reliable, high-resolution results — making the inspection strategy as important as the findings themselves.
Why Choose Infinita Lab for Ultrasonic Testing?
Infinita Lab provides comprehensive ultrasonic testing services — conventional, PAUT, TOFD, and AUT — through our nationwide network of 2,000+ accredited NDT inspection laboratories, with Level I-III-certified personnel for all UT methods and application sectors.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you.
Frequently Asked Questions (FAQs)
What are the advantages of PAUT over conventional UT for weld inspection? PAUT generates multiple beam angles simultaneously, providing a cross-sectional image of the weld zone with much faster coverage than multi-pass conventional angle beam scanning. It also provides superior defect characterisation (length, height, location) and more easily defensible digital records. PAUT has largely replaced conventional UT for code-compliant weld inspection in pressure vessels, pipelines, and offshore structures.
What is UT sensitivity and how is it set for a specific inspection? UT sensitivity is the ability to detect a specified minimum defect size. It is set by adjusting the instrument gain so that a calibration reflector of defined size (flat bottom hole, side-drilled hole, or notch) at the worst-case inspection depth produces a defined signal amplitude on the A-scan display. All defects producing echoes equal to or greater than the calibration signal height are recorded.
What materials can be inspected by ultrasonic testing? UT works in any material that transmits sound — metals, composites, ceramics, plastics, and wood. Coarse-grained materials (austenitic stainless steel castings, cast iron) scatter ultrasound heavily, limiting penetration and sensitivity. Highly attenuating materials (rubber, foam) are difficult to test by conventional UT but can be inspected by low-frequency techniques.
How deep can UT detect defects in steel? UT can inspect steel to depths exceeding 10 metres in clean, fine-grained material using low frequencies (0.5–1 MHz). Practical inspection ranges depend on material attenuation, grain noise, and the minimum detectable defect size required. Most weld inspection applications cover depths up to 200–300 mm; heavy forgings and pressure vessel shells up to 500 mm or more.
What is the difference between A-scan, B-scan, and C-scan UT displays? A-scan shows signal amplitude vs. time-of-flight (depth) at a single probe position — the basic pulse-echo display. B-scan is a cross-sectional image showing depth vs. position along a scan line — produced by recording A-scan data at each position as the probe is moved. C-scan is a top-view plan image showing defect amplitude or depth across a scanned area — produced by scanning in two dimensions.
