How MTPS Is Effective in Geothermal Research: Thermal Conductivity Guide
Modified Transient Plane Source (MTPS) technology has emerged as a powerful tool for measuring thermal conductivity and effusivity of geothermal materials. Its ability to analyse solids, liquids, and pastes with minimal sample preparation makes it particularly valuable for characterising rock formations, drilling fluids, cement slurries, and thermal grout used in geothermal energy systems. For researchers seeking thermal conductivity testing at a US-based testing lab, Infinita Lab provides comprehensive thermal property measurement through its accredited laboratory network.

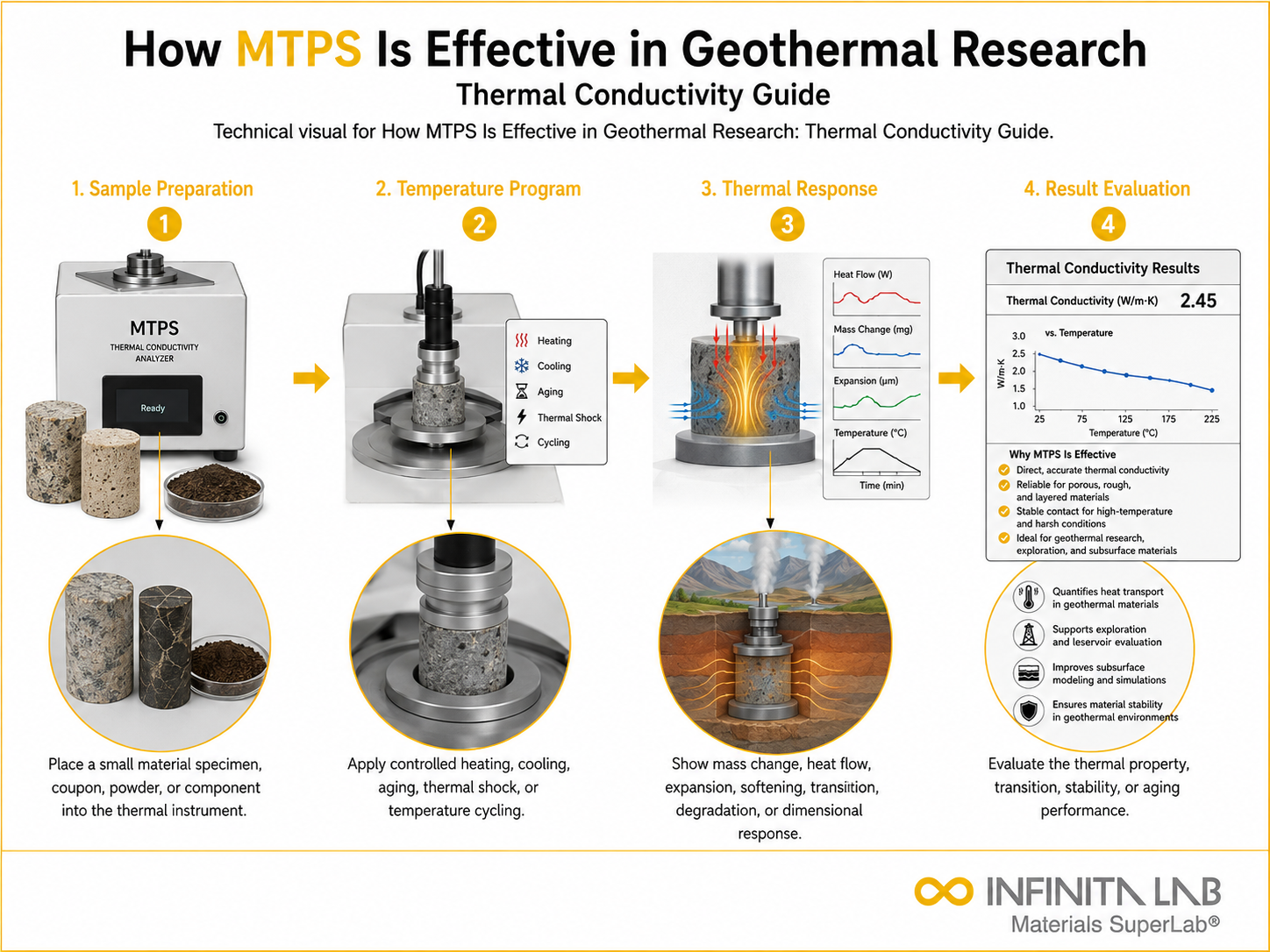

How MTPS Technology Works
MTPS uses a single-sided interfacial sensor that applies a known heat flux to the specimen surface and measures the temperature response. The thermal conductivity and effusivity are calculated from the voltage drop across the sensor, which relates to the heat absorbed by the sample. Testing requires minimal sample preparation—specimens simply need to be in contact with the sensor.
Applications in Geothermal Research
- Rock and Formation Characterisation: MTPS measures the thermal conductivity of drill cores and rock samples to map subsurface thermal properties, estimate geothermal gradients, and model heat-extraction potential for geothermal reservoir assessment.
- Drilling Fluid and Cement Characterisation: Geothermal drilling fluids and cement slurries require optimised thermal properties for wellbore stability and thermal management. MTPS testing during formulation development ensures these materials meet thermal performance requirements.
- Thermal Grout Optimisation: Ground source heat pump systems use thermal grout to fill the annular space around borehole heat exchangers. MTPS testing validates grout thermal conductivity to maximise heat-transfer efficiency in construction and energy sectors.
Advantages of MTPS for Geothermal Applications
MTPS offers rapid measurement (seconds per test), non-destructive testing, minimal sample preparation, the ability to measure solids and fluids with the same sensor, and temperature-dependent measurements up to 200°C—making it ideal for the diverse materials encountered in geothermal research.
Why Choose Infinita Lab for Thermal Conductivity Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardised ASTM/ISO testing, we give clients unmatched flexibility, specialisation, and scale. You are not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is MTPS? Modified Transient Plane Source is a thermal conductivity measurement technique that uses a single-sided sensor to measure thermal conductivity and effusivity with minimal sample preparation, applicable to solids, liquids, and pastes.
Why is thermal conductivity important in geothermal research? Thermal conductivity determines how efficiently heat flows through rock formations and engineered materials. Accurate values are essential for modelling geothermal reservoir potential, designing wellbore completions, and optimizing heat exchange systems.
What materials does MTPS test in geothermal applications? MTPS tests rock cores, formation samples, drilling fluids, cement slurries, thermal grout, phase change materials, and insulation—essentially all materials involved in geothermal energy exploration, development, and ground-source heat pump installations.
How does MTPS compare to steady-state thermal conductivity methods? MTPS is much faster (seconds versus hours), requires less sample preparation, and measures both conductivity and effusivity simultaneously. Steady-state methods (guarded hot plate per ASTM C177) provide higher absolute accuracy for reference testing.
What ASTM standards cover thermal conductivity testing? ASTM D5334 covers thermal conductivity by needle probe, ASTM C177 covers guarded hot plate, ASTM C518 covers heat flow meter, and ASTM E1952 covers transient methods. MTPS measurements follow manufacturer protocols and are traceable to these standards.
