Downhole Tubing & Casing Material Selection: An Engineer’s Guide

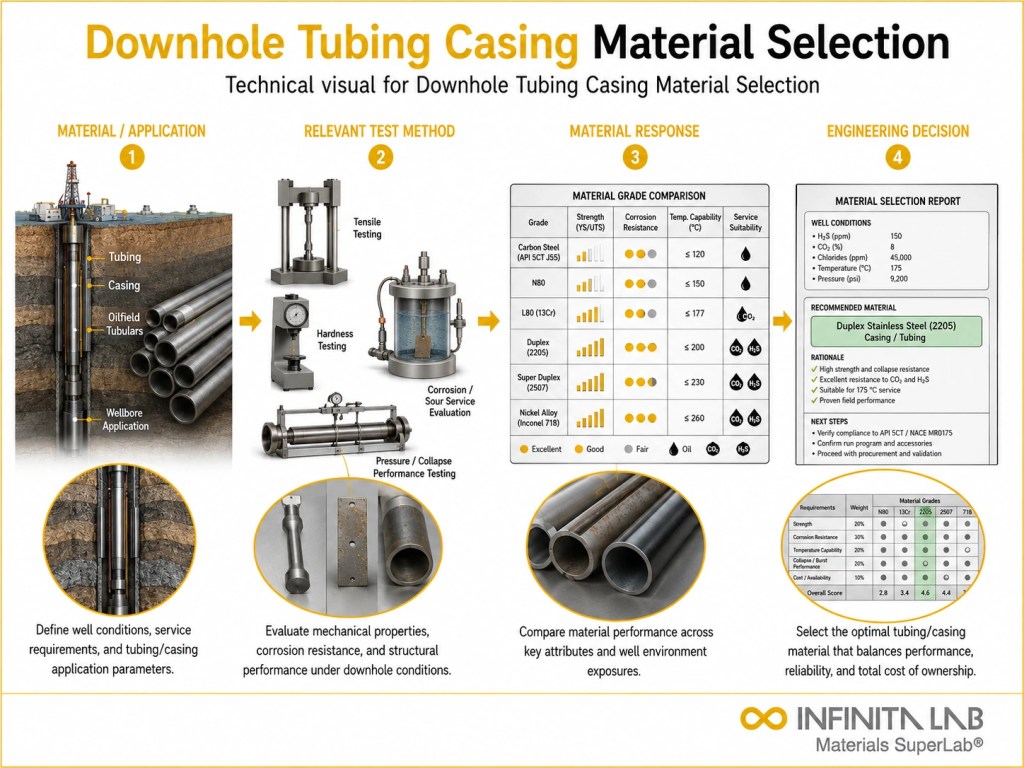

Representative Infinita Engineering Visual explaining the four-step workflow for Downhole Tubing Casing Material Selection.What Is Downhole Tubing & Casing?
Downhole tubing and casing are the tubular steel (or alloy) strings that line and support an oil or gas wellbore from surface to reservoir depth. Casing is cemented in place to stabilize the borehole wall, isolate formations, and provide a pressure barrier against the surrounding rock and fluids. Tubing runs inside the casing as the conduit that actually carries produced hydrocarbons — or injected fluids — between the reservoir and the surface.
Material selection for these strings is one of the highest-consequence decisions in well design. The tubulars must survive decades of exposure to corrosive brines, sour gas (H₂S), CO₂, high pressures, high temperatures, and mechanical loading from installation, production, and workovers — all while remaining economically viable across thousands of feet of pipe. Since the earliest cable-tool wells of the 1860s, casing and tubing metallurgy has evolved from plain carbon steel into a broad family of alloys engineered for specific downhole environments.
Types of Tubing & Casing Materials
Carbon & Low-Alloy Steel (L80, N80, P110, Q125)
The workhorse of the industry. These grades offer high strength, well-understood mechanical behavior, and the lowest cost per foot. Suitable for sweet (non-corrosive) service or environments with mild CO₂ exposure. Grade selection is governed primarily by required yield strength and depth-related collapse/burst loads.
Corrosion-Resistant Alloys (CRA) — 13Cr, Super 13Cr, Duplex Stainless
Martensitic 13Cr and super-13Cr grades resist CO₂ corrosion far better than carbon steel and are common in moderately sour, CO₂-rich wells. Duplex and super-duplex stainless steels add higher chromium and nickel content for improved resistance in more aggressive chloride and mixed CO₂/H₂S environments, at a meaningfully higher cost.
Nickel-Based Alloys (Alloy 825, Alloy 625, Alloy 718)
Reserved for the harshest sour service — high H₂S partial pressure combined with high chloride concentration and elevated temperature. These alloys resist sulfide stress cracking and pitting where even duplex stainless would fail, and are typically specified for HPHT (high-pressure, high-temperature) sour wells.
Fiberglass & FRP-Lined/Composite Tubulars
Fiberglass-reinforced pipe and FRP-lined steel tubing are used in shallower, low-pressure, corrosive water-injection or disposal wells where full metallic CRA strings are not cost-justified. Excellent internal corrosion resistance but limited by lower pressure and temperature ratings compared to steel.
Titanium Alloys
An emerging niche category for extreme deepwater and ultra-sour applications where weight reduction (riser and tubing string load on the rig) combines with a need for corrosion performance beyond nickel alloys. High cost currently limits use to specialized completions.
Also Read – Corrosion Testing Techniques & Industrial Applications: A Complete Guide
Manufacturing Processes
Seamless Pipe Manufacturing
A solid steel billet is pierced and rolled into a hollow tube without a longitudinal weld seam. Produces the most uniform wall thickness and mechanical properties, and is the dominant process for API casing and tubing due to its reliability under high pressure and collapse loading.
Electric Resistance Welding (ERW)
Flat steel plate is rolled into a cylinder and the seam is welded using electrical resistance heating. Lower cost than seamless, used where line pipe or lower-pressure applications don’t require seamless-grade performance; less common for critical downhole casing/tubing strings.
Quenching & Tempering (Heat Treatment)
After forming, tubulars are heat-treated to develop the specific yield strength, hardness, and toughness required by the API/ISO grade — critical for sour-service grades where hardness limits control sulfide stress cracking resistance.
Threading & Connection Machining
Pipe ends are precision-machined to API or proprietary premium connection profiles (buttress, VAM, TenarisHydril, etc.), then often coated or plated to improve galling resistance and seal integrity under makeup torque.
Cladding & Lining
Carbon steel base pipe can be internally clad with a thin CRA layer (mechanically or metallurgically bonded) or lined with fiberglass/epoxy, combining the structural strength and lower cost of steel with the corrosion resistance of the liner material at the fluid-contact surface.
Key Properties by Material Class
| Property | Carbon/Low-Alloy Steel | 13Cr / Super 13Cr | Duplex Stainless | Nickel Alloys (825/625) |
|---|
| Yield Strength | Moderate–Very High | Moderate–High | High | Moderate–High |
| CO₂ Corrosion Resistance | Poor–Fair | Good | Very Good | Excellent |
| H₂S / Sour Service Resistance | Fair (with limits) | Fair–Good | Good | Excellent |
| Chloride Pitting Resistance | Poor | Fair | Good | Excellent |
| Max Practical Temperature | High | Moderate–High | Moderate–High | Very High |
| Relative Cost | Low | Moderate | High | Very High |
| Weldability/Field Handling | Excellent | Good | Fair | Fair |
Beyond corrosion and strength, selection must also account for collapse resistance under external pressure, burst resistance under internal pressure, triaxial stress from combined tension/pressure/bending, and thread connection performance under cyclic thermal and pressure loading during the well’s life.
Applications by Well Environment
Sweet, Low-Pressure Onshore Wells — Standard carbon steel grades (J55, K55, N80) provide the most economical solution where corrosive gas content is negligible.
CO₂-Rich Wells (Enhanced Oil Recovery, Sweet Gas) — 13Cr and super-13Cr tubing is standard practice to manage carbonic acid corrosion rates over the injection or production life of the well.
Sour Gas & H₂S Service — NACE MR0175/ISO 15156-compliant sour-service carbon steel, duplex stainless, or nickel alloys are selected based on H₂S partial pressure, chloride concentration, and temperature, per the material’s qualified operating envelope.
HPHT Wells — Nickel-based alloys and select duplex grades handle the combined mechanical and corrosion demands of high-temperature, high-pressure reservoirs where standard CRA envelopes are exceeded.
Water Injection & Disposal Wells — Fiberglass, FRP-lined, or internally coated carbon steel tubulars manage oxygen and bacterial corrosion in injection strings at lower pressure ratings.
Offshore & Deepwater Completions — Premium connections paired with CRA or clad tubulars address both corrosion and the critical sealing performance required in subsea and long-reach completions.
Industry Standards Referencing Downhole Tubulars
Product Specification & Manufacturing: API 5CT (casing and tubing specification), API 5B (threading, gauging, and thread inspection), ISO 11960 (steel pipes for casing and tubing)
Sour Service Qualification: NACE MR0175 / ISO 15156 (materials for use in H₂S-containing environments), NACE TM0177 (sulfide stress cracking test methods)
Connection Performance: API 5C5 / ISO 13679 (evaluation procedures for casing and tubing connections)
Mechanical & Metallurgical Testing: ASTM A370 (mechanical testing of steel products), ASTM E18 (Rockwell hardness), ASTM E23 (Charpy impact testing)
Corrosion Testing: NACE TM0284 (hydrogen-induced cracking resistance), ASTM G48 (pitting and crevice corrosion resistance of stainless alloys)
Design & Well Integrity: API TR 5C3 (calculation of pipe body and connection performance properties), ISO 10400 (equations and calculations for casing/tubing properties)
Advantages and Limitations
Advantages
- Broad grade selection allows precise matching of cost to actual downhole corrosion and mechanical severity
- Decades of standardized qualification data (API, NACE, ISO) support predictable, auditable material selection
- Premium connections and CRA metallurgy extend well life significantly in aggressive environments, reducing costly workovers
- Cladding and lining technologies allow near-CRA corrosion performance at a fraction of solid-CRA material cost
- Well-established supply chains and manufacturing capacity across seamless pipe producers worldwide
Limitations
- Solid CRA and nickel-alloy strings carry substantial cost premiums that can dominate completion economics in deep or long-reach wells
- Sour-service qualification limits (per NACE MR0175/ISO 15156) can be restrictive, sometimes forcing higher-alloy selection than corrosion rate alone would suggest
- Clad and lined tubulars introduce bond-integrity and liner-damage risks during running, especially in deviated or horizontal wells
- Field welding and repair of CRA and nickel alloys require specialized procedures and are far less forgiving than carbon steel
- Long lead times for premium connections and higher CRA grades can affect rig scheduling and well cost certainty
Also Read – Corrosion Testing Methods: Salt Spray, Immersion, Electrochemical & More
Conclusion
Downhole tubing and casing material selection sits at the intersection of metallurgy, corrosion engineering, and well economics. Getting it right means matching yield strength, collapse/burst performance, and corrosion resistance to the specific pressure, temperature, and produced-fluid chemistry of each well — while validating that selection against API 5CT/ISO 11960 product specifications and NACE MR0175/ISO 15156 sour-service requirements. As wells push into deeper, hotter, and more corrosive reservoirs, the margin for material selection error continues to shrink, making rigorous testing and qualification an essential part of every completion design.
What is downhole tubing and casing material selection? It is the process of choosing materials that can withstand well pressure, temperature, mechanical loads, corrosion, and production fluids. Proper selection helps maintain well integrity throughout drilling, completion, and production.
What is the difference between casing and production tubing? Casing supports the wellbore, isolates underground formations, and provides structural containment. Production tubing is installed inside the casing and carries oil, gas, water, or injection fluids to or from the reservoir.
What factors influence material selection? Important factors include internal and external pressure, axial loading, temperature, produced-fluid chemistry, hydrogen sulfide, carbon dioxide, chlorides, erosion, and expected well life. Installation conditions, inspection requirements, availability, and total lifecycle cost must also be considered.
When should corrosion-resistant alloys be considered? CRAs may be required when carbon steel cannot provide acceptable resistance to corrosion or cracking. They are commonly evaluated for wells containing severe combinations of H₂S, CO₂, chlorides, high temperature, water production, or corrosive treatment chemicals.
How are tubing and casing grades selected? The selected grade must provide sufficient yield strength, collapse resistance, burst resistance, and tensile capacity for the anticipated loads. Engineers must also consider toughness, hardness limits, corrosion performance, connection efficiency, and safety factors.
