What Is Stress Corrosion Cracking (SCC)?

What Is Stress Corrosion Cracking?

Stress corrosion cracking (SCC) is an environmentally assisted failure mechanism caused by the combined and synergistic action of three factors: sustained tensile stress, a susceptible material, and a specific corrosive environment. Remove any one of the three and cracking does not occur — which is also the basis of every prevention strategy. SCC can initiate and propagate at stresses well below the yield strength, often below 50% of it, and residual stresses from welding, machining, or forming are frequently sufficient on their own. Because cracks are tight, branched, and typically hidden beneath intact surfaces with little overall corrosion, SCC provides minimal visible warning before final, rapid fracture. It is a primary integrity concern in the oil & gas, chemical processing, power generation, aerospace, and marine industries.

Mechanisms of Stress Corrosion Cracking

Anodic Dissolution

The plastically strained metal at the crack tip dissolves anodically at a rate accelerated relative to that of the crack walls. Crack advance continuously exposes fresh, reactive metal, sustaining a localised electrochemical cell that drives the crack forward. Intergranular SCC of sensitised stainless steel follows this mechanism along chromium-depleted grain boundaries.

Film Rupture / Slip Dissolution

Passive oxide films that normally protect the alloy are ruptured by slip steps emerging at the crack tip. The bare metal exposed at the rupture site dissolves rapidly before the film repassivates, advancing the crack in increments. Crack growth rate is governed by the competition between film rupture frequency and repassivation kinetics.

Hydrogen Embrittlement

In hydrogen-assisted cracking, atomic hydrogen generated by cathodic reactions at the surface (or by H₂S in sour service) diffuses to the region of high triaxial stress ahead of the crack tip, lowering grain-boundary cohesion and local ductility. High-strength steels above roughly 22 HRC / 1000 MPa become increasingly susceptible — the basis of the NACE MR0175/ISO 15156 hardness limits for sour oilfield service.

Crack paths may be intergranular (along grain boundaries — sensitised stainless, caustic cracking, season cracking of brass) or transgranular (through grains, typically branched — chloride SCC of austenitic stainless steel). Fractographically, SCC shows branched cracking with corrosion products on crack faces and little macroscopic ductility.

Also Read – Pre-Startup Corrosion Prevention and Hydrostatic Testing for Pipelines

SCC-Susceptible Material–Environment Combinations

Testing Standards for Stress Corrosion Cracking

ASTM G36 — Boiling Magnesium Chloride Test

Rapid screening of stainless steels and related alloys in boiling 45% MgCl₂ at 155°C. Extremely aggressive — it ranks relative susceptibility within days but deliberately overtests; failure in G36 does not mean failure in milder service chlorides.

ASTM G44 — Alternate Immersion

Specimens are cycled 10 minutes immersed / 50 minutes drying in 3.5% NaCl, simulating marine splash-zone wetting. The standard exposure environment for SCC testing of aluminium alloys and steels, typically run for 20–90 days.

ASTM G47 / G49 — Aluminium Alloy SCC (Constant Load/Strain)

ASTM G49 covers preparation and stressing of direct-tension specimens; G47 applies it to determine SCC resistance of 2xxx and 7xxx aluminium alloys, usually in the short-transverse direction where susceptibility is highest. Specimens held at defined stress levels in alternate immersion establish a threshold stress for the alloy/temper.

ASTM G129 — Slow Strain Rate Testing (SSRT)

A tensile specimen is pulled at strain rates around 10⁻⁶ /s in the test environment and in an inert reference. Loss of elongation, reduction of area, or fracture stress relative to the inert baseline quantifies susceptibility. SSRT forces the issue quickly, making it the standard screening method for alloy/environment/inhibitor comparisons.

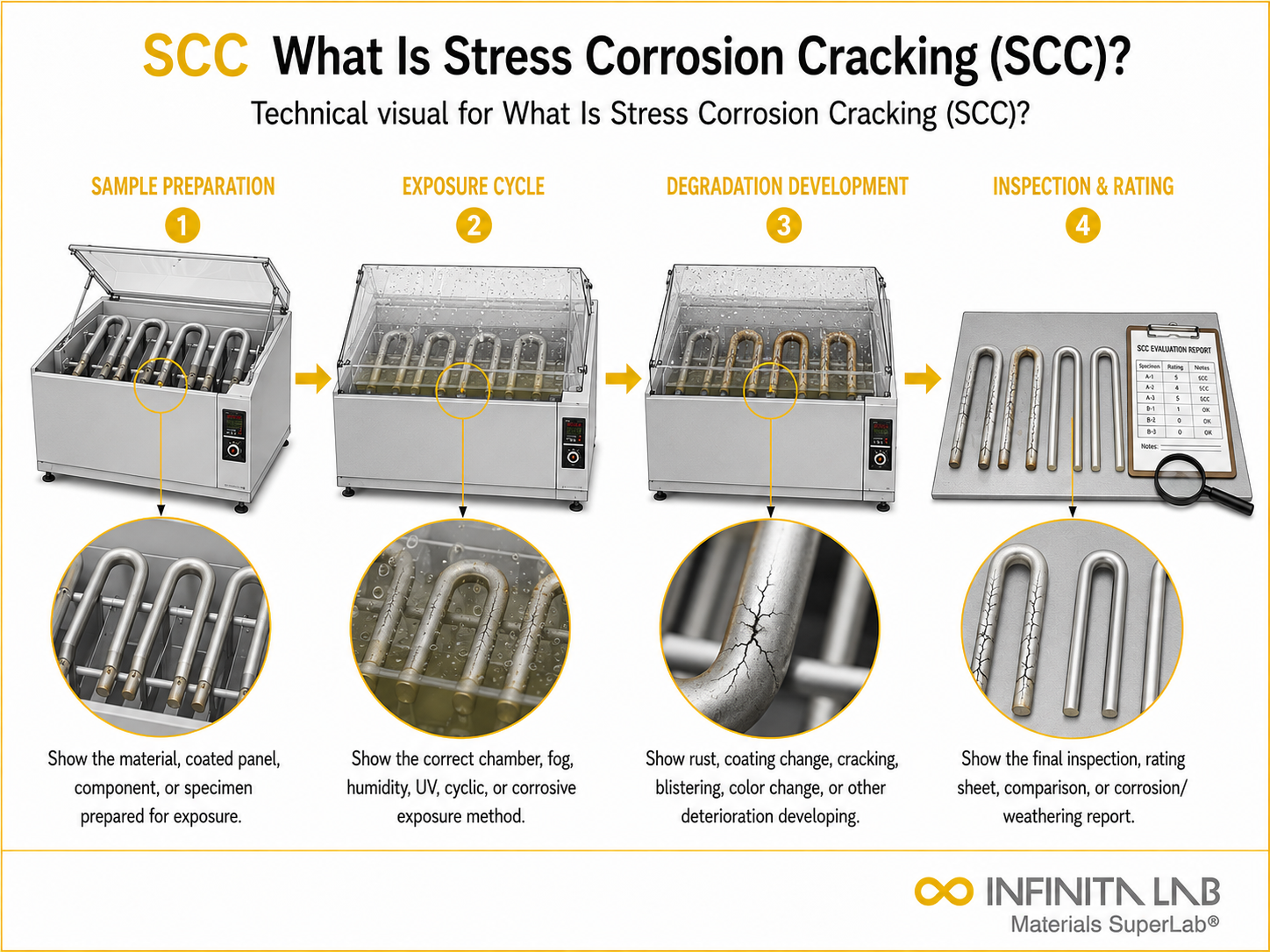

ASTM G38 / G39 / G30 — C-Ring, Bent-Beam, U-Bend Specimens

Self-stressed specimens loaded by bolt (C-ring), deflection (bent beam), or 180° bend (U-bend) provide low-cost, constant-strain exposure coupons for in-plant racks and long-duration environmental exposure. U-bends deliberately include plastic strain and are the most severe of the three.

NACE TM0177 — Sulfide Stress Cracking

The qualification standard for sour (H₂S) oilfield service: Method A tensile at constant load, Method B bent beam, Method C C-ring, and Method D DCB for K_ISSC. Required for materials certified to NACE MR0175/ISO 15156.

ASTM E1681 / ASTM G168 — K_ISCC Determination

Fracture-mechanics testing of pre-cracked (bolt-loaded compact or DCB) specimens establishes the threshold stress intensity K_ISCC below which SCC does not propagate — the input for damage-tolerant design and inspection-interval setting on fracture-critical components.

Prevention of Stress Corrosion Cracking

Prevention removes one leg of the stress–material–environment triangle:

• Material selection — duplex stainless steels or 6% Mo/nickel alloys instead of 304/316 in hot chlorides; overaged T7 tempers instead of T6 for 7xxx aluminium; hardness control ≤22 HRC for sour service
• Stress reduction — post-weld heat treatment, avoiding cold-work in the finished condition, generous radii at stress concentrations
• Compressive surface stress — shot peening or laser peening to keep surfaces below the SCC threshold
• Environment control — chloride limits in insulation and process water, temperature control, oxygen scavenging, inhibitors
• Barrier protection — coatings on splash-zone and under-insulation surfaces; cathodic protection where applicable (with care — overprotection generates hydrogen and can cause HAC in high-strength steels)

Also Read – Pitting & Crevice Corrosion Testing: Challenges, Methods & Solutions

Conclusion

SCC is dangerous precisely because each ingredient looks harmless in isolation: service stress below yield, an environment that causes little general corrosion, and a standard alloy. Managing it means knowing the susceptible material–environment pairs for your application, qualifying materials with the right test — screening by G36 or SSRT, thresholds by constant-load or K_ISCC methods, sour service by NACE TM0177 — and designing out one leg of the triangle through material, stress, or environment control.
