Pre-Startup Corrosion Prevention and Hydrostatic Testing for Pipelines

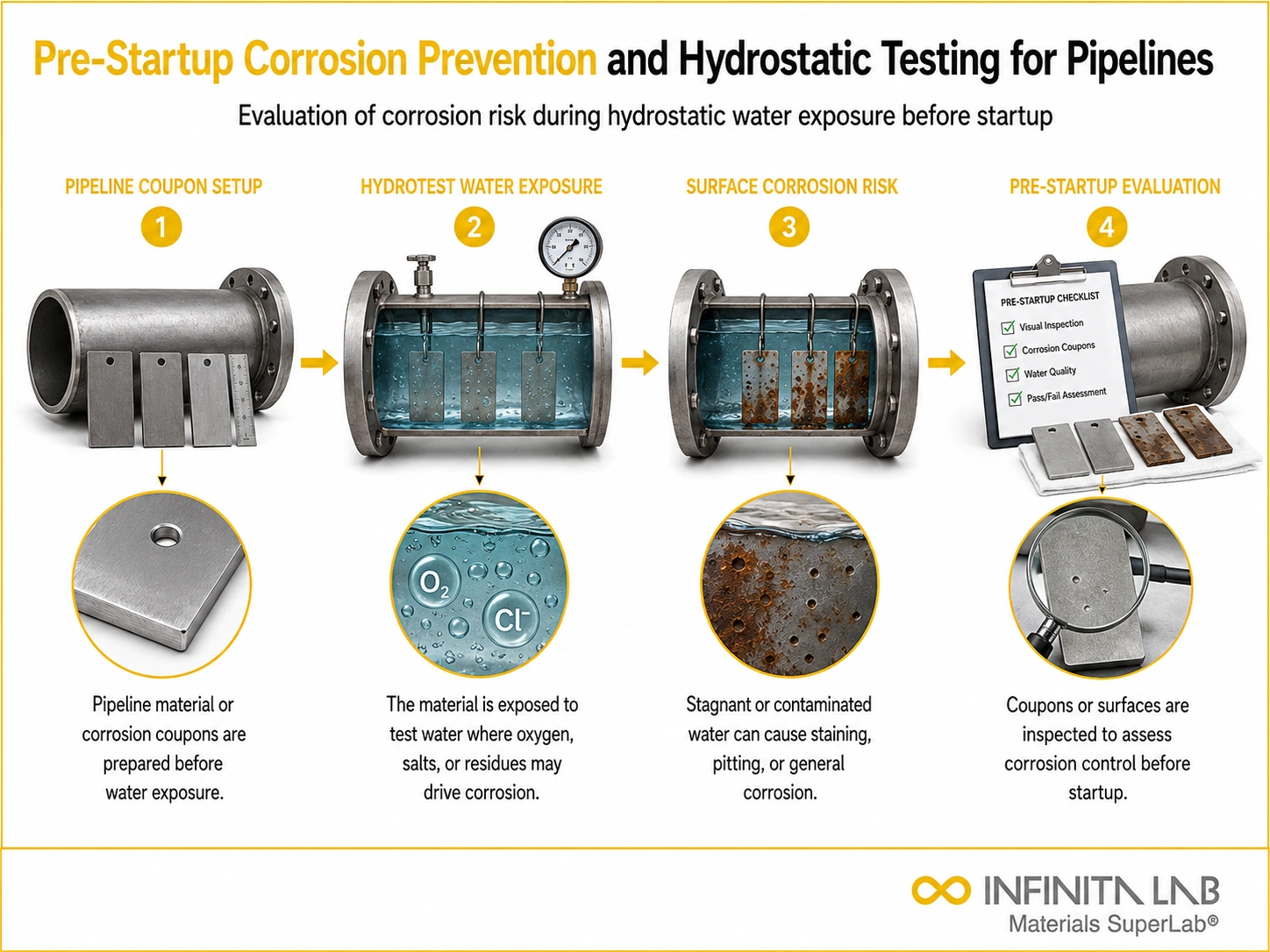

Pre-startup hydrostatic pressure testing on pipeline section for corrosion and leak assessmentWhat Is Pre-Startup Corrosion Prevention?
Pre-startup corrosion prevention encompasses the chemical and physical treatments applied to metallic piping systems, pressure vessels, heat exchangers, and storage tanks during construction, commissioning, and pre-commissioning phases — before the system enters normal service. During construction, metallic equipment surfaces are exposed to moisture, oxygen, mill scale, weld deposits, and construction soils that accelerate corrosion and create conditions for early-life degradation.
Effective pre-startup corrosion control protects capital investment, ensures system cleanliness for first-fill, and establishes corrosion-protective surface conditions that support the long-term integrity program. It is a critical requirement in the oil and gas, power generation, process industry, and marine sectors.
Hydrotesting: Purpose and Corrosion Implications
Hydrostatic testing (hydrotesting) is the primary pressure test method for verifying the mechanical integrity of piping systems and pressure vessels before commissioning—pressurizing the system to a defined test pressure (typically 1.5× design pressure per ASME B31.3) using water as the test medium, and holding the pressure while inspecting for leaks and deformations.
While hydrotesting is essential for safety verification, it introduces significant corrosion risk if not properly managed:
- Mill scale activation: Residual mill scale on carbon steel interior surfaces is cathodic relative to bare steel — creating galvanic corrosion cells when wetted
- Microbially influenced corrosion (MIC): Stagnant hydrotest water retained after testing supports bacterial growth, particularly sulfate-reducing bacteria (SRB) that create localized pitting
- Crevice corrosion: Water trapped in crevices, dead legs, and low points after testing creates oxygen-depleted crevice environments — ideal conditions for crevice corrosion in stainless steels and nickel alloys
- Chloride stress corrosion cracking: Seawater or high-chloride hydrotest water can cause rapid SCC in austenitic stainless steel systems — potentially catastrophic
Hydrotest Water Quality Requirements
Parameter | Carbon Steel | Austenitic Stainless Steel |
Chloride (max) | 50 ppm | <50 ppm (prefer <25 ppm) |
pH | 6.5–8.5 | 6.5–8.5 |
Oxygen (max) | As low as practical | <50 ppb for sensitive alloys |
Inhibitor | Filming amine or nitrite | System-specific |
Biocide | Recommended | Required |
Pre-Startup Corrosion Prevention Treatments
Chemical Passivation
Stainless steel, duplex stainless, and nickel alloy equipment is chemically passivated before commissioning — typically with 10–25% nitric acid or citric acid solution (per ASTM A380) to remove iron contamination from fabrication and develop a stable, chromium-enriched passive film. Passivation restores the material’s full corrosion resistance after welding, grinding, and mechanical fabrication, which depletes the passive layer.
Pre-Commissioning Flushing and Cleaning
Piping systems are flushed with high-velocity water to remove construction debris, weld slag, and mill scale before hydrotesting. Turbulent flushing (minimum velocity 1.5 m/s for carbon steel) is specified by NACE SP0106 and client procedures.
Nitrogen Blanketing and Dehumidification
After hydrotesting, systems are dried using hot nitrogen purge, heated air, or desiccant dehumidification to remove residual water before lay-up or pre-commissioning. Dry nitrogen blanketing at slight positive pressure prevents oxygen and moisture ingress during lay-up periods, effectively arresting corrosion.
Corrosion Inhibitor Treatment
For carbon steel systems that must remain water-filled during lay-up, inhibitor treatment (filming amines, nitrites, or molybdate-based inhibitors) is applied to the hydrotest water to form protective surface films. Regular monitoring of inhibitor concentration ensures maintenance of the protective dose.
Conclusion
Pre-startup corrosion prevention and properly managed hydrotesting are the first line of defense in a system’s corrosion management lifecycle. Failures to control hydrotest water quality, complete adequate passivation, or properly dry and preserve equipment after testing have caused costly early-life corrosion failures in virtually every process industry — proving that commissioning-phase corrosion control is not an administrative formality but a technically rigorous engineering requirement.
Why Choose Infinita Lab for Corrosion Testing and Materials Analysis?
Infinita Lab is a trusted USA-based testing laboratory offering corrosion testing, water quality analysis, passivation verification, and materials characterization services across an extensive network of accredited facilities. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the maximum allowable chloride concentration for hydrotesting austenitic stainless steel? Most project specifications and NACE guidelines limit chloride to <50 ppm for austenitic stainless steel — some specifications require <25 ppm for duplex or higher-alloy systems. Seawater must never be used without treatment. Chloride testing of hydrotest water by ion chromatography or titration before introduction is mandatory on critical stainless systems.
What is passivation per ASTM A380 and when is it required? ASTM A380 defines cleaning, descaling, and passivation procedures for stainless steel — including nitric acid, citric acid, and electropolishing methods. Passivation removes free iron contamination deposited during fabrication (welding, cutting, grinding with non-dedicated tools) and regenerates the chromium oxide passive film. It is required after any fabrication that disrupts the passive surface.
How is microbially influenced corrosion (MIC) prevented in hydrotest systems? MIC prevention requires biocide addition to hydrotest water (glutaraldehyde, DBNPA, or oxidizing biocides) at treated concentrations, combined with rapid drainage and drying after testing. SRB survive in stagnant water retained in dead legs and low points — pre-startup piping design with adequate drain points and post-test drying protocols are the primary MIC prevention measures.
What is the significance of drying after hydrotesting for system lay-up? Residual water after hydrotesting creates active corrosion cells on carbon steel and concentrated chloride environments on stainless steel. Drying to below the corrosion threshold dew point — typically <40% RH at the metal surface — and blanketing with dry nitrogen or dry air preserves the clean, passivated internal surface during lay-up periods of months to years.
What tests verify the effectiveness of pre-startup passivation of stainless steel? Passivation effectiveness is verified by the copper sulfate test (ASTM A967, Method C) — copper sulfate solution applied to the passivated surface should not plate copper onto a properly passivated stainless surface. XPS surface analysis can quantify the Cr/Fe ratio of the passive film — a Cr-enriched ratio confirms effective passivation. Water break-free wetting behavior also indicates clean, passive surfaces.
