Selecting Test Methodology for 13Cr Oil Tubular: Corrosion & Sour Service

In the demanding environments of oil and gas production — high-pressure wellbores containing CO₂, H₂S, chloride-laden brines, and elemental sulfur — the selection of tubing and casing materials is a safety-critical engineering decision. 13Cr-type stainless steels are among the most widely used alloys for Oil Country Tubular Goods (OCTG) in these environments, offering a favorable balance of corrosion resistance, mechanical strength, and cost. But selecting the appropriate grade and qualifying it for a specific well environment requires a methodical approach to testing and evaluation.

What Are 13Cr-Type Alloys?

The 13Cr designation refers to a family of martensitic stainless steels containing approximately 13% chromium. The chromium content provides corrosion resistance in CO₂-bearing environments by forming a passive oxide film on the steel surface. Within this family, several grades exist:

• Standard 13Cr (API 13Cr): The foundational grade, suitable for sweet service (CO₂-containing, H₂S-free or low-H₂S) environments
• Modified 13Cr (13Cr-5Mo, 13Cr-5Ni): Enhanced corrosion resistance and toughness through molybdenum and nickel additions — suitable for higher-temperature, higher-chloride, or mildly sour environments
• Super 13Cr: Further alloyed compositions providing superior SSC resistance and CO₂ corrosion resistance at elevated temperatures

Grade selection depends on the specific combination of temperature, CO₂ partial pressure, H₂S partial pressure, chloride concentration, pH, and elemental sulfur content that characterizes the production environment.

Methodology Selection Framework

Selecting the correct test methodology for 13Cr-type OCTG requires a structured approach that aligns the testing scope with the well environment, failure risks, and applicable standards.

Step 1: Characterize the Well Environment

The first input to methodology selection is a comprehensive characterization of the target well environment:

• Temperature: Surface and bottomhole temperature profile
• CO₂ partial pressure (pCO₂): Primary driver of general corrosion risk
• H₂S partial pressure (pH₂S): Determines SSC (sulfide stress cracking) and SCC risk
• Chloride concentration: Affects passive film stability and pitting susceptibility
• pH: Controls corrosion mechanism and regime
• Elemental sulfur presence: Highly aggressive agent for 13Cr alloys

Step 2: Apply the Appropriate Corrosion Regime Classification

The NACE MR0175/ISO 15156 standard provides the framework for material selection in H₂S-containing (sour) environments. For 13Cr alloys, the standard defines acceptable limits of H₂S partial pressure, temperature, and chloride concentration within which specific grades can be used without risk of SSC.

For CO₂-dominated (sweet) environments, ISO 15156 is supplemented by company- or project-specific corrosion prediction models — such as de Waard-Milliams or Norsok M-506 — that predict general corrosion rates based on pCO₂, temperature, and fluid velocity.

Step 3: Select Applicable Test Standards

Based on the well environment classification, the appropriate test methods are selected:

For SSC Testing:

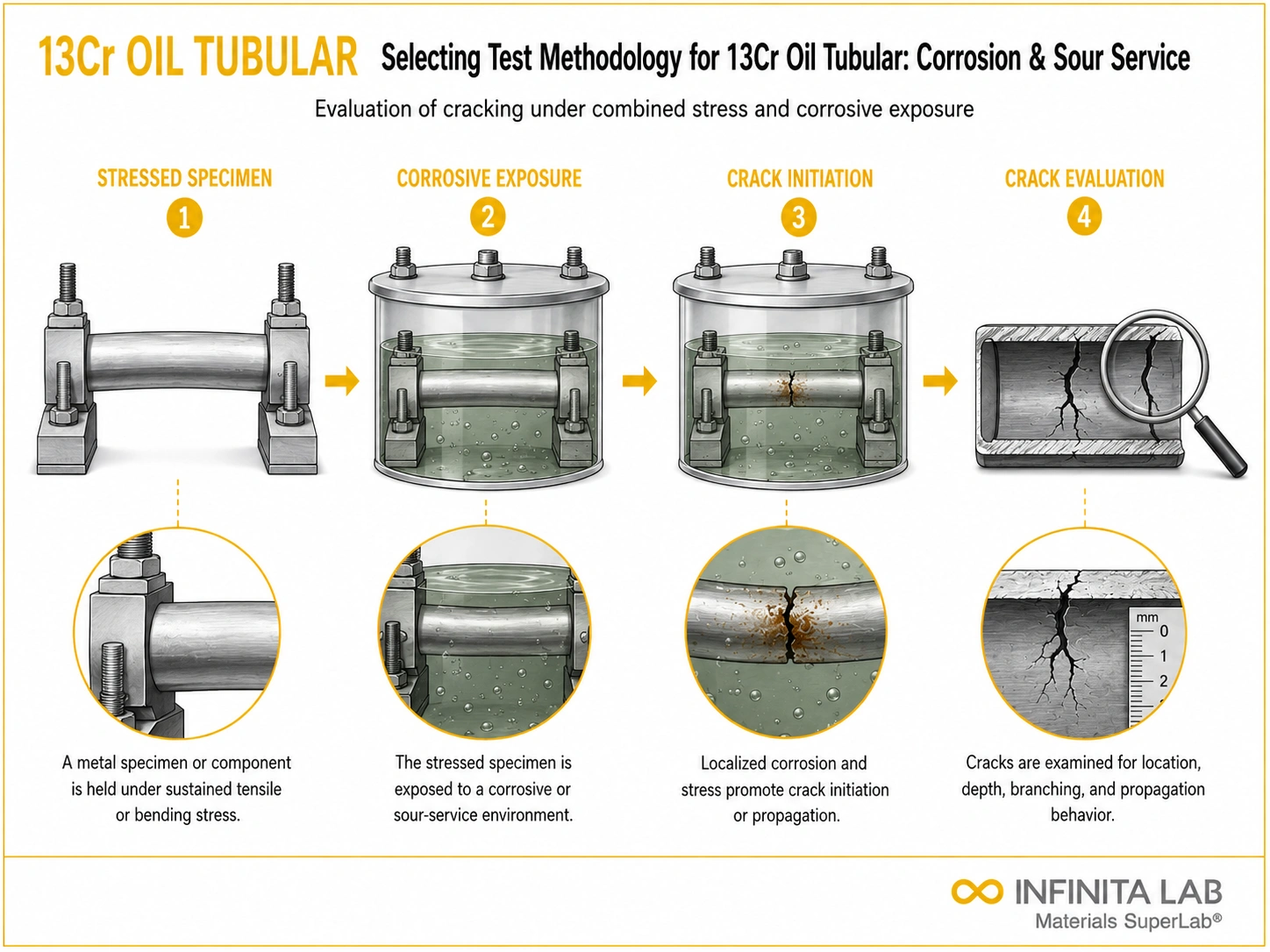

• NACE TM0177 Method A (Tensile Test): Loaded tensile specimens immersed in NACE Solution A (H₂S/brine) — measures threshold stress below which SSC does not occur
• NACE TM0177 Method D (Double Cantilever Beam / DCB): Fracture mechanics approach providing KISSC (threshold stress intensity factor for SSC)
• NACE TM0177 Method B (Bent Beam Test): Constant strain specimens in sour solution — simplified screening method

For SCC Testing:

• NACE TM0177 / ISO 15156 SCC tests: For chloride SCC at elevated temperature — applicable to modified and super 13Cr grades at higher temperatures
• ASTM G36 / G48: Pitting and crevice corrosion testing in chloride media

For General Corrosion Rate Measurement:

• Autoclave immersion testing at representative temperature, pCO₂, and brine chemistry — weight loss and pit depth measurement per ASTM G31 and ASTM G46
• Electrochemical methods (LPR, EIS): Real-time corrosion rate measurement during autoclave exposure

For Mechanical Property Verification:

• Tensile testing (ASTM A370, API 5CT): Yield strength, tensile strength, elongation
• Hardness testing (Rockwell, Vickers): Compliance with NACE MR0175 maximum hardness limits (22 HRC maximum for standard 13Cr in sour service)
• CVN Impact Testing: Toughness verification for low-temperature service

Step 4: Interpret Results in Context

Test results are interpreted in the context of the specific well environment — a material that passes SSC testing under NACE Solution A conditions may not be qualified for environments with higher H₂S concentrations or elevated temperatures. Conversely, the conservatism of NACE Solution A testing may lead to the conservative exclusion of some alloys that would perform adequately under less aggressive real-world conditions.

Industries and Applications

13Cr OCTG material qualification is critical for offshore platform completions, deep gas well completions, CO₂ injection wells, and enhanced recovery operations — wherever corrosive produced fluids contact tubing and casing strings.

Conclusion

Selecting and qualifying 13Cr-type alloys for OCTG applications requires a systematic approach that integrates environmental characterization, standard-based testing, and expert interpretation of corrosion and mechanical performance data. By applying appropriate methodologies such as SSC, SCC, and corrosion testing under representative conditions, engineers can ensure material suitability, prevent failure in harsh oil and gas environments, and achieve safe, reliable long-term well operation.
