Weld Testing Standards: A Complete Guide
What Is Weld Testing?

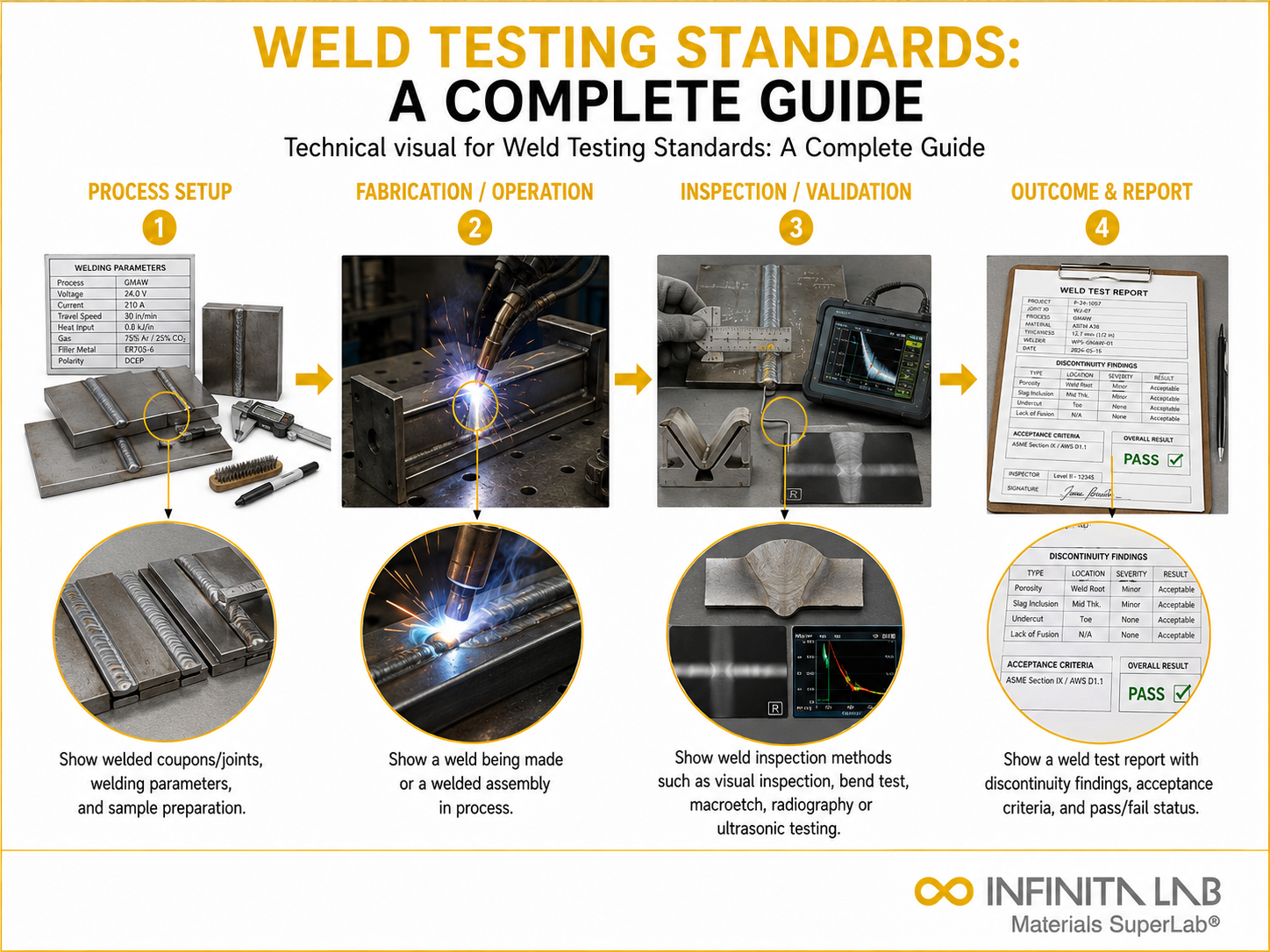

Weld testing evaluates the integrity, quality, and mechanical performance of welded joints to confirm they meet design requirements and applicable codes. It covers two broad categories: destructive testing, which mechanically loads or sections the weld to measure properties directly, and non-destructive testing (NDT), which evaluates the weld without damaging it. Both are required in structural, pressure vessel, pipeline, and aerospace fabrication – destructive testing during procedure and welder qualification, NDT during production to inspect completed welds.
The applicable weld testing standard is determined by the industry and the weld type. Pressure vessel work follows ASME BPVC Section IX for procedure qualification and Section V for NDT methods. Pipeline work follows AWS D1.1 or API 1104. Structural steel follows AWS D1.1. Aerospace follows AWS D1.2 (aluminum) or customer-specific requirements. Understanding which code governs the fabrication is the first step before selecting any test method.
Destructive Weld Testing Methods
Tensile Testing
Transverse tensile specimens are machined from the welded joint with the weld at the center. The specimen is pulled to failure and ultimate tensile strength is measured. The acceptance criterion is typically that the specimen must meet or exceed the minimum tensile strength of the base metal specification – if the specimen fails in the base metal rather than the weld, it confirms the weld deposit is at least as strong as the parent material. ASME BPVC Section IX and AWS D1.1 both require transverse tension testing as part of welding procedure qualification.
Bend Testing
Guided bend tests fold a weld coupon around a mandrel of defined diameter. Face bends are taken from the weld face side; root bends from the root side; side bends from the cross-section. The bent coupon must show no cracks or open defects above 3 mm in any direction after bending. Bend testing reveals lack of fusion, porosity, and inadequate penetration that tensile testing may miss. It is required for procedure qualification under ASME BPVC Section IX, AWS D1.1, and AWS D1.2.
Macroscopic Examination and Hardness
A cross-section cut from the weld is polished and etched to reveal the weld bead geometry, heat-affected zone (HAZ), fusion line, and any discontinuities – porosity, lack of fusion, cracks, undercut. Macro examination is required for procedure qualification in many codes. Hardness traverses across the weld metal, HAZ, and base metal detect excessive hardness in the HAZ that could indicate hydrogen cracking susceptibility. ASME BPVC Section IX and AWS D1.1 specify macro examination and hardness requirements.
Charpy Impact Testing
Charpy V-notch testing measures the energy absorbed by the weld metal or HAZ at a specified test temperature, verifying adequate toughness for service at low temperatures. The notch is positioned in the weld metal centerline, fusion line, or HAZ at defined distances. AWS D1.1 Annex I and ASME BPVC Section VIII Div. 1 specify impact requirements for low-temperature service. Results are in joules (SI) or foot-pounds (US) at the test temperature. Multiple specimens are tested and averaged per the applicable code.
Non-Destructive Weld Testing Methods
Visual Inspection (VT)
Visual inspection is the first and most fundamental NDT method. It checks weld geometry, surface finish, undercut, overlap, crater cracks, surface porosity, and dimensional conformance against acceptance criteria. AWS D1.1 Table 6.1 defines visual acceptance criteria for structural welds. Visual inspection is required on all production welds before any other NDT method is applied – surface defects must be identified and addressed before volumetric inspection.
Radiographic Testing (RT)
Radiography uses X-ray or gamma ray radiation to produce an image of the weld cross-section on film or a digital detector. Internal defects – porosity, slag inclusions, lack of fusion, cracks – appear as density variations on the radiograph. RT is particularly effective for detecting volumetric defects in groove welds. ASME BPVC Section V Article 2 governs RT procedures; acceptance criteria are in the applicable construction code (ASME Section VIII, B31.3, AWS D1.1). RT requires radiation safety controls and cannot be performed on all joint configurations.
Ultrasonic Testing (UT)
Ultrasonic testing uses high-frequency sound waves introduced into the weld to detect internal reflectors. Conventional UT uses an angle beam transducer scanning the weld from the base metal surface. Phased array UT (PAUT) uses an array of elements that can steer and focus the beam electronically, improving coverage and detection capability. TOFD (time of flight diffraction) provides accurate flaw sizing. ASME BPVC Section V Article 4 governs UT procedures. UT is preferred over RT for thick sections and where radiation is impractical.
Magnetic Particle and Liquid Penetrant Testing
Magnetic particle testing (MT) detects surface and near-surface defects in ferromagnetic materials by applying a magnetic field and iron particles that concentrate at flux leakages caused by defects. Liquid penetrant testing (PT) detects surface-breaking defects in any material by applying a penetrant that wicks into cracks, removing the excess, and applying a developer that draws the penetrant out for visual detection. Both are governed by ASME BPVC Section V Articles 6 and 6 respectively. MT and PT are required on root passes and final cover passes in many pressure vessel and pipeline codes.
Industry Specifications
- Structural Steel Welding: AWS D1.1 (structural steel), AWS D1.2 (aluminum), AWS D1.6 (stainless steel)
- Pressure Vessels: ASME BPVC Section IX (procedure and welder qualification), Section V (NDT), Section VIII (construction)
- Pipelines: API 1104 (pipeline welding), ASME B31.3 (process piping), ASME B31.1 (power piping)
- Aerospace: AWS D17.1 (fusion welding for aerospace), AMS 2680, MIL-STD-1595
- NDT Personnel Qualification: ASNT SNT-TC-1A, ISO 9712, ASME BPVC Section V
- Radiography and UT: ASME BPVC Section V Articles 2, 4, 6; ASTM E1316 (terminology)
Also Read – Ultimate Guide to Hydrostatic Pressure Testing: Methods, Standards & Safety
Conclusion
Weld testing is not a single method – it is a program of destructive tests during procedure and welder qualification and NDT during production. Destructive testing establishes that the welding procedure produces joints with the required tensile strength, ductility, toughness, and microstructure. NDT confirms that production welds are free of rejectable discontinuities. The applicable code determines which tests are required, what the acceptance criteria are, and what personnel qualifications are needed for both welders and inspectors.
What is the difference between a welding procedure specification and a procedure qualification record? A welding procedure specification (WPS) is the documented instruction that tells the welder how to make a specific weld - process, base metal, filler metal, preheat, interpass temperature, joint geometry, travel speed, and other essential variables. A procedure qualification record (PQR) is the test record that proves the WPS produces welds meeting the code requirements - it documents the actual parameters used during the qualification test and the test results. The WPS references the supporting PQR. Both are required under ASME BPVC Section IX and AWS D1.1 before production welding begins.
When is RT preferred over UT for weld inspection? RT is preferred for thin-section welds where UT dead zones near the surface would mask defects, for weld configurations where UT beam access is limited, and when a permanent visual record of the weld interior is required. UT is preferred for thick sections (above 50 mm where RT sensitivity decreases), for welds where radiation safety control is impractical, and when flaw sizing accuracy is needed. PAUT and TOFD are increasingly replacing RT in pipeline and pressure vessel inspection because they provide equivalent or better detection without radiation hazards and with digital records.
What is hydrogen cracking and how does weld testing detect it? Hydrogen cracking (cold cracking, delayed cracking) occurs in the HAZ or weld metal of higher-strength or hardenable steels when three conditions are simultaneously present: hydrogen in the weld, a susceptible microstructure (martensite), and tensile stress. Cracks may not appear until hours or days after welding. Post-weld NDT delay requirements in ASME and AWS codes - typically 24-48 hours before final NDT - exist to allow hydrogen cracks to develop and be detected. MT or PT detects surface cracks; UT detects subsurface cracks. Hardness testing detects excessive HAZ hardness that indicates susceptibility.
What discontinuities are acceptable in structural welds per AWS D1.1? AWS D1.1 Table 6.1 defines visual acceptance criteria: undercut is limited to 1 mm for primary members, porosity is limited by size and distribution tables, cracks of any size are rejectable, and incomplete fusion or penetration are rejectable in complete joint penetration (CJP) welds. RT and UT acceptance criteria differ for statically and cyclically loaded structures. Cyclically loaded structures have tighter acceptance criteria because small defects that are acceptable under static loading can initiate fatigue cracks under repeated loading.
How are welders qualified under ASME BPVC Section IX? Welder performance qualification (WPQ) requires the welder to make a test weld using a qualified WPS, which is then tested by bend testing (or RT in lieu of bend for some positions). The WPQ establishes the range of variables the welder is qualified for - process, position, base metal thickness range, filler metal type. Qualification in one position does not automatically qualify the welder in all positions - the position tested and the positions qualified are defined in ASME Section IX QW-461. Welder qualification expires if the welder has not used the process for more than 6 months.
