Ultrasonic Weld Testing: Acceptance Criteria and Standards

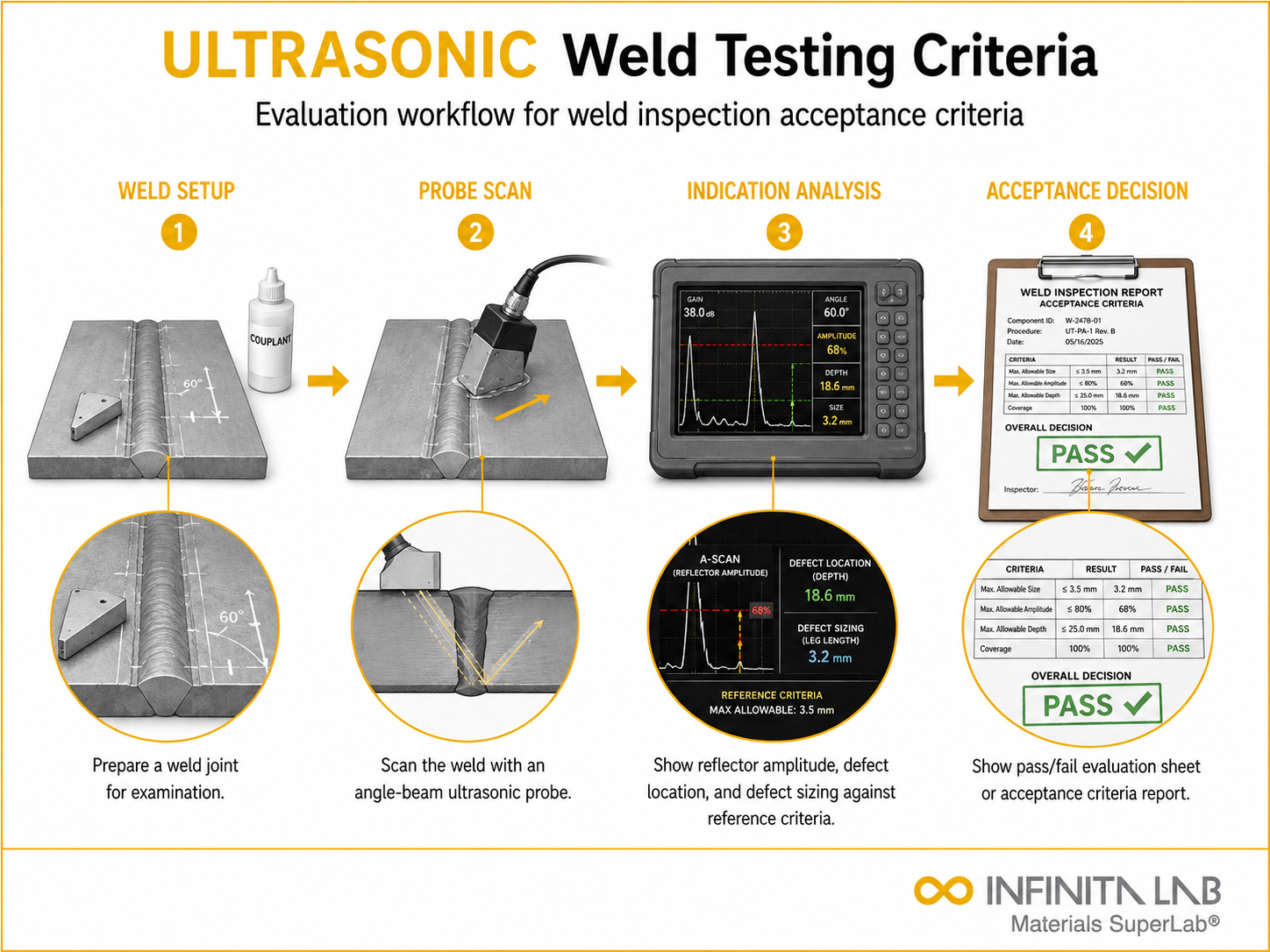

Representative Infinita Engineering Visual explaining the four-step workflow for Ultrasonic Weld Testing Criteria.What Are Ultrasonic Weld Testing Acceptance Criteria?
Ultrasonic weld testing acceptance criteria define the threshold at which a detected discontinuity in a weld is judged acceptable or rejectable, based on the amplitude, length, and location of the ultrasonic signal reflected from the flaw. AWS D1.1, the Structural Welding Code — Steel, is the primary governing standard for structural weld acceptance in North America, alongside ASME Section V and ISO 11666 for pressure equipment and general industrial applications.
Amplitude/Length Method (Conventional UT)
For statically loaded connections, AWS D1.1 Table 8.2 uses an amplitude/length evaluation method — one of the few places the code still relies on an older amplitude-based scheme rather than a modern flaw-sizing approach. A discontinuity’s reflected signal amplitude is compared against a calibrated reference level, and its length is measured using the 6 dB drop technique: the flaw’s length is defined by the distance between the two points where the signal amplitude falls to half (6 dB down) of its peak value.
Phased Array Acceptance Criteria (PAUT)
The 2020 edition of AWS D1.1 added Annex H, providing explicit acceptance criteria for phased array ultrasonic testing (PAUT) as an alternative to conventional amplitude/length UT — now widely adopted by fabricators for thicker welds, where PAUT’s electronic beam steering and full B-scan/C-scan documentation provide clearer flaw characterisation than a single A-scan trace.
Equipment Calibration Requirements
- Equipment must be pulse-echo type “A” scan, suitable for transducers operating between 1-6 MHz
- A valid, current calibration certificate is required for the test equipment
- Gain control must be adjustable in discrete 1 or 2 dB steps over a range of at least 60 dB
- Calibration is performed against reference blocks with known artificial discontinuities (such as the IIW Type 1 block) before testing begins
Inspector Qualification
AWS D1.1 requires ultrasonic testing personnel to be qualified per ASNT SNT-TC-1A or an equivalent written practice, typically at Level II or higher, demonstrating competency through formal training, written examination, and practical hands-on testing. The code distinguishes between the Contractor’s Inspector (employed by the fabricator) and the Verification Inspector (employed by the owner or a third-party agency), with both roles requiring separate qualification.
Industry Specifications Referencing Ultrasonic Weld Acceptance Criteria
- AWS D1.1: primary structural steel welding code, Table 8.2 and Annex H
- AWS D1.5: bridge welding code, adopted PAUT acceptance criteria in 2015
- ASME Section V, ISO 11666: pressure equipment and general industrial flaw-sizing standards
Also Read – Ultimate Guide to Hydrostatic Pressure Testing: Methods, Standards & Safety
Conclusion
Acceptance criteria only mean something in the context of the calibration and qualification behind them — a discontinuity judged “acceptable” under properly calibrated, correctly qualified UT is a genuinely different claim than the same call made on uncalibrated equipment or by an unqualified operator, which is why AWS D1.1 spends as much text on equipment and personnel requirements as it does on the acceptance tables themselves.
How are ultrasonic weld indications evaluated? Indications are evaluated using characteristics such as signal amplitude, length, position, depth, orientation, and response during probe movement. The inspector compares these characteristics with a calibrated reference level and the acceptance criteria specified by the governing code, drawing, contract, or inspection procedure. A strong signal does not automatically mean that the weld must be rejected.
What are the acceptance criteria for ultrasonic weld testing? Acceptance criteria define which ultrasonic indications are acceptable and which require rejection, repair, or further evaluation. The limits may be based on indication amplitude, length, position, weld thickness, defect type, or calculated flaw dimensions. There is no single acceptance limit for every weld because the applicable criteria depend on the component, service conditions, material, weld design, and construction code.
Does ASTM E164 provide weld acceptance criteria? ASTM E164 primarily describes contact ultrasonic testing practices for detecting weld discontinuities in certain ferrous and aluminum-alloy weldments. It provides guidance on equipment, calibration, scanning, and examination techniques, but the applicable product specification, contract, or construction code must generally establish the acceptance criteria. The current ASTM listing identifies ASTM E164-24 as the standard practice for contact ultrasonic testing of weldments.
How are ASME requirements applied to ultrasonic weld inspection? For boilers, pressure vessels, and piping, ASME Boiler and Pressure Vessel Code Section V, Article 4 provides requirements for ultrasonic examination methods for welds. Section V generally establishes how the examination is performed, while the applicable construction section—such as an ASME pressure-vessel or piping code—provides the acceptance standards. Inspectors must therefore use the examination and acceptance sections together.
Are all ultrasonic indications considered weld defects? No. An indication is any response detected by the ultrasonic equipment, but it is not automatically a rejectable defect. Responses may come from weld geometry, the root profile, backing bars, surface conditions, grain structure, or harmless reflectors. The inspector must determine whether the signal represents a relevant discontinuity and then compare it with the applicable acceptance criteria.
