Ultrasonic Weld Flaw Detection: Defects and Techniques

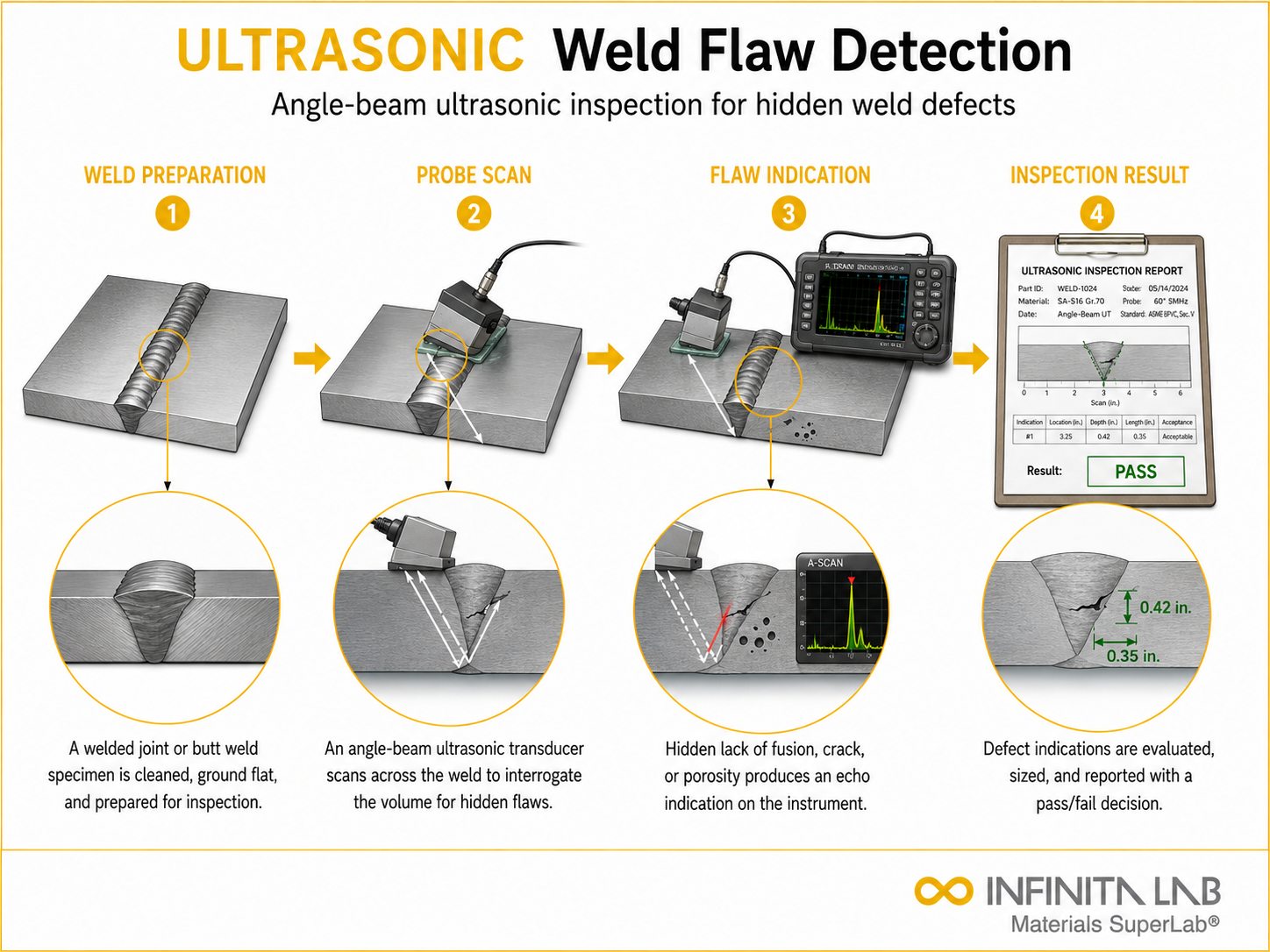

Representative Infinita Engineering Visual explaining the four-step workflow for Ultrasonic Weld Flaw Detection.What Is Ultrasonic Weld Flaw Detection?
Ultrasonic weld flaw detection uses high-frequency sound waves to locate and characterize internal weld discontinuities — lack of fusion, porosity, slag inclusions, and cracks — that are invisible to surface inspection methods. Conventional shear-wave UT and modern phased array ultrasonic testing (PAUT) are the two dominant scanning approaches, each suited to different defect orientations and weld geometries.
Conventional Shear-Wave UT
A single-element transducer generates a shear wave that travels through the weld at a fixed refraction angle (commonly 40-70 degrees), reflecting off discontinuities back to the transducer as an echo displayed on an A-scan (amplitude versus time). The technician manually rasters the probe across the weld surface, interpreting echo position and amplitude to determine defect type, size, and depth. This method has been standard practice for decades and remains effective, but relies heavily on operator skill in probe manipulation and interpretation.
Phased Array Ultrasonic Testing (PAUT)
PAUT uses a multi-element probe (commonly 16 to 128 elements) that can electronically steer and focus the ultrasonic beam without physically moving the probe, generating sectorial scans that build a cross-sectional image of the weld. Because the beam angle and focus are controlled electronically rather than by probe movement, PAUT scans complete significantly faster than conventional UT and produce a permanent digital record — similar in permanence to radiographic film — that doesn’t require real-time evaluation at the time of scanning.
Scan Types and Defect Sizing
- A-scan: single amplitude-versus-time trace, used in conventional UT
- B-scan: cross-sectional image built from a linear scan path
- C-scan: plan-view image showing defect location across the scan area
- S-scan (sectorial scan): PAUT-specific view showing beam angles swept electronically through a range, producing a fan-shaped cross-section in a single position
- 6 dB sizing technique: flaw length determined by locating the points on either side of peak amplitude where signal drops to half (6 dB down)
Selecting a Scan Configuration
Scan configuration selection depends on the expected defect orientation and joint geometry: planar defects like lack of fusion in narrow-gap welds or lamellar tearing in T-joints are better detected by PAUT or time-of-flight diffraction (TOFD), while volumetric defects like gross porosity or slag clusters are often equally well served by radiography or PAUT.
Industry and Applications
Automated PAUT with encoded scanning is standard practice in pipeline construction, where mechanized welding lines pair internal alignment with an external PAUT head to achieve full volumetric coverage at production weld cycle times. Structural steel fabrication under AWS D1.1 Annex H and bridge welding under AWS D1.5 have both adopted PAUT as an accepted alternative to conventional UT for qualified procedures.
Also Read – Ultimate Guide to Hydrostatic Pressure Testing: Methods, Standards & Safety
Industry Specifications Referencing Ultrasonic Weld Flaw Detection
- AWS D1.1 Annex H, AWS D1.5: PAUT-specific structural and bridge welding provisions
- ISO 17640, ISO 13588: PAUT weld inspection and defect sizing standards
- DNV-ST-F101: pipeline construction standard requiring automated PAUT coverage
Conclusion
The choice between conventional UT and PAUT for weld flaw detection comes down to defect orientation risk and production speed requirements — PAUT’s electronic steering and permanent digital record make it the increasingly preferred choice wherever thicker welds, higher production rates, or documented traceability are required.
Can ultrasonic testing detect all types of flaws in welds? UT is highly effective for detecting internal flaws like cracks and voids but may struggle with surface defects, which are better detected using complementary methods like magnetic particle inspection or dye penetrant testing.
What are the limitations of ultrasonic testing? UT requires skilled operators for accurate interpretation, is less effective on irregularly shaped components, and, due to sound attenuation, may not detect defects in coarse-grained materials.
How often should welds be inspected using ultrasonic testing? Some variables affect how frequently inspections are conducted, including the structure's criticality, operational circumstances, and legal requirements. While specific components may require initial testing, high-risk components may require recurrent inspections.
What is time-of-flight diffraction testing? Time-of-flight diffraction, or TOFD, uses separate transmitting and receiving probes positioned on opposite sides of a weld. The method measures diffracted sound from flaw tips rather than relying mainly on reflected amplitude. TOFD is highly effective for detecting and sizing cracks and other planar flaws through the weld thickness.
How are weld flaw indications confirmed? Inspectors evaluate signal amplitude, location, sound path, probe movement, and response from different scanning directions. Suspected flaws may be rescanned with another probe angle or technique to confirm their position and orientation. Phased array, TOFD, radiography, surface NDT, or destructive sectioning may also be used when additional verification is required.
