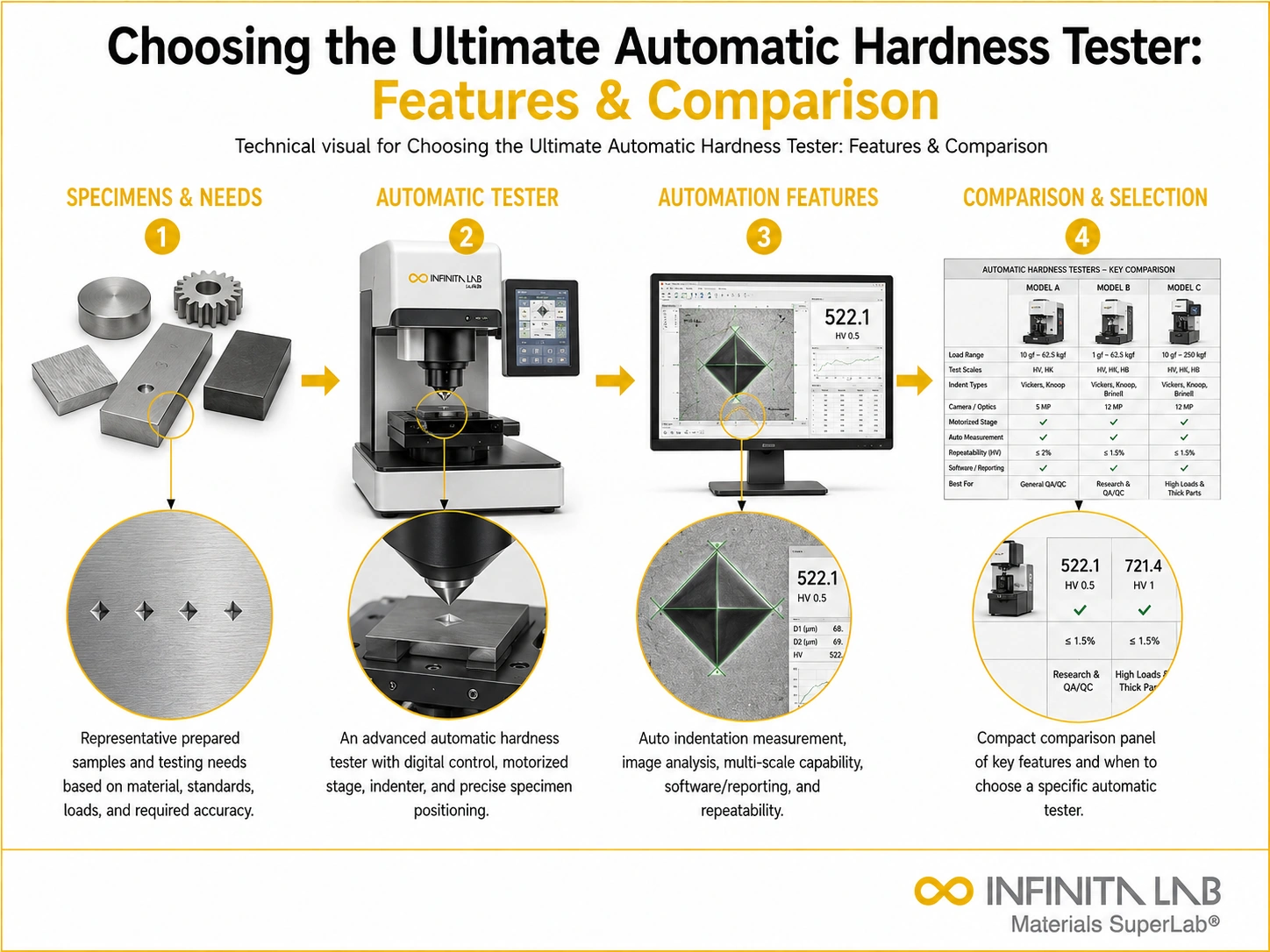

Choosing the Ultimate Automatic Hardness Tester: Features & Comparison
Introduction to Ultimate Automatic Hardness Testing
In the demanding world of modern manufacturing and quality assurance, hardness testing has evolved from a manual, operator-dependent operation to a fully automated, data-driven process. Ultimate automatic hardness testers represent the pinnacle of this evolution — combining high-accuracy force control, advanced optical imaging, motorised multi-axis stages, intelligent test management software, and seamless integration with quality systems to deliver the fastest, most reproducible, and most comprehensive hardness characterisation available.
These systems are transforming hardness testing across the aerospace, automotive, tooling, bearing, and precision-machined components industries.
What Defines an “Ultimate” Automatic Hardness Testing System?
Multi-Method Hardness Measurement in One Instrument
The most advanced automatic hardness testers integrate Rockwell (all scales per ASTM E18), Vickers (all loads from 10 gf to 100 kgf per ASTM E384), Knoop (all loads per ASTM E384), and Brinell (all load/ball combinations per ASTM E10) capabilities within a single instrument. Automated indenter turret systems switch between indenters without manual intervention — enabling mixed-method test programmes on a single specimen without removing it from the stage.
Closed-Loop Servo Load Control
Precise servo-controlled loading systems apply forces with accuracy of ±0.5% throughout the full load range — meeting the most stringent ASTM E18, E384, and E10 calibration requirements. Load application rate is controlled to defined ramp profiles, eliminating dynamic overload effects that manual testing can introduce.
High-Resolution Automated Optical Measurement
Motorised optical systems with resolutions down to 0.01 µm measure Vickers and Brinell indentation diagonals and diameters with sub-micrometre precision. Automated image analysis algorithms detect indentation edges, calculate diagonal lengths, and compute hardness values without operator interpretation — eliminating the largest source of variability in traditional microhardness testing.
Motorised XY Stage with Automated Positioning
Precision motorised XY stages with position repeatability of ±1 µm execute complex hardness mapping programmes, case depth profiles, and grid surveys completely automatically. Stage loading capacity accommodates large, heavy specimens, including engine blocks, gearbox cases, and aerospace forgings.
Automated Case Depth Measurement
For heat-treated components, the system automatically performs complete case depth profiles — positioning specimens, making indentations at programmed spacing from the surface to the core, measuring each indentation, and calculating effective case depth (EHD) per ASTM E1849 or SAE J423 — without operator intervention during the test.
Software Integration and Data Management
Test management software stores specimen data, test programmes, and results in structured databases with full traceability. Integration with ERP/MES systems through SECS/GEM, OPC-UA, or database APIs enables paperless quality records and real-time SPC monitoring. Automated report generation produces standardised test certificates compliant with customer and regulatory requirements.
Comparison: Manual vs. Semi-Automatic vs. Fully Automatic Hardness Testing
Feature | Manual | Semi-Automatic | Fully Automatic |
Operator involvement | High | Medium | Minimal |
Throughput (tests/hour) | 5–15 | 30–100 | 200–1000+ |
Repeatability (SD) | ±1–2 HV | ±0.5–1 HV | ±0.1–0.3 HV |
Case depth profiling | Slow, manual | Semi-automated | Fully automated |
Data integration | Manual entry | Semi-automated | Full ERP/SPC integration |
Investment | Low | Medium | High |
Industrial Applications of Ultimate Automatic Hardness Testers
In the gear and transmission manufacturing industry, 100% automated hardness inspection of carburised gear teeth profiles verifies case depth and surface hardness conformance per DIN 3990 and AGMA 2001 requirements. In the bearing industry, automated Rockwell mapping of bearing race surfaces detects hardness non-uniformity and validates heat treatment consistency. In aerospace forging qualification, automated Vickers mapping of titanium and aluminium forgings provides spatial hardness data for acceptance documentation.
Conclusion
Ultimate automatic hardness testing systems represent the highest level of precision, repeatability, and throughput in modern materials testing. By combining multi-method hardness capabilities, closed-loop servo load control, high-resolution optical measurement, and fully motorised stage automation, these systems eliminate operator variability and significantly improve testing efficiency.
They are particularly valuable in high-volume production environments, advanced heat treatment verification, case depth profiling, and aerospace-quality material qualification, where traceability and consistency are critical. For industries requiring fast, accurate, and large-scale hardness mapping, these systems provide the most reliable solution available.
Why Choose Infinita Lab for Advanced Hardness Testing?
Infinita Lab is a trusted USA-based testing laboratory offering Advanced Hardness testing services across an extensive network of accredited facilities across the USA.
Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the advantage of closed-loop servo load control? Closed-loop servo control ensures precise force application with high accuracy, typically within ±0.5%, improving test repeatability and compliance with international standards.
Why is automatic optical measurement important? Automated imaging systems eliminate human reading errors by precisely measuring indentation diagonals and diameters using advanced image analysis software.
What is automated case depth profiling? It is a fully programmed hardness mapping sequence that measures hardness from the surface to the core of heat-treated components to determine effective case depth.
What is the typical throughput of a fully automatic system? Depending on the setup, throughput can range from 200 to 1000+ tests per hour, significantly higher than manual systems.
What stage payload can typical fully automatic hardness testers accommodate? High-capacity automatic hardness testing systems accommodate specimens weighing 50–200 kg on their motorised stages, enabling direct testing of large castings, engine blocks, gearbox housings, and aerospace forgings without sectioning.
