Future of Automatic IRHD Hardness Testers

What Is an Automatic IRHD Hardness Tester?

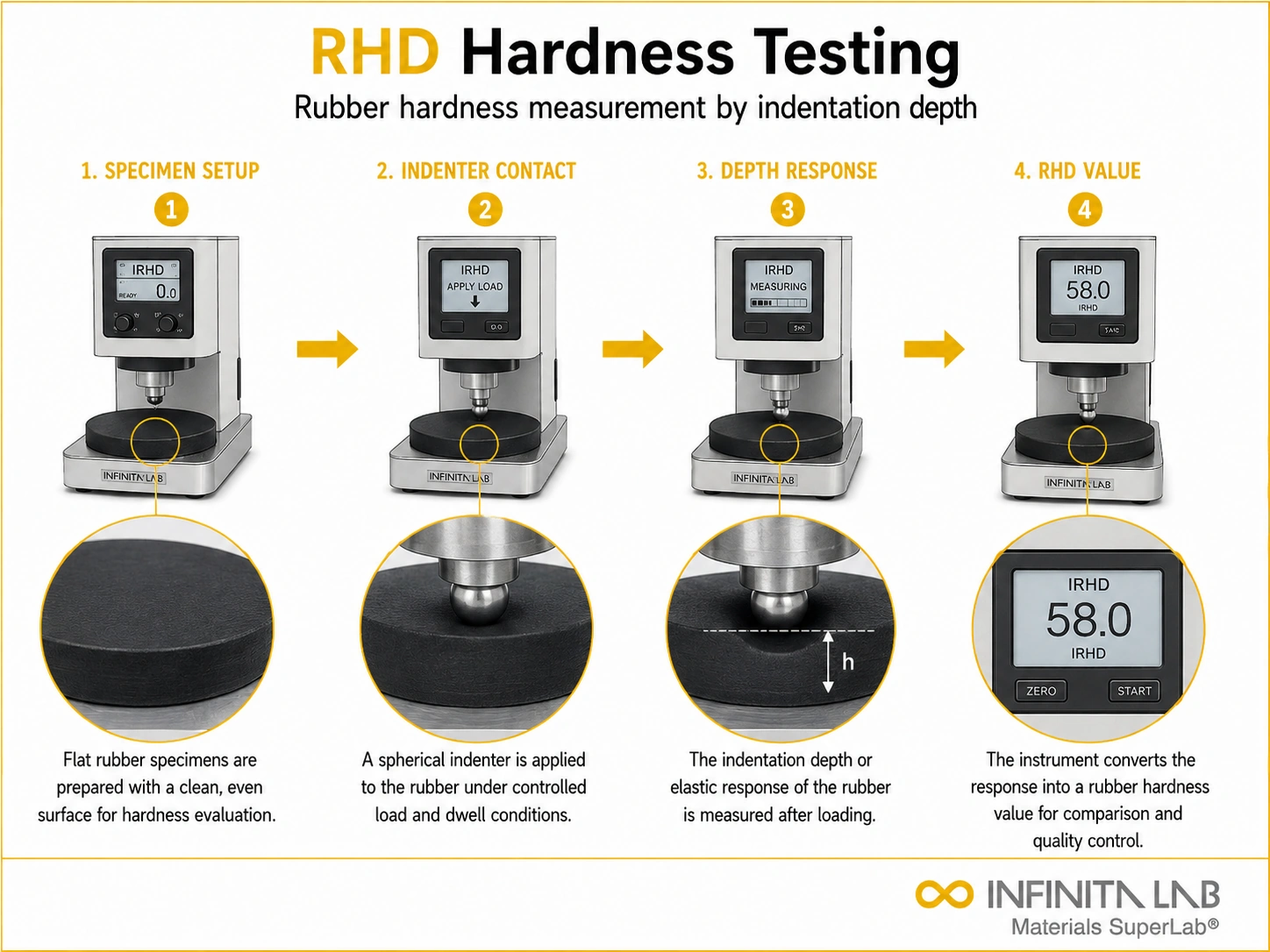

International Rubber Hardness Degree (IRHD) testing measures the indentation hardness of rubber and elastomeric materials by pressing a small ball indenter into a specimen under a defined load and measuring the resulting indentation depth, which is converted into an IRHD value. Automatic IRHD hardness testers replace manual dial-reading and hand-timed indentation with motorized load application, digital depth measurement, and software-driven result calculation — removing much of the operator-dependent variability that has historically affected rubber hardness testing.

As rubber and elastomer manufacturing has scaled up and quality requirements have tightened across automotive, medical, and industrial sectors, the demand for faster, more consistent, and more traceable hardness testing has driven rapid evolution in automatic IRHD tester design. What began as simple motorized upgrades to manual dead-load testers is now moving toward fully integrated, connected, and increasingly intelligent testing systems.

Types of Automatic IRHD Testers Today

Motorized Dead-Load Testers

Automate the load application and indentation timing of traditional IRHD-N and IRHD-H methods while retaining a mechanical dial or digital gauge for depth readout. Offer a straightforward, cost-effective upgrade path from fully manual equipment with meaningfully improved repeatability.

Digital Depth-Sensing Testers

Replace mechanical dial gauges with high-resolution digital displacement sensors, providing direct digital IRHD readout, automatic zeroing, and built-in data logging — the current mainstream standard for laboratory and QC hardness testing.

Micro-Indentation (IRHD-M) Automated Systems

Purpose-built automatic testers for the IRHD-M micro-hardness method, using miniaturized indenters and precision load cells to test thin sections, small parts, and O-rings that standard IRHD-N/H equipment cannot accommodate.

Bench-Integrated Multi-Method Systems

Combine automatic IRHD testing with other rubber physical test methods (Shore durometer, compression set) in a single connected bench system, allowing a single specimen workflow to capture multiple property measurements without manual instrument switching.

Also Read – Advanced Ceramics Testing & Properties: Key Methods & Standards Guide

Where the Technology Is Heading

Software-Driven Result Validation & Traceability

Automatic testers are increasingly built around software that enforces correct test setup, flags out-of-tolerance conditions in real time, and automatically logs full traceability data — indenter calibration status, ambient temperature, operator ID, and specimen identification — directly against each recorded result.

Integration With Laboratory Information Management Systems (LIMS)

Direct digital connectivity between hardness testers and LIMS platforms is becoming standard, eliminating manual data transcription and enabling automatic statistical process control charting, batch release decisions, and audit-ready record retention.

AI-Assisted Specimen Handling & Positioning

Machine-vision-guided specimen positioning and automated indentation-point selection are emerging in higher-end systems, reducing operator-introduced positioning error and enabling unattended multi-point testing across a single specimen or production batch.

Robotic & High-Throughput Automation

Robotic specimen loading and multi-station automatic testing cells are appearing in high-volume rubber component manufacturing, allowing 100% inline hardness verification rather than statistical sampling, particularly for safety-critical automotive and medical elastomer parts.

Predictive Calibration & Self-Diagnostics

Newer instruments increasingly monitor their own load cell and indenter performance continuously, flagging drift before it affects results and scheduling calibration proactively rather than relying solely on fixed periodic recalibration intervals.

Cloud-Based Cross-Site Data Aggregation

Multi-facility manufacturers are adopting cloud-connected testers that aggregate hardness data across plants and labs in real time, supporting faster root-cause analysis when hardness trends drift across a global supply chain.

Applications by Industry

Automotive & Transportation — Inline and QC hardness verification of seals, gaskets, hoses, and vibration-damping components, where increasingly automated testing supports the 100% inspection demands of safety-critical elastomer parts.

Medical Device Manufacturing — Automated IRHD-M micro-hardness testing of small elastomeric components (seals, plungers, tubing) where traceability and audit-ready data logging are essential for regulatory compliance.

Tire & General Rubber Manufacturing — High-throughput automatic hardness testing integrated into production QC lines to monitor batch-to-batch consistency at production speed.

Consumer Products — Automated bench systems combining IRHD and durometer testing for footwear, sporting goods, and consumer elastomeric components requiring multi-property QC in a single workflow.

Aerospace & Industrial Sealing — Precision automatic hardness testing of O-rings and gaskets, often paired with continuous calibration monitoring given the tight tolerance and traceability demands of these applications.

Industry Standards Referencing IRHD Testing

Test Methods: ISO 48-2 (rubber hardness — IRHD-N and IRHD-H methods), ISO 48-4 (IRHD-M micro-hardness method), ASTM D1415 (international rubber hardness of vulcanized rubber)

Calibration & Equipment Verification: ISO 48-1 (general hardness determination principles), ASTM D4483 (rubber test method precision and bias evaluation)

Related Hardness Methods: ASTM D2240 (Shore durometer hardness), ISO 7619-1 (Shore A/D hardness of rubber and elastomers)

Quality System Integration: ISO/IEC 17025 (general requirements for testing/calibration laboratory competence, relevant to automated data traceability requirements)

Advantages and Limitations of Current Automation

Advantages

• Significantly reduces operator-to-operator variability inherent in manual dial reading and hand-timed indentation
• Digital data logging and LIMS integration eliminate transcription errors and improve audit-readiness
• High-throughput and robotic systems make 100% inline inspection economically feasible for safety-critical components
• Predictive calibration monitoring reduces the risk of undetected instrument drift affecting released product
• Multi-method bench integration streamlines QC workflows and reduces total specimen handling time

Limitations

• Higher-end connected and AI-assisted systems carry substantially higher capital cost than traditional motorized testers
• Machine-vision specimen positioning still requires validation against manual placement for unusual or non-standard specimen geometries
• Cloud and LIMS integration introduces IT infrastructure, cybersecurity, and data governance considerations not present in standalone instruments
• Full automation cannot fully replace the practical judgment needed for damaged, contaminated, or non-standard test specimens
• Adoption of the newest connected systems often outpaces the specific calibration and validation guidance available in current standards, requiring manufacturers to develop internal qualification protocols

Also Read – Bakelite vs Plastics: Key Differences, Properties & Testing

Conclusion

Automatic IRHD hardness testing is moving well beyond simple motorization of the indentation process, toward connected, self-monitoring, and increasingly intelligent systems that integrate directly into broader manufacturing quality ecosystems. As automotive, medical, and industrial elastomer manufacturers push toward 100% inline inspection and full traceability, the testers best positioned for the future will be those that combine ISO 48 and ASTM D1415 compliant measurement fundamentals with the connectivity, automation, and predictive calibration capability that modern quality systems increasingly demand.
