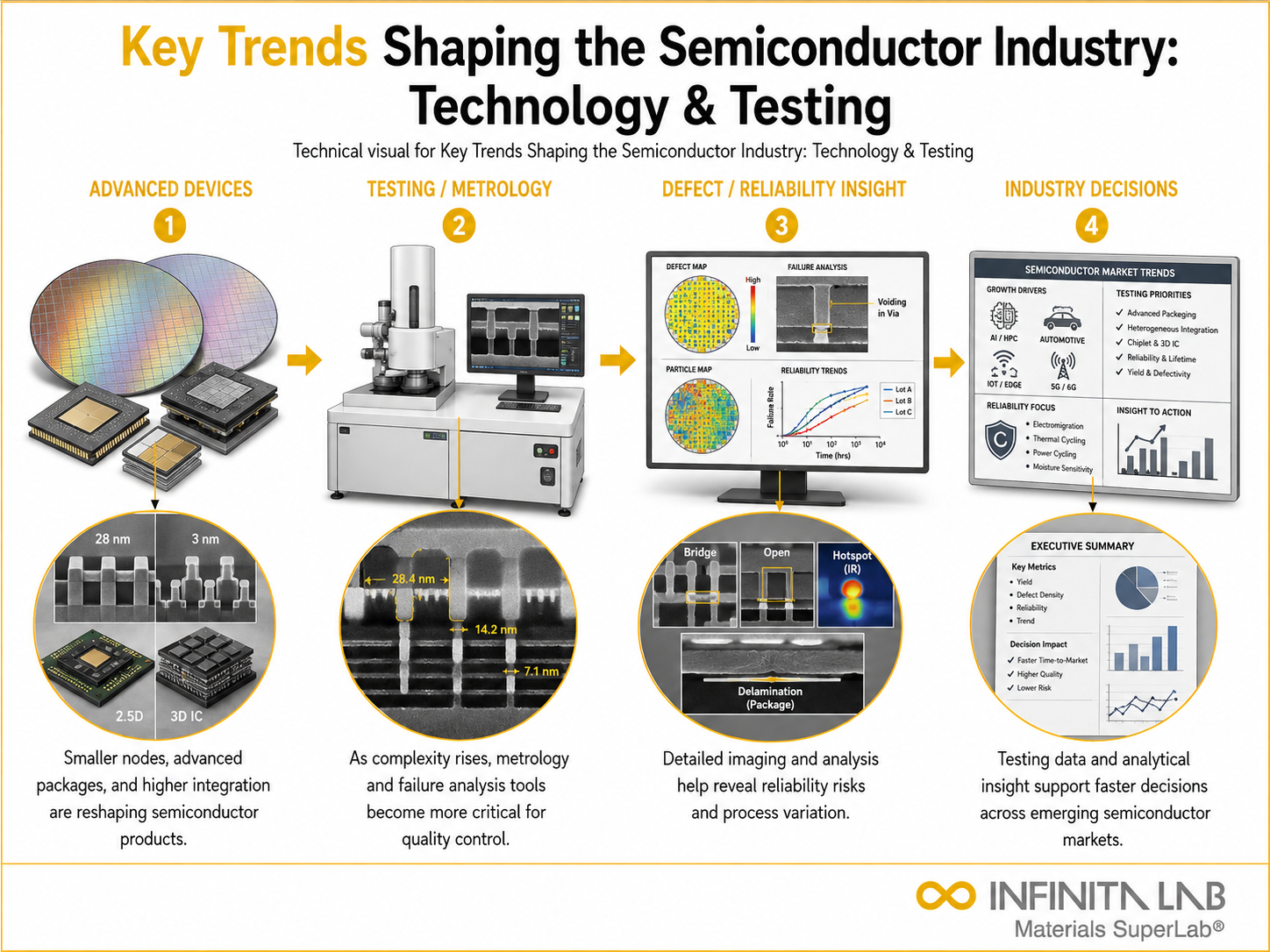

Representative Infinita Engineering Visual explaining the four-step workflow for Semiconductor Device Failure Analysis.

What Is Semiconductor Device Failure Analysis?

Semiconductor failure analysis is the systematic investigation of a failed integrated circuit or electronic component to determine the physical root cause of failure — proceeding from non-destructive electrical and imaging techniques through progressively more invasive physical analysis. The core discipline is sequencing: destructive steps performed prematurely can permanently destroy the evidence needed to find the actual failure mechanism.

Non-Destructive First Steps

  • Electrical test verification to characterise and confirm the suspect device’s role in the failure
  • X-ray inspection to detect internal defects (layer disconnection, cracks, wire bond issues, solder ball inconsistencies) without opening the package
  • Curve tracer I-V characterisation to check for leakage, shorts, or junction damage

Decapsulation

Decapsulation removes the plastic or ceramic packaging to expose the die, bond wires, or flip-chip bumps. Chemical decapsulation uses concentrated acids and requires strict safety protocols (acid-resistant PPE, fume hood ventilation); mechanical, laser, and plasma-based decapsulation methods are also used depending on package type and the feature of interest.

Post-Decapsulation Analysis Techniques

  • Optical microscopy / SEM: evaluates physical anomalies, electrical overstress damage, and surface defects; SEM resolves features down to roughly 10 nm
  • SEM/EDX (energy-dispersive X-ray spectroscopy): provides elemental composition analysis, useful for identifying contaminants above roughly 0.1-1 wt%
  • FIB (focused ion beam) cross-sectioning: precision milling to expose specific internal features for SEM or TEM examination
  • Voltage contrast and EBIC (electron-beam-induced current): SEM techniques for examining biased devices
  • IR thermography: identifies hot spots on biased devices as candidate failure sites
  • SIMS: detects contaminants at parts-per-billion sensitivity

Also ReadCapacitor Failure Analysis: Techniques & Root Cause Investigation

Establishing Root Cause

The analyst correlates physical evidence (from cross-sectioning, SEM/EDX, or FIB) with electrical test data and device history to establish a defensible root cause, then documents findings with recommended corrective actions.

Industry Specifications Referencing Semiconductor Failure Analysis

  • Common techniques referenced across the industry: decapsulation, cross-sectioning, FIB/TEM, EDS/SIMS

Conclusion

The “measure twice, cut once” discipline is what separates a useful failure analysis from a ruined one — because destructive steps like decapsulation and cross-sectioning are irreversible, the non-destructive characterisation has to be thorough enough to justify committing the device to the next, more invasive step.

What is semiconductor device failure analysis?

Semiconductor failure analysis identifies the physical, electrical, chemical, or manufacturing cause of device malfunction. It combines electrical testing, imaging, material analysis, and cross-sectioning to locate and understand the defect.

What is semiconductor decapsulation?

Decapsulation removes the protective package material surrounding a semiconductor die. It exposes the chip, bond wires, and internal connections for microscopic inspection and further analytical testing.

Which methods are used for decapsulation?

Common methods include chemical etching, plasma decapsulation, laser ablation, and mechanical removal. The selected method depends on the package material, device construction, and areas that must remain undamaged.

How is SEM used in semiconductor failure analysis?

Scanning Electron Microscopy provides high-resolution images of the die surface, metal lines, bond pads, cracks, particles, and damaged regions. It can reveal defects that are too small for optical microscopy.

What is Focused Ion Beam analysis?

Focused Ion Beam technology uses a narrow ion beam to remove material from a precise location. It allows analysts to expose buried structures, prepare cross-sections, and examine defects inside multilayer semiconductor devices.
