Automated Curve Tracers: I-V Characterization of Semiconductor Devices

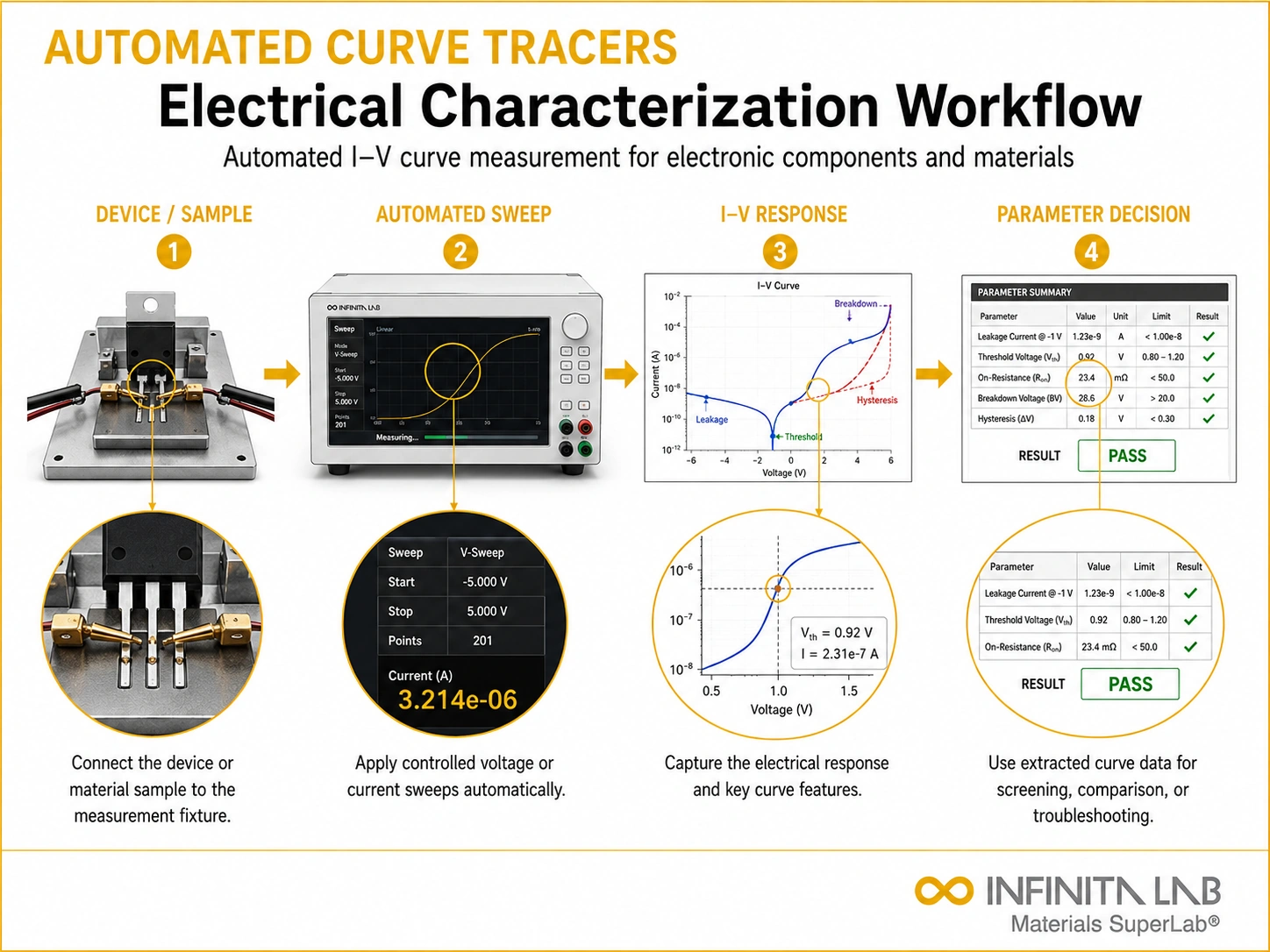

Representative Infinita Engineering Visual explaining the four-step workflow for Automated Curve Tracers.What Is Curve Tracer Testing?
Curve tracer testing analyses the current-voltage (I-V) characteristics of semiconductor devices and PCB assemblies to verify electrical behaviour without powering the full circuit. It’s a fast, non-destructive diagnostic used for incoming component inspection, failure analysis, counterfeit detection, and engineering validation.
Principle of Operation
A curve tracer applies a controlled voltage or current sweep to a device under test (DUT) while measuring and plotting the resulting response — producing an I-V, V-V, or V-I curve. Modern automated systems use source-measure units (SMUs) for precision sourcing and can additionally capture capacitance-voltage (C-V) and gate charge characteristics, extending curve tracing beyond simple diode/transistor checks into full power semiconductor characterization.
Test Procedure
- Fixture the device — for ICs, a switchbox allows independent control of individual pins without a high-pin-count socket
- Set a current limit appropriate to the device to prevent damage during the sweep
- Sweep voltage across the pin(s) of interest (a typical continuity/leakage check sweeps roughly +/-1 V)
- Record the resulting I-V curve and compare it against a known-good reference device or manufacturer specification
- Repeat across all relevant pins or junctions
What Curve Tracing Reveals
Deviations from a reference I-V curve can indicate open or short circuits, leakage current, junction breakdown, incorrect component values, polarity errors, damaged PN junctions, and damage from electrical overstress (EOS) or electrostatic discharge (ESD). Because the test uses low, tightly controlled voltages and currents, it can safely probe internal junctions without risking further damage to the device.
Also Read – Root Cause Analysis (RCA): Methodologies, Tools & How to Apply Them
Industry Specifications Referencing Curve Tracer Testing
- Common applications: FETs, BJTs, diodes, thyristors, wafer-level devices, and power modules (SiC/GaN)
- Complementary techniques: automated test equipment (ATE) for high-volume screening, decapsulation for physical failure confirmation
Conclusion
Curve tracing earns its place in a failure analysis lab because it’s cheap, non-destructive, and fast to set up compared to full ATE testing — making it the natural first electrical check before committing a suspect device to more invasive analysis like decapsulation.
What is an automated curve tracer? An automated curve tracer is an electronic test instrument that applies controlled voltage or current to a semiconductor device and measures its response. It generates current-voltage, or I-V, curves that reveal the device’s electrical behavior.
What semiconductor devices can be tested? Curve tracers can evaluate diodes, transistors, MOSFETs, IGBTs, thyristors, LEDs, solar cells, and other semiconductor components. The instrument configuration must match the device type and expected voltage and current range.
What is an I-V curve? An I-V curve shows the relationship between the voltage applied to a device and the resulting current. Its shape helps engineers identify operating regions, switching behavior, leakage, breakdown, and abnormal performance.
How does automated curve tracing work? The instrument sweeps voltage or current across a programmed range while recording the corresponding electrical response. Software then plots the results and calculates selected device parameters automatically.
Which parameters can be measured? Common measurements include forward voltage, reverse leakage current, breakdown voltage, threshold voltage, on-state resistance, current gain, saturation behavior, and transconductance.
