Carpet Testing Services: Pile Weight, Colorfastness, Wear & Flammability

Carpet and floor covering products must satisfy a demanding convergence of aesthetic, functional, safety, and durability requirements. From residential broadloom to commercial modular tiles and hospitality installations, carpets are subjected to foot traffic, furniture loads, cleaning chemicals, moisture, static electricity, and fire exposure throughout their service lives. Comprehensive carpet testing provides manufacturers, specifiers, and end users with the quantitative performance data needed to make confident product selection decisions and verify compliance with industry standards in the textiles & flooring sector.

Why Carpet Testing Is Essential

Carpet performance claims — durability ratings, stain resistance classifications, fire ratings, and environmental certifications — are only as credible as the laboratory testing that supports them. Without standardised testing, performance comparisons across products become meaningless, specification compliance cannot be verified, and warranty claims lack the objective evidence needed for fair resolution.

For commercial installations — offices, healthcare facilities, educational buildings, and transportation hubs — carpet performance specifications are often contractually mandated. Failure to meet tested performance thresholds after installation can result in premature replacement, significant financial losses, and contractual disputes.

Key Carpet Testing Parameters

Appearance Retention and Pile Fibre Durability

Hexapod Drum Test (ASTM D5252) — Simulates the appearance change caused by foot traffic. Carpet specimens are tumbled with rubber hexapods in a rotating drum for defined cycle counts. Appearance change is assessed using the Carpet and Rug Institute (CRI) scale (1–5, with 5 = no change). This test underpins CRI Green Label Plus durability ratings.

Lisson Traffic Simulation (EN ISO 10361) — The European equivalent, using a four-roller apparatus to simulate foot traffic appearance retention under ISO conditions.

Tuft Bind Strength (ASTM D1335) — Measures the force required to withdraw a single tuft from the carpet backing using a tensile testing machine. Minimum tuft bind strength is a critical quality attribute ensuring tufts are securely anchored and won’t pull out under normal use. Commercial carpet specifications typically require minimum values of 4–8 lbs (18–36 N) per tuft.

Wear Resistance

Vettermann Drum Test (ISO 10361) — An internationally recognised accelerated wear simulation applicable to commercial carpet specification compliance across Europe and Asia-Pacific markets.

Abrasion Resistance — Taber abrasion testing on carpet specimens quantifies fibre abrasion resistance, relevant for high-traffic areas subject to grit contamination.

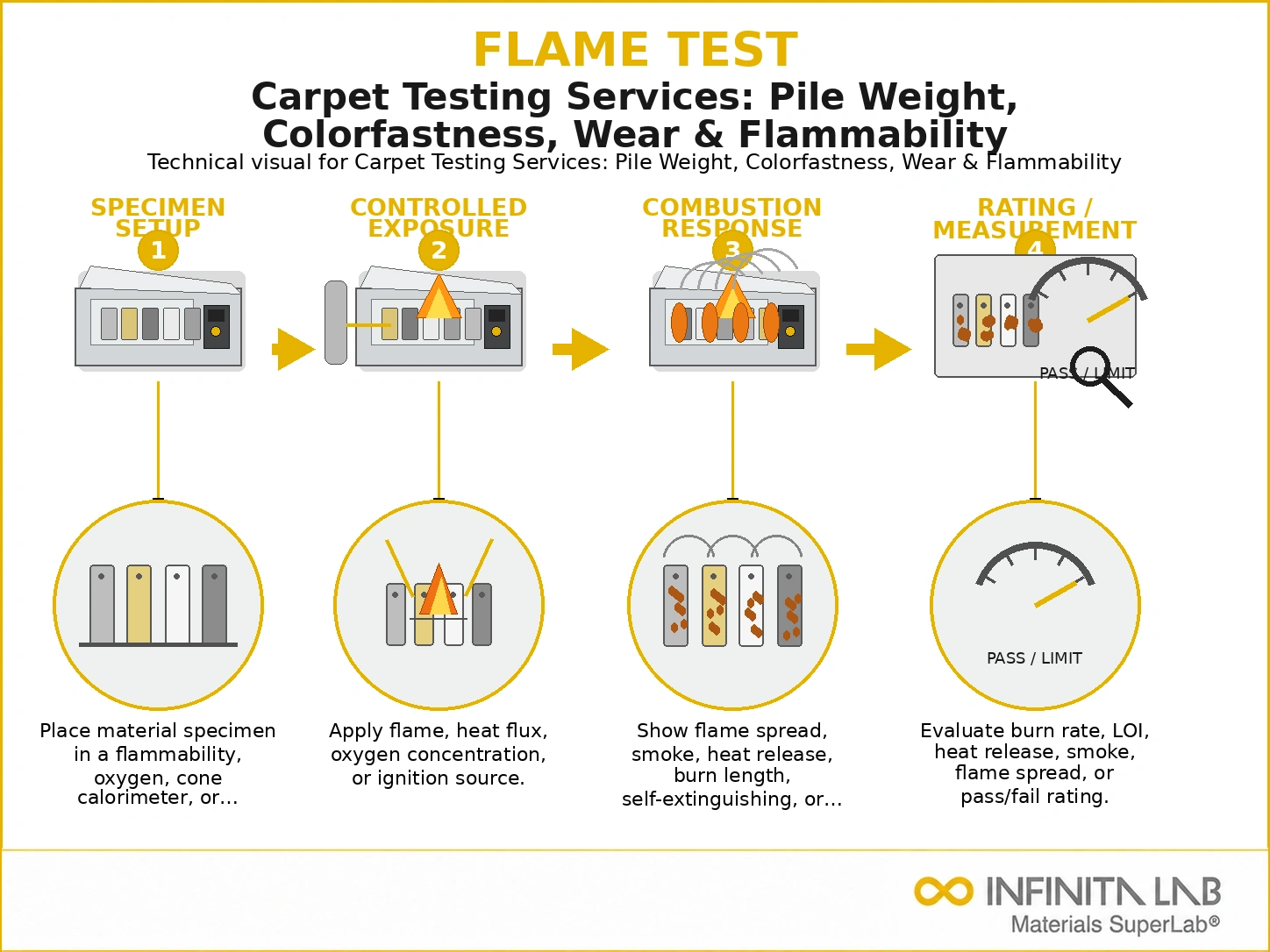

Flammability Testing

ASTM E648 / NFPA 253 — Critical Radiant Flux (Flooring Radiant Panel Test) — The primary commercial carpet fire safety standard in the United States. Carpet specimens mounted on a substrate are exposed to a radiant heat source, and the minimum heat flux required to sustain flame propagation is measured. Class I (≥0.45 W/cm²) is required for corridors and exits; Class II (≥0.22 W/cm²) for general commercial use.

ASTM D2859 — Pill Test — A simpler flammability assessment using a methenamine pill as ignition source, required for residential carpets under US Consumer Product Safety Commission (CPSC) regulations (16 CFR Part 1630).

ISO 9239-1 — The European radiant panel test equivalent, used for EN 13501-1 fire classification of flooring products.

Electrostatic Propensity

AATCC 134 — Electrostatic Propensity of Carpets — Measures the static charge generated when a person walks on the carpet under controlled temperature and humidity. Results above 3.5 kV indicate potential discomfort and ESD risk. Antistatic treatments and conductive fibre constructions are specified for sensitive environments (computer rooms, healthcare, electronics assembly areas).

Colorfastness

AATCC 16 — Colourfastness to Light — Xenon arc exposure assessment of carpet colour stability under simulated daylight. Relevant for installations near windows or with daylight exposure.

AATCC 8 / ISO 105-E01 — Colourfastness to Wet and Dry Crocking — Measures dye transfer from carpet to a white test cloth under rubbing, simulating soiling transfer in wet or dry conditions.

Dimensional Stability

ASTM D3882 — Bow and Skew in Woven and Knitted Fabrics — Relevant for broadloom carpet, bow and skew affect installation appearance and ease.

Dimensional Change After Wetting (ISO 2551) — Critical for carpet tiles and modular products, which must maintain dimensional stability through wet cleaning cycles to prevent curling, gapping, or buckling after installation.

Conclusion

Carpet testing is essential for ensuring that flooring products meet the complex demands of durability, safety, appearance, and long-term performance. Through standardised methods such as wear simulation, flammability testing, electrostatic measurement, and colourfastness evaluation, manufacturers and specifiers can objectively assess how carpets will perform under real-world conditions.

By relying on validated test data, stakeholders can make informed decisions, ensure compliance with regulatory and contractual requirements, and minimise the risk of premature failure or costly replacements. In the textiles and flooring industry, comprehensive carpet testing serves as the foundation for product reliability, safety assurance, and customer confidence.
