Flammability UL94 Testing Overview
UL 94 is a safety standard that measures the flammability of plastics, enabling rapid evaluation of their ability to smother or spread flames upon ignition. Instead of measuring how “fireproof” a material is, UL 94 categorizes materials based on their tendency to either extinguish or spread a flame once the specimen has been ignited.
UL 94 ratings are divided into two main test types: Horizontal (HB) and Vertical (V). The vertical tests are significantly more stringent.
Scope, Applications, and Benefits
Scope
UL94 testing evaluates:
- Horizontal and vertical burning characteristics
- Dripping behavior of molten material
- Afterflame and afterglow duration
- Ignition resistance and flame propagation
Applications
- Electrical and electronic components housings
- Automotive interior and under-the-hood plastic parts
- Consumer appliances and office equipment
- Medical devices and laboratory equipment
- Industrial and building plastic materials
Benefits
- Ensures fire safety compliance of plastic materials
- Helps in material selection for flame-resistant applications
- Provides recognized UL flammability ratings (V-0, V-1, V-2, HB, etc.)
- Reduces fire risk in end-use products

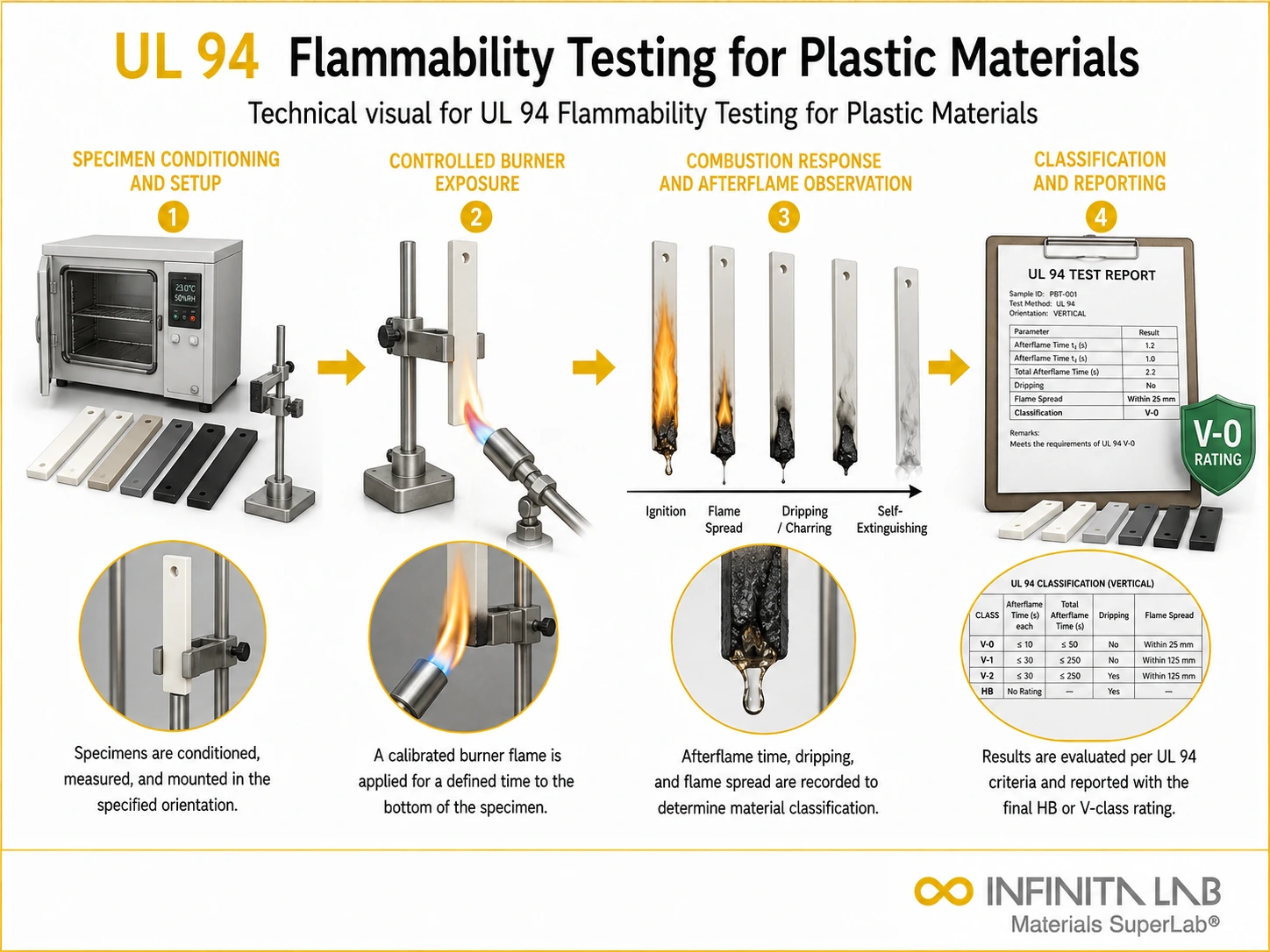

UL94 Flammability Test Process
Sample Preparation
Prepare and condition plastic specimens as per UL 94 dimensions.
1Specimen Mounting
Mount the specimen vertically or horizontally based on the test type.
2Flame Application
Apply a test flame to the specimen for the specified time.
3Evaluation
Assess burn length, self-extinguishing behavior, and assign UL 94 rating.
4UL94 Flammability Test Process
| Parameter | Details |
|---|---|
| Specimen Orientation | Vertical (V, 5VA, 5VB) / Horizontal (HB) |
| Flame Source | Standard Bunsen burner |
| Flame Height | Approx. 20 mm |
| Flame Application Time | 10 s (per application) |
| Cotton Indicator | Placed below to detect flaming drips |
| Test Environment | Ambient laboratory conditions |
Instrumentation Used for Testing
- UL 94 flammability test chamber
- Bunsen burner or standardized test flame source
- Gas supply and flow control system
- Specimen holding fixtures
- Timing device (stopwatch)
- Cotton indicator and mounting frame
- Ventilation and exhaust system
Results and Deliverables
- Material classified based on burning behavior and self-extinguishing time
- Afterflame and afterglow times recorded for each specimen
- Presence or absence of flaming drips observed
- Cotton ignition noted, if applicable
- Burn length measured for the horizontal (HB) test
- UL 94 flammability rating assigned (HB, V-2, V-1, V-0, 5VB, or 5VA)
- Results used to assess fire safety suitability of the material
Frequently Asked Questions
UL 94 evaluates how plastic materials react when exposed to a flame, measuring burning rate, flame spread, dripping behavior, and self-extinguishing capability for safety classification.
UL 94 testing helps manufacturers determine fire resistance of plastics used in electrical, electronic, and consumer products, ensuring materials meet safety standards and reduce fire hazards in end-use applications.
Common classifications include HB (Horizontal Burning), V-2, V-1, and V-0 for vertical burning tests. These ratings indicate how quickly a material burns, whether it drips flaming particles, and how effectively it self-extinguishes.
The horizontal (HB) test measures burning rate when the specimen is placed horizontally, while the vertical tests (V-0, V-1, V-2) evaluate how quickly the material stops burning after flame removal.
Manufacturers require UL 94 ratings to demonstrate fire safety compliance, reduce fire hazards, and meet regulatory requirements for plastic components used in electrical, electronic, and consumer products.
