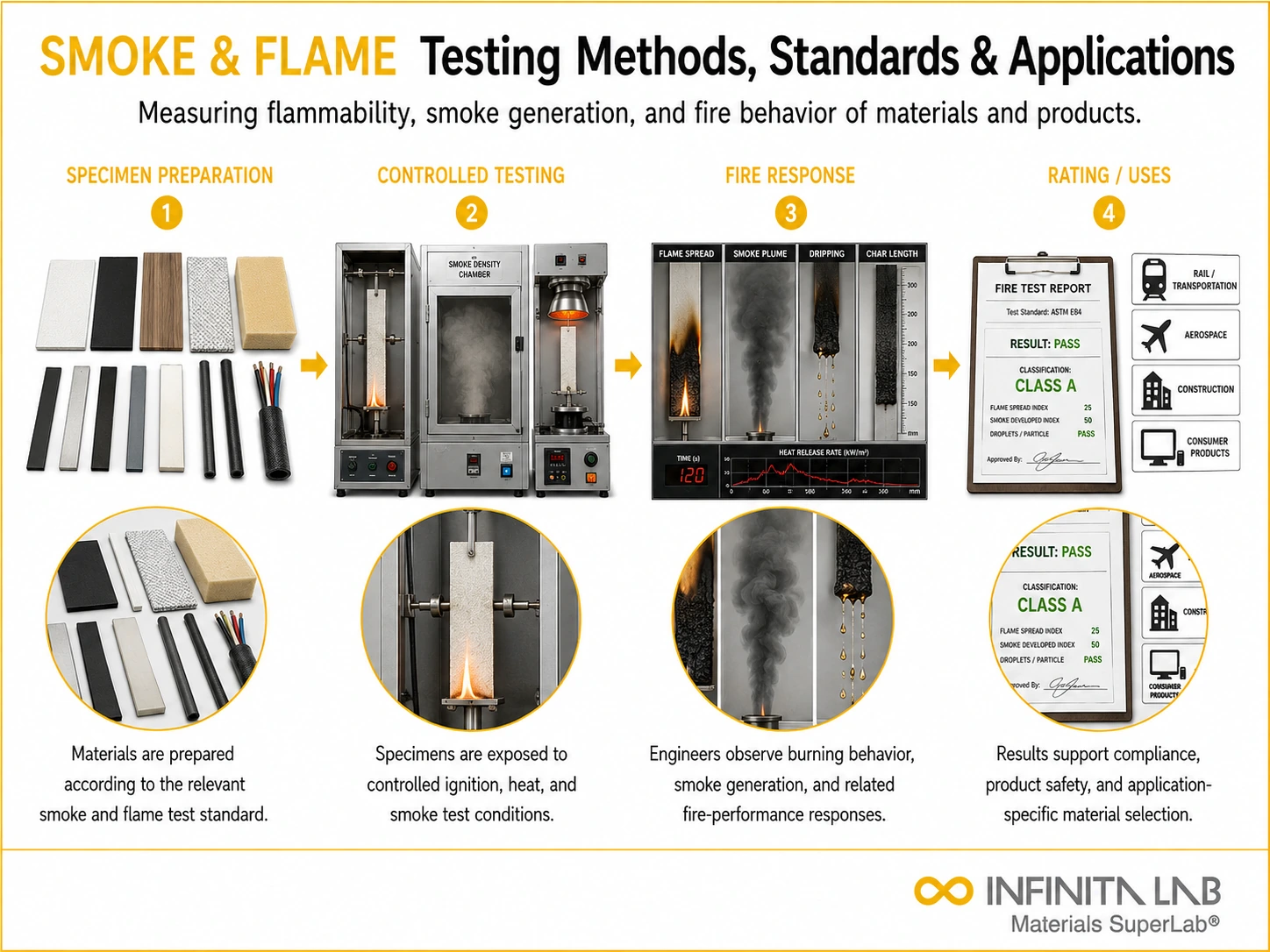

Smoke & Flame Testing: Methods, Standards & Material Applications
Materials undergo rigorous smoke and flame testing to ensure fire safety.Smoke and flame testing evaluates how materials behave when exposed to fire by measuring flame spread, smoke generation, heat release, and ignition resistance. These properties determine whether materials meet building codes, transportation safety regulations, and product safety standards designed to protect life and property. Fire testing is mandatory for building materials, transportation interior components, electrical products, and industrial materials across the construction, automotive, aerospace, electronics, and rail transit industries. For manufacturers seeking smoke and flame testing at a US-based testing lab, Infinita Lab provides comprehensive fire safety testing through its accredited laboratory network.
Key Smoke and Flame Test Methods
ASTM E84 – Surface Burning Characteristics
The Steiner tunnel test (ASTM E84) measures flame spread index (FSI) and smoke developed index (SDI) of building materials. Results determine fire classification (Class A, B, or C) required by the International Building Code for wall and ceiling finishes in the construction sector.
ASTM E662 – Specific Optical Density of Smoke
ASTM E662 (NBS smoke chamber) measures smoke density generated by a material under flaming and non-flaming conditions. This test is critical for transit vehicle interior materials (NFPA 130) and aircraft cabin materials where smoke obscuration threatens evacuation.
ASTM D6413 – Vertical Flame Test for Textiles
ASTM D6413 measures the vertical flame resistance of textiles by applying a controlled flame for 12 seconds and measuring char length, after flame time, and afterglow time. It is the primary test for flame-resistant workwear and protective clothing per NFPA 2112.
UL 94 – Flammability of Plastic Materials
UL 94 classifies plastics by their burning behaviour (V-0, V-1, V-2, HB) using small-scale vertical and horizontal flame tests. UL 94 ratings are mandatory for plastic housings in electrical and electronic equipment.
Regulatory Framework
International Building Code (IBC), NFPA codes, FMVSS 302 (automotive interiors), FAR 25.853 (aircraft interiors), FTA requirements (rail transit), and UL product safety standards all mandate compliance with specific smoke and flame test requirements.
Why Choose Infinita Lab for Fire Testing?
Infinita Lab is a leading provider of Fire Testing and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What does smoke and flame testing measure? Smoke and flame testing measures flame spread rate, smoke generation, heat release, ignition resistance, and self-extinguishing behaviour of materials when exposed to fire or ignition sources.
What is ASTM E84, and what are the fire classifications? ASTM E84 (Steiner tunnel test) measures flame-spread and smoke-development indices. Class A (FSI 0–25), Class B (FSI 26–75), and Class C (FSI 76–200) classifications are required by building codes for interior finishes.
What is the UL 94 flammability rating? UL 94 rates plastics from HB (slowest horizontal burning) through V-2, V-1, to V-0 (self-extinguishing within 10 seconds with no dripping). V-0 is the most demanding rating for electrical enclosures.
Why is smoke testing important for transit applications? In enclosed transit vehicles and aircraft cabins, smoke obscures evacuation routes and causes incapacitation through toxic gas inhalation. NFPA 130 and FAR 25.853 mandate the use of low-smoke materials to protect passenger safety.
What standards govern automotive interior flammability? FMVSS 302 requires that all automotive interior materials have a horizontal burn rate below 102 mm/min. Additional OEM specifications (GM, Ford, Toyota) may impose more stringent requirements.
