What Is EN 60332 1 2 Cable Flammability?
EN 60332-1-2 evaluates the resistance of insulated electrical wires and cables to vertical flame propagation under controlled fire exposure conditions. The test determines whether a single insulated conductor or cable can self-extinguish after direct flame application without allowing excessive upward flame spread. It is one of the most widely specified cable fire safety standards used in construction, transportation, infrastructure, energy, and industrial electrical systems, as well as in low-voltage cable qualification programs across European and international markets.
EN 60332-1-2 is part of the IEC 60332 fire testing series and is commonly referenced within CPR (Construction Products Regulation) cable fire classifications, including B1ca, B2ca, Cca, Dca, and Eca categories. The method is widely applied to power cables, communication cables, optical fiber systems, railway wiring, automotive harnesses, marine cables, and low-smoke halogen-free cable constructions exposed to localized ignition sources. Typical flame application duration is 60 seconds for cables with outer diameters up to 25 mm and 120 seconds for larger cable constructions. The test evaluates flame-spread behavior, charred length, self-extinguishing capability, and overall cable fire-safety compliance under standardized burner-exposure conditions.
Applications and Benefits of EN 60332 1 2 Cable Flammability Testing
Scope
This test method defines procedures to assess the vertical flame propagation characteristics of a single insulated wire or cable under controlled flame exposure. It evaluates ignition behavior, flame spread, and self-extinguishing capability.
The method ensures cables meet minimum fire safety performance requirements.
- Assessment of flame propagation along cable length
- Evaluation of self-extinguishing behavior after flame removal
- Measurement of charred or damaged length
- Analysis of insulation burning characteristics
- Verification of fire performance compliance
- Standardized single cable fire testing
Applications
- CPR cable fire classification qualification testing
- Building electrical cable fire safety compliance programs
- Railway and transportation cable flame propagation assessment
- Automotive wiring harness fire resistance evaluation
- Low-smoke halogen-free cable qualification testing
- Marine and offshore cable fire performance validation
- Electrical infrastructure and utility cable qualification
- Data center and communication cable fire safety assessment
Benefits
- Ensures cable fire safety performance
- Reduces risk of flame spread in installations
- Supports regulatory compliance
- Improves material selection and design
- Enhances safety in electrical systems
- Provides reliable performance validation

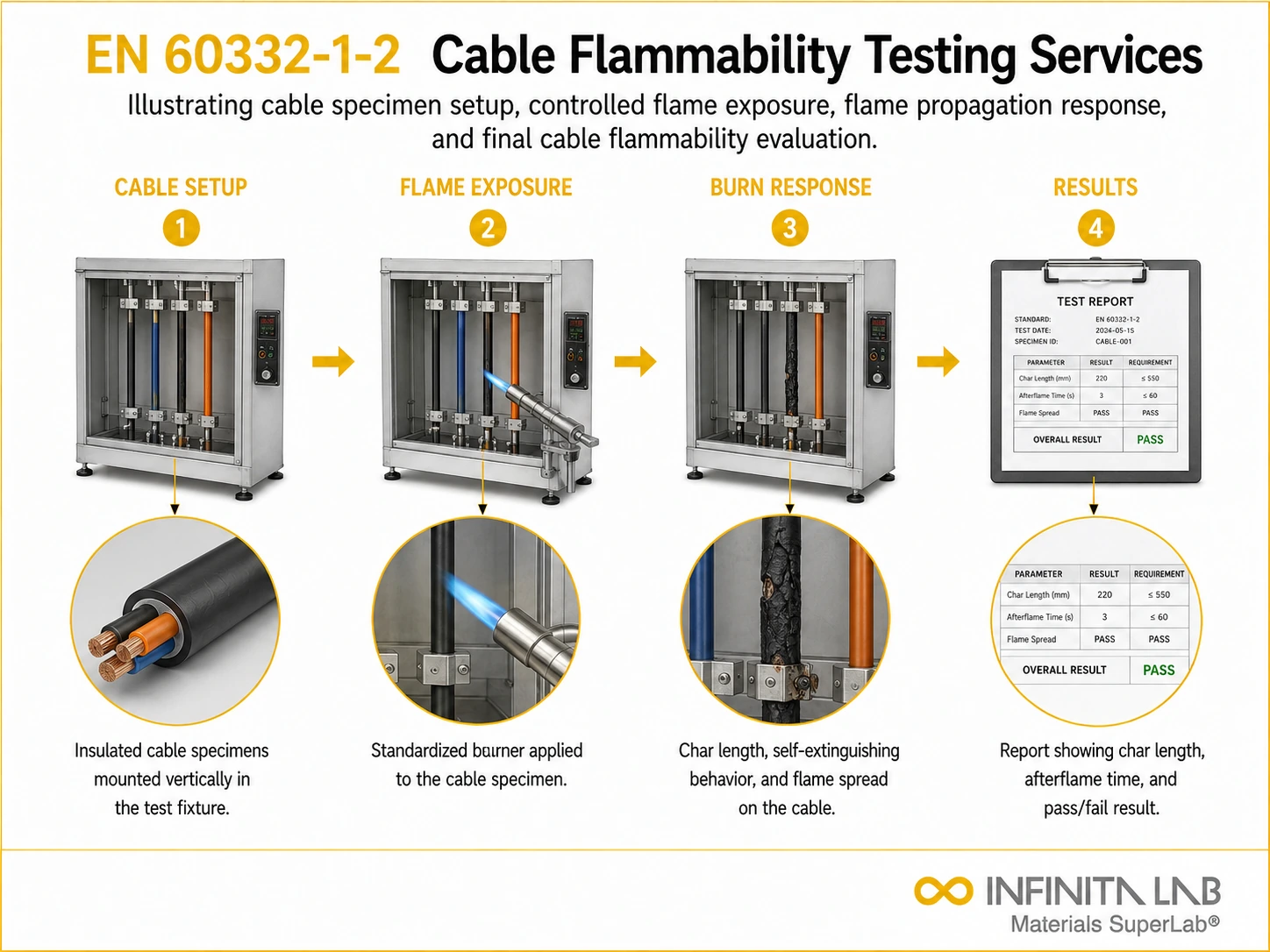

Our EN 60332 Testing Procedure
Sample Preparation
A single cable or insulated conductor is mounted vertically in the test apparatus.
1Flame Application
A standardized burner flame is applied to the cable for a defined duration.
2Flame Propagation Observation
The flame behavior and the extent of vertical propagation along the cable are observed.
3Data Recording & Evaluation
Flame spread distance and burning behavior are measured and evaluated in accordance with the standard.
4EN 60332 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Electrical and optical fiber cables |
| Specimen Orientation | Single cable mounted vertically |
| Flame Source | Standardized gas burner |
| Burner Type | Premixed propane flame burner |
| Flame Application Angle | Approximately 45° |
| Flame Application Time | 60 s (≤25 mm OD) / 120 s (>25 mm OD) |
| Evaluation Parameter | Flame spread and charred length |
| Typical Measurement Output | Charred length and compliance classification |
| Related Fire Classifications | B1ca, B2ca, Cca, Dca, Eca |
| Related Standards | EN 60332-1-1, EN 60332-1-3, EN 60332-3, IEC 60332, UL 1581 |
| Typical Sample Requirement | Approximately 600–1000 mm cable length |
| Measured Outputs | Flame propagation behavior and burn length |
| Measurement Units | Length (mm), time (seconds) |
- Vertical flame test chamber
- Gas burner (standardized flame source)
- Flow control system for gas supply
- Timer for exposure duration
- Measuring scale or ruler
- Mounting frame for cable
- Ventilation system
- Data recording tools
Equipment and Instrumentation Used for EN 60332 Testing
What You Receive: Test Report, Data, and Certification
- Pass/fail classification
- Charred length measurement
- Flame propagation behavior
- Self-extinguishing performance
- Test report as per EN standard
- Compliance certification data
- Fire performance evaluation
- Recommendations for material improvement
EN 60332 1 2 Cable Flammability FAQs
The test EN 60332-1-2 is used to determine the resistance of a single insulated electrical cable or optical fiber cable to the vertical flame propagation when it is subjected to a flame in a laboratory fire safety test.
In EN 60332-1-2, the test cable is subjected to a standardized burner flame in a specified time duration. After the removal of the flame, technicians observe the self-extinguishing of the cable and the flame spread.
EN 60332-1-2 is used to ensure that the cables are safe from the propagation of flames over a large length of the cable. This improves safety in buildings, industries, and infrastructure, where electrical cables are installed.
EN 60332-1-2 applies to single-insulated electric cables, power cables, control cables, communication cables, and optical fiber cables in buildings, transportation systems, and industrial electric installations where fire performance verification is required.
The standard EN 60332-1-2 tests for flame propagation in a single cable and does not represent the behavior of a bundle of cables in a fire situation, smoke production, or toxic gas emission.
Flammability testing for cables evaluates their resistance to ignition and flame propagation. A cable specimen is mounted vertically in a test chamber and exposed to a controlled flame for a specified duration. After the flame is removed, the specimen is examined for continued burning, flame spread, and damage to the insulation. The results help determine whether the cable meets the applicable fire-performance requirements.
BS EN/IEC 60332-1-2 specifies a vertical flame propagation test for a single insulated wire or cable, or an optical fibre cable, using a 1 kW premixed flame. The specimen is mounted vertically and exposed to the flame under controlled conditions. After exposure, the damaged length and burning behavior are assessed against the applicable performance criteria to evaluate resistance to flame propagation.
EN 60332-1-2 evaluates the resistance of a single insulated cable or wire to vertical flame propagation. The specimen is positioned vertically in a designated test apparatus and exposed to a 1 kW premixed flame for the prescribed period. After the flame is removed, the specimen is assessed for flame spread and compliance with the relevant acceptance criteria. This test evaluates individual cables; it does not establish flame-spread performance for groups of cables installed together.
