ISO 178 Plastics Flexural Properties Testing Services
ISO 178 is a three-point bend test where a force is applied on the midpoint of a sample, which is supported at either end.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
ISO 178 Flexural Testing Overview
The ISO 178 standard recommends a method to evaluate the flexural strength, flexural modulus, and stress-strain relation of plastic materials when subjected to flexural forces. This method is used to evaluate the ability of plastic materials to resist deformation under bending load.
This method is applicable to thermoplastics, thermosets, and reinforced plastics used in structural applications. This method is used to evaluate the flexural properties of materials used in components subjected to flexural forces.
Scope, Applications, and Benefits
Scope
ISO 178 testing evaluates:
- Flexural strength (MPa)
- Flexural modulus (MPa or GPa)
- Stress–strain behavior under bending
- Deflection at break or specified strain
- Stiffness and load-bearing capacity
Applications
- Thermoplastics (PE, PP, ABS, PVC, PC)
- Thermosetting plastics and composites
- Reinforced plastics (fiber-filled materials ≤7.5 mm fiber length)
- Automotive and aerospace components
- Structural plastic products and sheets
Benefits
- Provides accurate bending performance data
- Supports material selection and design
- Enables comparison between plastic grades
- Helps optimize manufacturing processes
- Detects material defects or inconsistencies

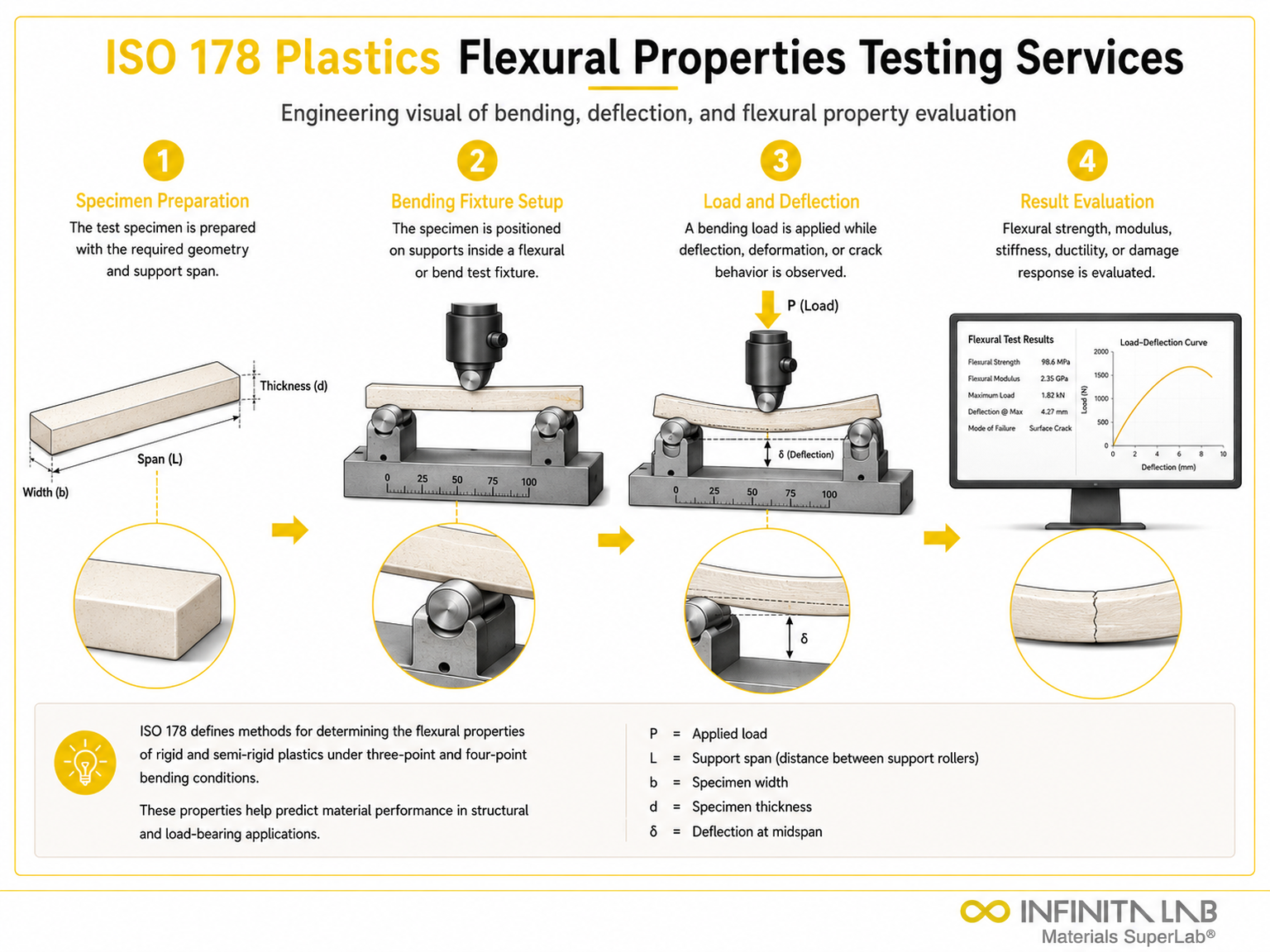

ISO 178 Test Process
Specimen Preparation
Specimens are prepared with standard dimensions and conditioned at ~23°C and 50% RH.
1Setup
The sample is placed on two supports with a defined span (typically 16× thickness).
2Load Application
A load is applied at the midpoint (three-point bending) at a controlled rate.
3Data Measurement
Load and deflection are recorded to calculate flexural strength and modulus.
4Load and deflection are recorded to calculate flexural strength and modulus.
| Parameter | Details |
|---|---|
| Test Type | Three-point bending test |
| Applicable Materials | Thermoplastics, thermosets, reinforced plastics |
| Specimen Shape | Rectangular bar |
| Span-to-Depth Ratio | Typically 16:1 or 20:1 |
| Strain Rate | ~1%/min (Method A), up to 5–50%/min (Method B) |
| Temperature Conditions | Typically 23°C (standard lab conditions) |
| Output Data | Stress–strain curve and bending properties |
Instrumentation Used for Testing
- Universal Testing Machine (UTM)
- Three-point bending fixture
- Load cell (±1% accuracy)
- Deflection measurement system (extensometer)
- Specimen preparation tools
- Data acquisition and analysis software
Results and Deliverables
- Flexural strength (MPa)
- Flexural modulus (MPa/GPa)
- Stress–strain curves
- Deflection and strain at break
- Comparative material performance analysis
- Detailed laboratory test report
Frequently Asked Questions
ISO 178 determines the flexural strength, flexural modulus, and deformation behavior of plastic materials when subjected to bending forces. It helps evaluate stiffness and load-bearing performance in applications where plastics experience bending stresses.
ISO 178 applies to rigid and semi-rigid plastics, including thermoplastics, thermosetting plastics, and fiber-reinforced composites. The method is widely used for evaluating materials used in automotive, electrical, construction, and consumer product applications.
The test typically uses rectangular bar specimens prepared with specified dimensions. Proper specimen preparation, uniform thickness, and smooth surfaces are essential to ensure accurate bending behavior and reliable flexural property measurements.
Flexural testing is important because many plastic components experience bending loads in service. ISO 178 helps manufacturers verify structural integrity, material quality, and compliance with product performance requirements.
Factors such as specimen dimensions, span length, loading rate, temperature conditions, and testing machine alignment can influence results. Proper calibration, standardized sample preparation, and controlled testing environments ensure accurate and repeatable measurements.
