ASTM C1550: Fiber Reinforced Concrete Flexural Toughness Testing Services
ASTM C1550 determines the flexural toughness of fiber-reinforced concrete. Flexural toughness is the maximum stress onto a specimen before it cracks or breaks.
TRUSTED BY
Get ASTM C1550 compliant results — request your fiber reinforced concrete flexural toughness testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM C1550 Fiber Reinforced Concrete Flexural Toughness?

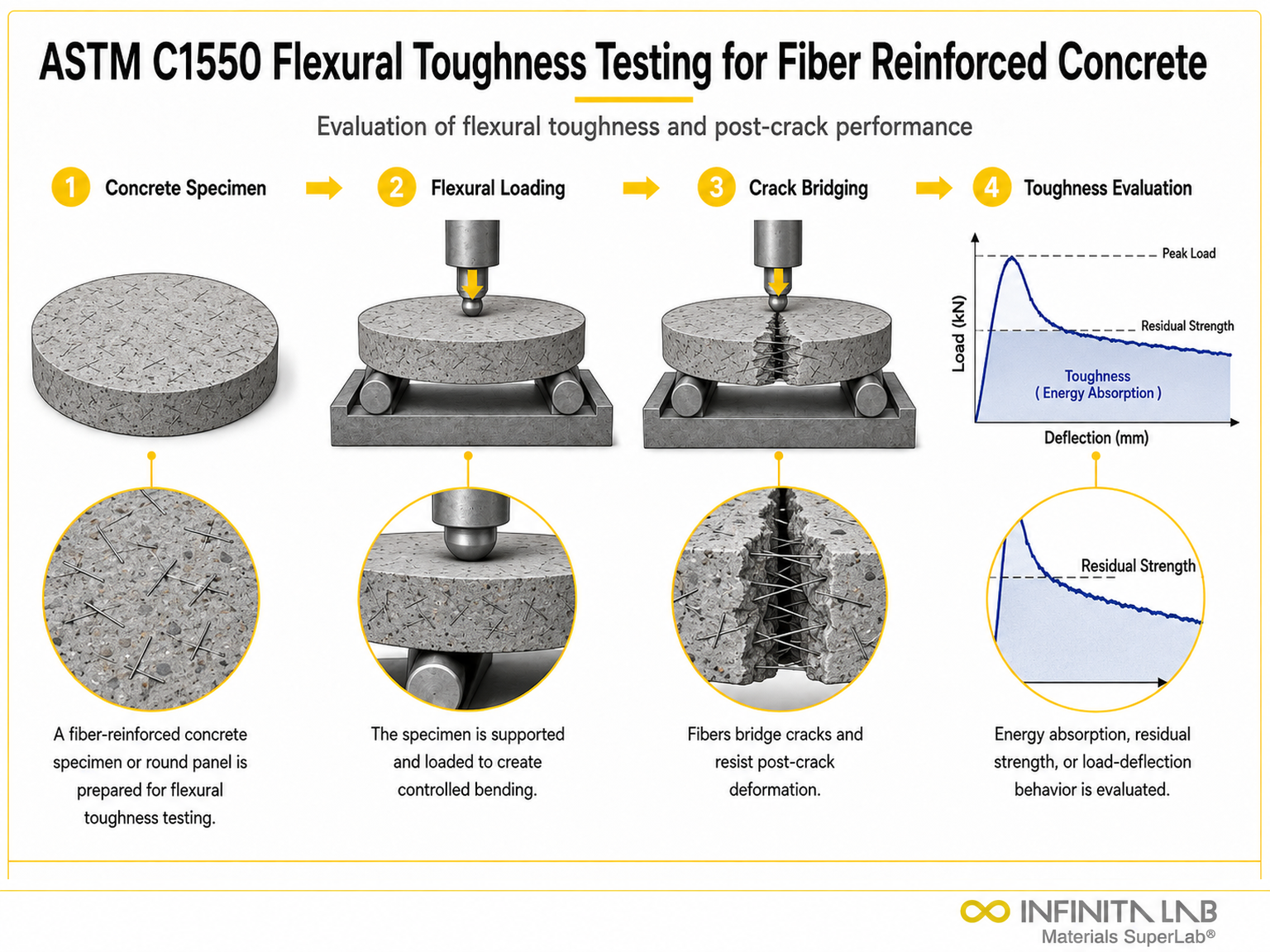

ASTM C1550 determines the flexural toughness of fibre-reinforced concrete by measuring the energy absorbed during the deflection of a round panel under central point loading. Unlike beam-based methods, the round panel test generates a biaxial stress state more representative of real slab-on-ground and tunnel lining behaviour.
This test is widely used by concrete producers, fibre suppliers, and tunnel and mining engineers to characterise post-crack energy absorption capacity — the key performance parameter distinguishing fibre-reinforced concrete from plain concrete in structural applications.
Applications and Benefits of ASTM C1550 Fiber Reinforced Concrete Flexural Toughness Testing
Scope
ASTM C1550 is used to evaluate the flexural performance of fibre-reinforced concrete, with a focus on its behaviour after cracking and its ability to absorb energy under load. The test provides valuable insights into the toughness and residual strength of the material, making it especially useful for comparing different fibre types and dosage levels.
It evaluates:
- Peak load capacity and the post-crack load–deflection response
- Energy absorption at central deflections of 5, 10, 20, and 40 mm
- Residual load capacity at specified deflection points
- Comparative performance ranking of various fibre types and dosages
Applications
- Tunnel lining and shotcrete fibre dosage design
- Ground support and mine drift lining
- Industrial flooring and slab-on-grade design
- Precast fibre-reinforced concrete panel qualification
- Fibre concrete research and development
Benefits
- Biaxial loading better represents slab structural behaviour
- Quantifies post-crack energy absorption (toughness)
- Enables fibre type and dosage optimisation
- Supports structural design per the fib Model Code and ACI 318
- Reproducible and widely adopted for fibre concrete specification
Our ASTM C1550 Testing Procedure
Specimen Preparation
Round panels are cast, compacted, and cured for 28 days as per ASTM C1550.
1Fixture Setup
The panel is mounted on three supports with a central loading disc.
2Loading
A controlled load is applied at 4 mm/min while recording load and deflection.
3Toughness Calculation
Energy absorbed is calculated from the load–deflection curve and reported in joules.
4ASTM C1550 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Specimen Geometry | Round panel: 800 mm Ø × 75 mm thick |
| Support Configuration | Three pivots on 750 mm diameter circle |
| Loading Rate | 4 mm/min (displacement controlled) |
| Deflection Points | 5, 10, 20, 40 mm central deflection |
| Reported Output | Energy absorbed (J), residual load (kN) |
- High-capacity universal testing machine (UTM) or actuator (≥200 kN)
- Three-point panel support fixture (ASTM C1550 geometry)
- LVDT or encoder for central deflection measurement
- Data acquisition system (load vs. deflection)
- Panel curing chamber
Equipment and Instrumentation Used for ASTM C1550 Testing
What You Receive: Test Report, Data, and Certification
- Load–deflection curves to 40 mm deflection
- Energy absorption values at 5, 10, 20, and 40 mm (in Joules)
- Peak load and first-crack load
- Residual load capacity at defined deflection points
- Full report per ASTM C1550 with fibre type and dosage details
ASTM C1550 Fiber Reinforced Concrete Flexural Toughness FAQs
The round panel generates a biaxial stress state and post-crack yield line pattern that better represents how fibre-reinforced slabs and tunnel linings actually perform in service, compared to the uniaxial bending of beam specimens.
ASTM C1609 uses beam specimens under four-point bending and reports residual strength factors and toughness at specific deflection points. ASTM C1550 uses round panels and reports energy absorbed, providing data more directly applicable to slab and tunnel lining design.
For tunneling applications, energy absorption at 40 mm central deflection (E₄₀) is the key performance metric, typically specified in the range of 270–500+ J depending on the ground support class.
Increasing fiber dosage generally increases post-crack load capacity and total energy absorption, but the relationship is non-linear and depends on fibre type, geometry, and concrete matrix properties.
Yes. ASTM C1550 is material-agnostic and can be used to compare steel fibers, synthetic macro-fibres, glass fibres, and blended fibre systems on an equal basis, making it ideal for fibre selection and dosage optimization.
