Fatigue Failure Analysis Overview
Fatigue failure analysis is the investigative process of determining why a component or structure failed under cyclic loading. The majority of mechanical failures in service are fatigue-related -cracks initiate at stress concentrations, propagate incrementally with each load cycle, and eventually reach a critical size at which the remaining cross-section fractures suddenly and without warning. When that happens, the question is not just what broke, but where the crack started, what drove it, and whether the root cause was a design issue, a manufacturing defect, a material problem, a maintenance lapse, or loading conditions that exceeded the component’s design limits.
Fatigue fracture surfaces carry a detailed record of how the crack grew. Beach marks, ratchet marks, fatigue striations, crack origin features, and the ratio of fatigue crack area to final fracture area all tell a story that a trained analyst can read. Combined with material characterization, dimensional inspection, stress analysis, and review of operating history, these fractographic observations allow the failure mechanism and its origin to be identified with a high degree of confidence.
At Infinita Lab, we coordinate fatigue failure analysis through our network of accredited labs, which cover the full analytical toolkit -fractography, SEM, metallography, hardness testing, chemical analysis, and mechanical property verification. Whether the failed part is a shaft, a weld, a fastener, a spring, a blade, or a structural member, we connect you with the right expertise and help you identify a defensible root cause, with the documentation needed to support engineering decisions, supplier disputes, or legal proceedings.
Fatigue Failure Analysis Scope, Applications, and Benefits
Scope
Fatigue failure analysis covers the full investigation workflow from initial documentation of the failure event through fractographic examination, material characterization, stress and load assessment, and root cause determination. The scope includes high-cycle fatigue (HCF) failures driven by stress amplitudes below the yield stress, low-cycle fatigue (LCF) failures involving significant plastic strain per cycle, thermal fatigue from cyclic temperature gradients, corrosion fatigue where cyclic loading is combined with an aggressive environment, and contact fatigue, including fretting and rolling contact fatigue. Material types covered include steels, aluminum alloys, titanium alloys, nickel superalloys, cast irons, plastics, composites, and welds. Analysis can be scoped to a single component or extended to a fleet or batch investigation where multiple failures share a common origin.
Applications
- Field failure investigation for in-service component fractures in aerospace, automotive, and industrial equipment
- Rotating machinery shaft, gear, and bearing fatigue failure root cause determination
- Weld joint and heat-affected zone fatigue crack origin investigation
- Fastener, bolt, and threaded connection fatigue fracture analysis
- Spring and flexible element fatigue life assessment following unexpected failure
- Structural member and pressure vessel fatigue crack investigation
- Fretting and contact fatigue damage characterization at mating interfaces
- Corrosion fatigue failure analysis where environment and cyclic stress interact
- Product liability and failure investigation requiring documented root cause findings
- Batch or fleet investigation where multiple components fail by the same mechanism
Benefits
- Fractographic evidence provides a physical record of crack origin, propagation path, and loading history.
- Distinguishes between design, manufacturing, material, maintenance, and overload as contributing factors
- Identifies whether failure was premature relative to design intent or consistent with expected service life
- Findings support corrective action, redesign, process improvement, or supplier accountability.
- Covers all fatigue failure modes -HCF, LCF, thermal fatigue, corrosion fatigue, contact fatigue
- Results documented with images, measurements, and analytical data suitable for engineering and legal review
- Applicable across all engineering material classes and component types
Fatigue Failure Analysis Testing Process

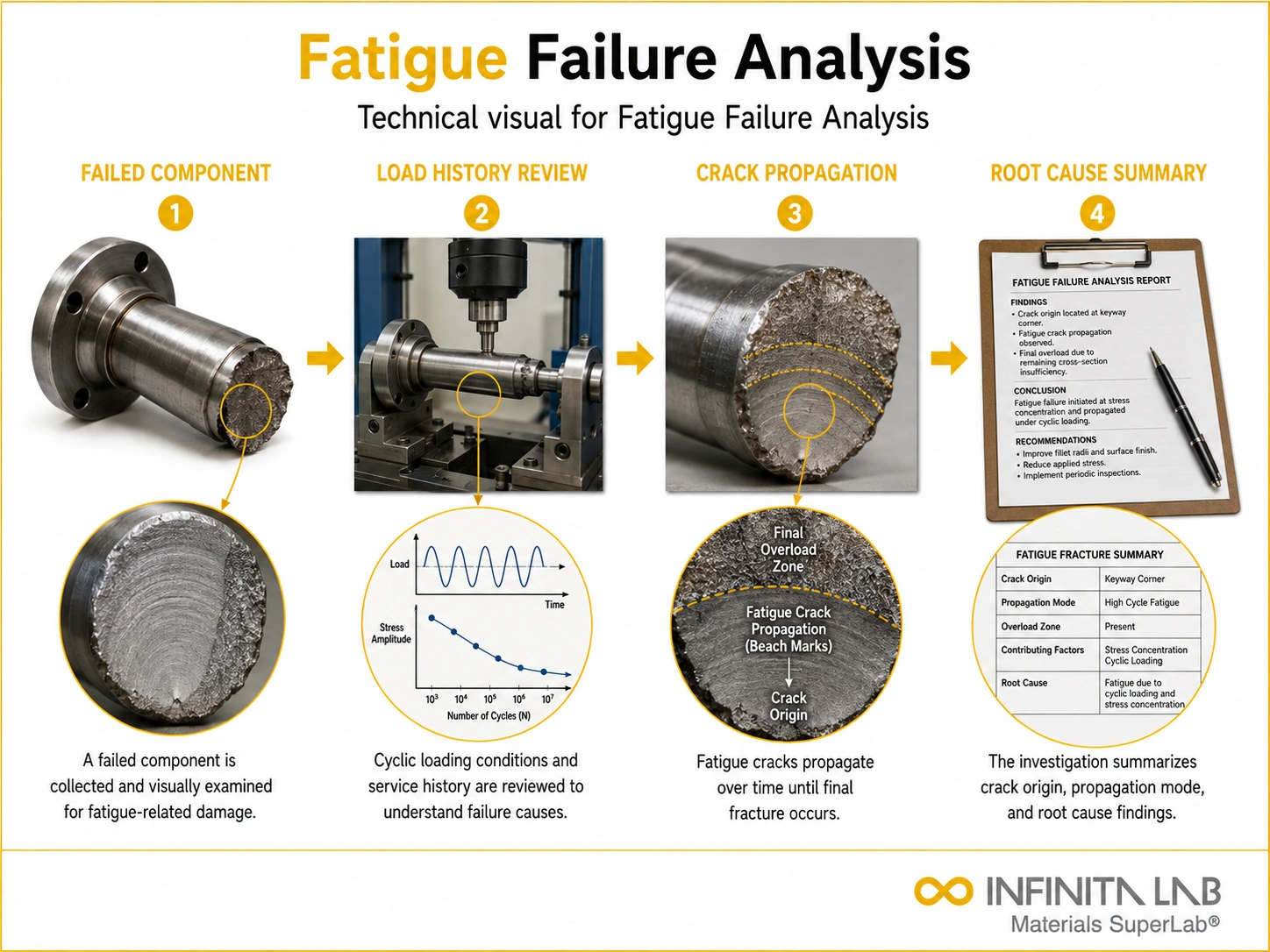

Evidence Collection and Background Review
The failed component is received, documented photographically, and preserved.
1Macroscopic and Fractographic Examination
The fracture surface is examined visually and under a stereo microscope to identify crack origin locations, beach marks, ratchet ...
2Material and Dimensional Characterization
Metallographic cross-sections are prepared from the origin region to examine the microstructure, grain size, heat-treatment conditions,.
3Root Cause Determination and Reporting
All physical, fractographic, and material findings are integrated with the loading and service history to determine the root cause and contributing factors.
4Fatigue Failure Analysis Technical Specifications
| Parameter | Details |
|---|---|
| Service Type | Investigative failure analysis -scope and techniques determined by component type and failure mode |
| Fatigue Failure Modes Covered | High-cycle fatigue, low-cycle fatigue, thermal fatigue, corrosion fatigue, fretting fatigue, contact fatigue |
| Material Types | Steels, aluminum alloys, titanium alloys, nickel alloys, cast iron, plastics, composites, and welds |
| Fractographic Methods | Stereo microscopy, optical microscopy, scanning electron microscopy (SEM) |
| Material Characterization | Metallography, hardness testing, chemical composition analysis, and tensile testing |
| Dimensional Inspection | Geometry verification at stress concentrations, thread form inspection, and surface roughness measurement |
Instrumentation Used for Fatigue Failure Analysis
- Stereo microscope for macroscopic fracture surface examination
- Scanning electron microscope (SEM) with EDS for fractographic analysis and elemental identification
- Optical metallurgical microscope for microstructure and cross-section examination
- Hardness tester (Rockwell, Vickers, or Brinell as appropriate to material and geometry)
- Optical emission spectrometer (OES) or combustion analyzer for chemical composition verification
- Coordinate measuring machine (CMM) or optical comparator for dimensional inspection
- Surface profilometer for surface roughness characterization at crack origin regions
- Scanning acoustic microscope (SAM) or X-ray for non-destructive examination, where applicable
Fatigue Failure Analysis Results and Deliverables
- Crack origin location identified with fractographic evidence -images and SEM micrograph.s
- Fatigue failure mode classification (HCF, LCF, thermal, corrosion fatigue, fretting, or contact)
- Fatigue striation imaging and spacing measurements where crack growth rate estimation is relevant
- Microstructural evaluation of origin region -defects, inclusions, surface anomalies, or grain boundary issues
- Material identity and hardness confirmation with comparison to specification requirements
- Dimensional findings at stress concentration features relevant to the failure.
- Root cause assessment, identifying the primary driver and any contributing factor.s
- Recommendations for corrective action, design modification, process change, or further investigation
- Full analytical report with all images, data, and conclusions formatted for engineering and quality.
Frequently Asked Questions
Fatigue failure analysis determines whether a component failed due to repeated cyclic loading rather than a single overload event. It also helps identify the crack initiation point and propagation path.
Typical indicators include beach marks, striations, and progressive crack growth patterns visible on fracture surfaces. These features help distinguish fatigue from brittle or ductile fracture.
Yes. By combining fractography, stress analysis, and material inspection, engineers can trace the crack back to its origin and identify contributing factors such as stress concentration, defects, or surface damage.
Fatigue is commonly observed in rotating or cyclically loaded parts such as shafts, gears, springs, fasteners, and structural joints exposed to repeated stress over time.
Fatigue life is influenced by stress amplitude, surface finish, material microstructure, residual stresses, environmental conditions, and the presence of notches or defects.
