The Importance of Test Frequency in Rubber & Polymer Dynamic Testing

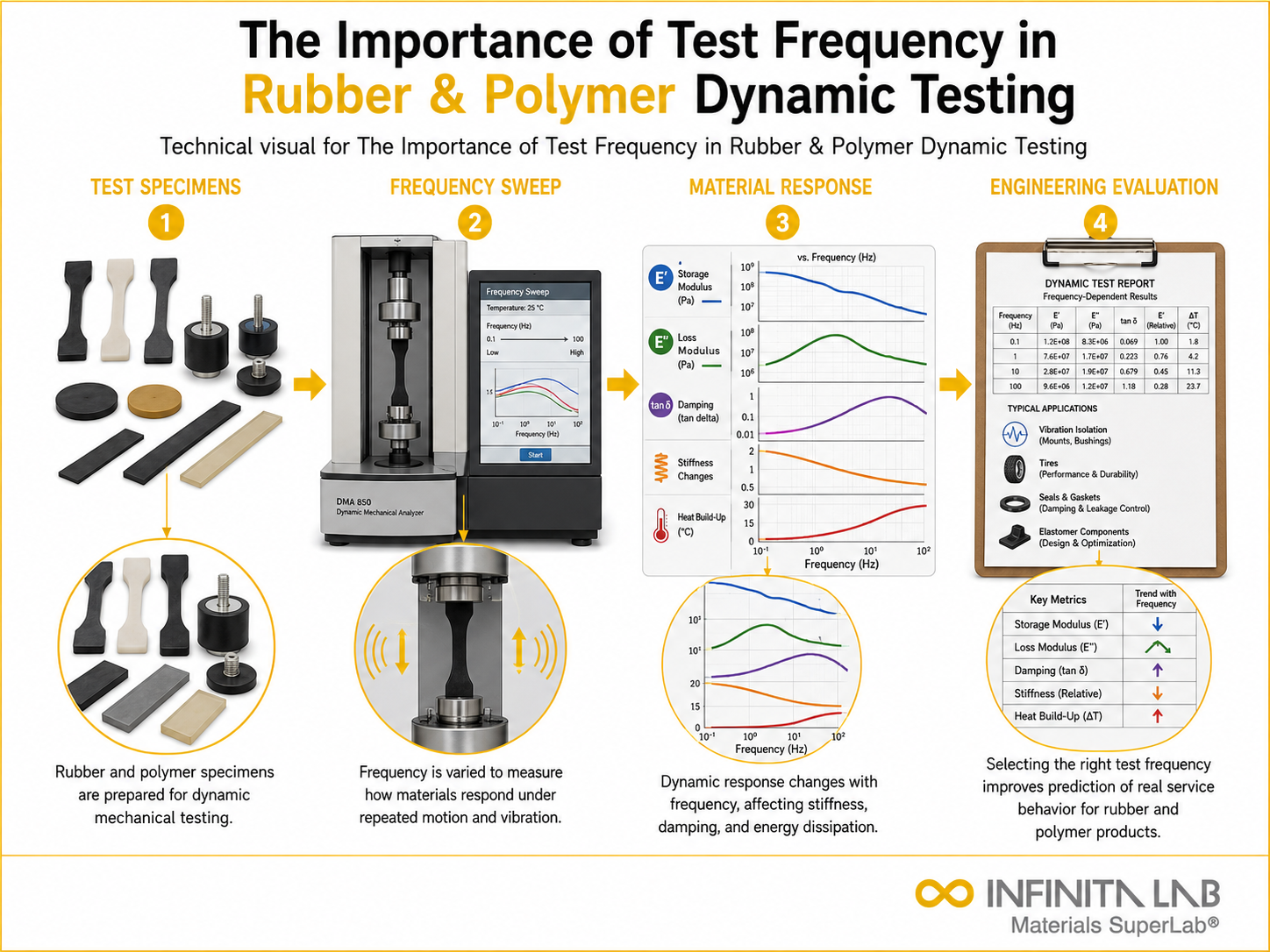

Why Frequency Matters in Viscoelastic Materials
Rubber and polymers are viscoelastic materials—their mechanical behaviour depends on both elastic (spring-like) and viscous (fluid-like) characteristics. Unlike metals, which exhibit relatively frequency-independent stiffness, polymers and rubbers change their modulus, damping, and energy dissipation characteristics significantly with the frequency of applied deformation.
This makes frequency selection a critical variable in rubber and polymer testing. Testing at the wrong frequency can yield results that do not represent the material’s actual service behaviour, leading to poor material selection and product performance issues across the automotive, aerospace, vibration isolation, and consumer goods industries.
The Viscoelastic Spectrum
The mechanical behaviour of a polymer can be plotted as a function of frequency (or temperature, via the time-temperature superposition principle). Key regions of this spectrum include:
- Glassy plateau (high frequency): The polymer is stiff and brittle—molecular chains cannot respond to the rapid deformation.
- Glass transition region: Storage modulus decreases sharply; loss modulus and damping (tan δ) peak.
- Rubbery plateau (low frequency): The polymer is flexible and elastic.
Understanding where a material operates on this spectrum determines whether it will function as a stiff structural element, a flexible seal, or an effective vibration damper.
Dynamic Mechanical Analysis (DMA) and Frequency
Dynamic Mechanical Analysis (DMA) is the primary test method for characterising the frequency dependence of polymer and rubber properties. DMA measures:
- Storage modulus (E’ or G’): The elastic component—energy stored per cycle.
- Loss modulus (E” or G”): The viscous component—energy dissipated per cycle.
- Tan δ (loss tangent): The ratio of loss to storage modulus, representing damping efficiency.
DMA can be run in frequency sweep mode, holding temperature constant while varying frequency from 0.01 Hz to 200 Hz (or higher in some instruments), generating a complete viscoelastic profile.
Frequency in Specific Rubber Tests
Dynamic Stiffness and Damping (Automotive Mounts)
Engine and suspension mounts must maintain defined stiffness and damping over the frequency range of engine firing orders (typically 10–200 Hz). Testing at a single frequency (often 10 Hz) is standard for automotive bushing qualification.
Fatigue Testing of Rubber
Rubber seals, belts, and hoses undergo cyclic fatigue at frequencies corresponding to their service condition. Fatigue life in rubber is frequency-sensitive due to thermal self-heating at higher test frequencies.
Resilience Testing (ASTM D945, D1054)
Resilience measures energy return per bounce. At low frequencies, rubber recovers well; at high frequencies near the glass transition, energy dissipation increases significantly.
Time-Temperature Superposition (TTS)
Because many materials cannot practically be tested at very high or very low frequencies, time-temperature superposition allows frequency response data measured at multiple temperatures to be shifted and combined into a single master curve covering many decades of frequency. This is an essential tool in predicting long-term or high-speed material behaviour from practical laboratory measurements.
Conclusion
Loading frequency is an essential parameter in the thermal and mechanical characterisation of rubbers and polymers through DMA testing. It affects basic properties such as the glass transition temperature and elastic modulus, thus improving the evaluation of the materials. With these relationships in mind, engineers and scientists could optimise material selection for a given application, its design, and its performance. Although there are many challenges facing it, the improvements in methodologies for testing keep further extending the scope and accuracy of DMA testing and thus lend further strength to its place in material science and engineering.
Why Choose Infinita Lab for Rubber and Polymer Testing?
Infinita Lab leverages a vast network of accredited labs with cutting-edge DMA, fatigue, and rheological testing capabilities. Our experts understand the frequency-dependent complexity of rubber and polymer behaviour and design testing programs that accurately represent your material’s service conditions.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What frequency should be used when testing rubber for automotive vibration isolation applications? The appropriate frequency range depends on the specific vibration source. Engine mounts are typically tested at 10–200 Hz. Road noise isolation mounts may require testing up to 1,000 Hz. Always match the test frequency to the service frequency.
What is the significance of the tan δ peak in DMA testing? The tan δ peak corresponds to the glass transition temperature (Tg) at the test frequency. It also identifies the temperature/frequency range of maximum damping—important for noise, vibration, and harshness (NVH) applications.
Can the time-temperature superposition principle be applied to all polymers? TTS works well for amorphous polymers and rubbers. It is less reliable for highly crystalline polymers, crosslinked systems with complex relaxation spectra, and polymers near specific phase transitions.
How does crosslink density affect frequency sensitivity in rubber? Higher crosslink density reduces molecular chain mobility, shifting the glass transition to higher frequencies and temperatures and generally reducing frequency sensitivity in the rubbery plateau region.
What ASTM standards govern DMA frequency testing of polymers? ASTM E1640 covers the assignment of the glass transition temperature by DMA. ASTM D4065 provides standard practice for DMA of plastics. ASTM D5026 covers DMA of plastics in tension.
