ASTM D7774: Plastic Flexural Fatigue Testing Services
ASTM D7774 covers the determination of dynamic full reversed fatigue properties of plastics in flexure. This standard test method is applicable to rigid and semi-rigid plastics. The SI units should be considered as standard.
TRUSTED BY
Get ASTM D7774 compliant results — request your plastic flexural fatigue testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D7774 Plastic Flexural Fatigue?
ASTM D7774 provides a standard test method for determining the flexural fatigue behavior of plastics under repeated cyclic bending loads. The test generates S-N (stress vs. number of cycles to failure) curves that characterize a material’s endurance under oscillating flexural stresses, providing data essential for components subjected to repeated bending in service.
Flexural fatigue data are critical for designing plastic springs, living hinges, clips, snap-fits, and other plastic components that experience repeated flexural loading throughout their service life.
Applications and Benefits of ASTM D7774 Plastic Flexural Fatigue Testing
Scope
ASTM D7774 evaluates:
- S-N fatigue curves under fully reversed or pulsating flexural loads
- Fatigue limit or endurance limit (if applicable)
- Effect of stress ratio, frequency, and environment on fatigue life
- Comparative fatigue ranking of plastic materials and grades
Applications
- Engineering plastic component fatigue design
- Living hinge and snap-fit durability qualification
- Automotive plastic bracket and clip fatigue life assessment
- Medical device plastic component fatigue testing
- Packaging film and sheet flexural fatigue evaluation
Benefits
- Generates design allowable data for cyclically loaded plastic components
- Enables material selection for fatigue-critical applications
- Identifies fatigue sensitivity to stress level and frequency
- Supports product lifetime prediction and warranty validation
- Applicable to a broad range of thermoplastic and thermoset materials
Our ASTM D7774 Testing Procedure
Specimen Preparation
Rectangular bar specimens are machined or injection molded per ASTM D7774 dimensions; specimens are conditioned at 23 °C/50% RH for 40 hours before testing.
1Test Setup
Specimens are mounted in the three-point or four-point bending fixture; the load amplitude corresponding to the target stress level is calculated from beam theory and applied.
2Cyclic Loading
Specimens are cycled at the target stress amplitude and frequency (typically 1–30 Hz) until fracture or a defined run-out cycle count (10⁶–10⁷ cycles) is reached.
3S-N Curve Construction
Tests are repeated at multiple stress levels (minimum 6 levels, 3–5 specimens each); the number of cycles to failure is plotted against stress amplitude to construct the S-N curve.
4ASTM D7774 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Geometry | Three-point or four-point bending |
| Stress Ratio (R) | −1 (fully reversed) or 0.1 (pulsating) |
| Frequency | 1–30 Hz (material dependent) |
| vRun-Out | 10⁶–10⁷ cycles |
| Measured Output | Cycles to failure vs. stress amplitude (S-N curve) |
- Servo-hydraulic or electrodynamic fatigue testing machine

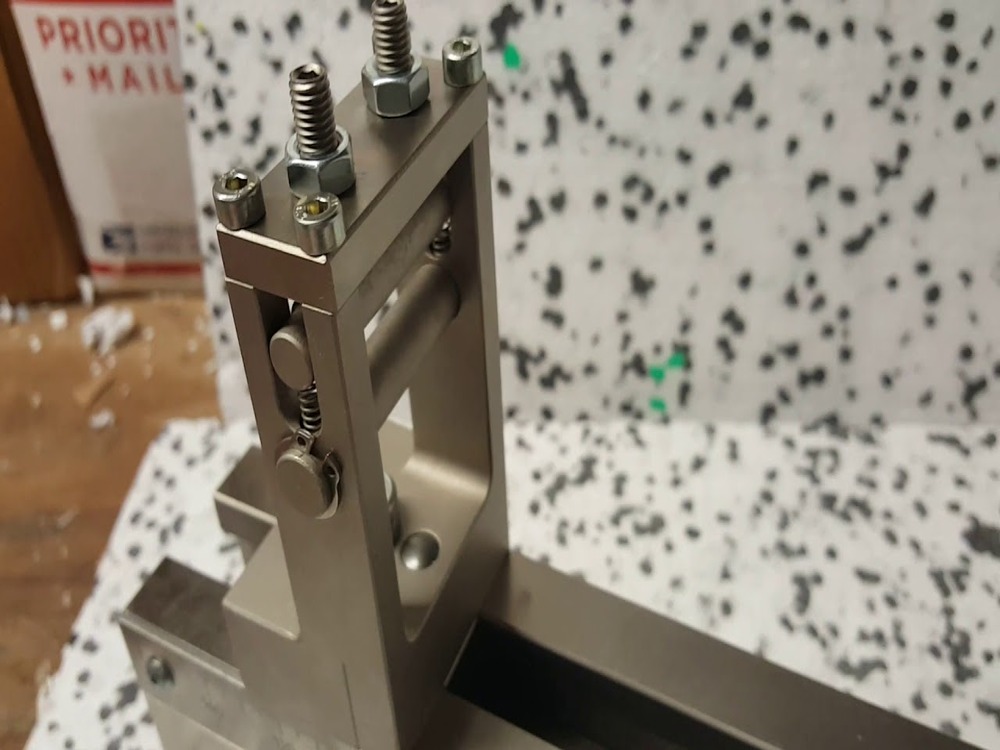

- Three-point or four-point bending fixture
- Load cell and displacement transducer
- Frequency controller and cycle counter
- Environmental chamber (optional, for temperature effects)
- Data acquisition software
Equipment and Instrumentation Used for ASTM D7774 Testing
What You Receive: Test Report, Data, and Certification
- S-N curves (stress amplitude vs. cycles to failure)
- Fatigue limit or endurance limit estimate
- Failure mode documentation and photographs
- Statistical analysis (mean, standard deviation of fatigue life)
- Full flexural fatigue test report per ASTM D7774
ASTM D7774 Plastic Flexural Fatigue FAQs
Most metals exhibit a well-defined endurance limit (stress below which fatigue failure does not occur). Most plastics show a continuously declining S-N curve without a clear plateau, so a "fatigue strength at 10⁷ cycles" is typically reported rather than a true endurance limit.
Plastics are viscoelastic and generate heat by hysteresis during cyclic loading. High test frequencies cause self-heating that softens the material and reduces fatigue life. Test frequency must be kept low enough (or specimens must be cooled) to avoid thermal fatigue effects, typically below 5 Hz for unfilled thermoplastics.
Many plastics are notch-sensitive under fatigue loading — stress concentrators (radii, surface defects, weld lines) dramatically reduce fatigue life. Specimens and components should be evaluated with representative surface conditions and notch geometry where applicable.
Yes. ASTM D7774 is applicable to both unreinforced and fiber-reinforced thermoplastics and thermosets. Fiber orientation relative to the bending axis significantly influences fatigue performance and should be documented.
A minimum of 15–25 specimens distributed across 5–8 stress levels is recommended for a statistically reliable S-N curve. Additional specimens at the run-out stress level are needed to define the fatigue limit region.
