Foldable Smartphones: Evolution, Material Challenges & Reliability Testing

The Rise of Foldable Smartphones

Foldable smartphones represent one of the most significant hardware innovation cycles in consumer electronics since the introduction of the touchscreen. By using flexible display technologies and advanced hinge mechanisms, foldable devices transform from compact phone form factors into tablet-sized screens — combining portability and productivity in a single device.

From the first commercially available foldable devices launched in 2019 to today’s third- and fourth-generation designs, the technology has matured considerably. Yet engineering a device that folds and unfolds hundreds of thousands of times over its service life while maintaining display clarity, hinge smoothness, and waterproofing remains one of the most demanding materials testing and product reliability challenges in the consumer electronics industry.

Core Technologies Enabling Foldable Displays

Ultra-Thin Glass (UTG)

Ultra-thin glass substrates — typically 30–100 µm thick — form the outer cover layer of modern foldable displays. At these thicknesses, glass can flex repeatedly around a defined minimum bend radius without fracturing. UTG provides significantly better scratch resistance than polymer film alternatives while maintaining the optical clarity and tactile feel expected of premium devices.

Key testing requirements for UTG: bend cycle fatigue testing, scratch resistance (nano-indentation, pencil hardness), optical transmittance, and impact resistance.

Flexible OLED Displays

Organic Light Emitting Diode (OLED) displays are inherently flexible — their thin-film organic electroluminescent layers deposited on flexible plastic substrates (typically polyimide, PI) can accommodate repeated bending. The challenge is maintaining electrical continuity and optical uniformity at the fold line across hundreds of thousands of fold cycles.

Testing: Electroluminescence uniformity mapping before and after cycling, electrical continuity testing, and spectral performance characterization.

Advanced Polymer Cover Films

Early foldable devices used protective polymer films (typically PET or PI-based) on the display surface. While more flexible than glass, these films are susceptible to scratching and permanent creasing at the fold line. Ongoing material development focuses on hard-coated polymer films that approach glass-like surface hardness while retaining flexibility.

Multi-Axis Hinge Mechanisms

The hinge is arguably the most mechanically complex component of a foldable device — managing the geometric change from flat to folded while protecting display layers from stress concentrations. Modern foldable hinges use multi-bar linkage mechanisms, cam-follower systems, or geared mechanisms to distribute bending strain over a larger radius and ensure synchronized folding across the full device width.

Testing: Hinge torque characterization, fold cycle fatigue (typically to 200,000–400,000 cycles), angular position repeatability, and debris ingress resistance.

Key Engineering Challenges

Display Crease Visibility

The most persistent consumer complaint about foldable devices is the visible crease at the fold line. Managing crease depth, width, and visibility requires optimization of display layer stiffness, adhesive modulus, and hinge geometry — a multi-material system optimization that demands extensive simulation and testing.

Durability and Fold Cycle Life

Consumer devices are expected to survive at least 200,000 cycles over their lifetime — approximately 100 cycles per day for 5–6 years. Each fold cycle imposes cyclic bending stress, shear stress at adhesive interfaces, and compression/tension reversal in display layers. Testing must validate performance across this cycle count under representative temperature and humidity conditions.

Ingress Protection

Traditional smartphone water resistance relies on sealed ports and continuous sealing interfaces. Foldable devices introduce a dynamic sealing challenge at the hinge — the interface that must seal against water and dust ingress while accommodating continuous mechanical motion. Achieving meaningful IP ratings (IP68) for foldable devices requires sophisticated dynamic seal designs validated through standardized ingress protection testing (IEC 60529).

Adhesive System Reliability

Multiple adhesive layers bond the display layers, cover glass, and structural components — all of which experience cyclic shear and peel stresses during folding. Adhesive selection, bond-line thickness optimization, and long-term adhesive creep behavior under sustained compression are critical reliability challenges that require lap-shear, peel, and cyclic-fatigue testing.

Thermal Management

Folding introduces thermal management complexity by interrupting thermal conduction pathways between the CPU/battery and the device exterior. Thermal simulation and thermal resistance testing are required to ensure adequate heat dissipation across the fold line under high-performance workloads.

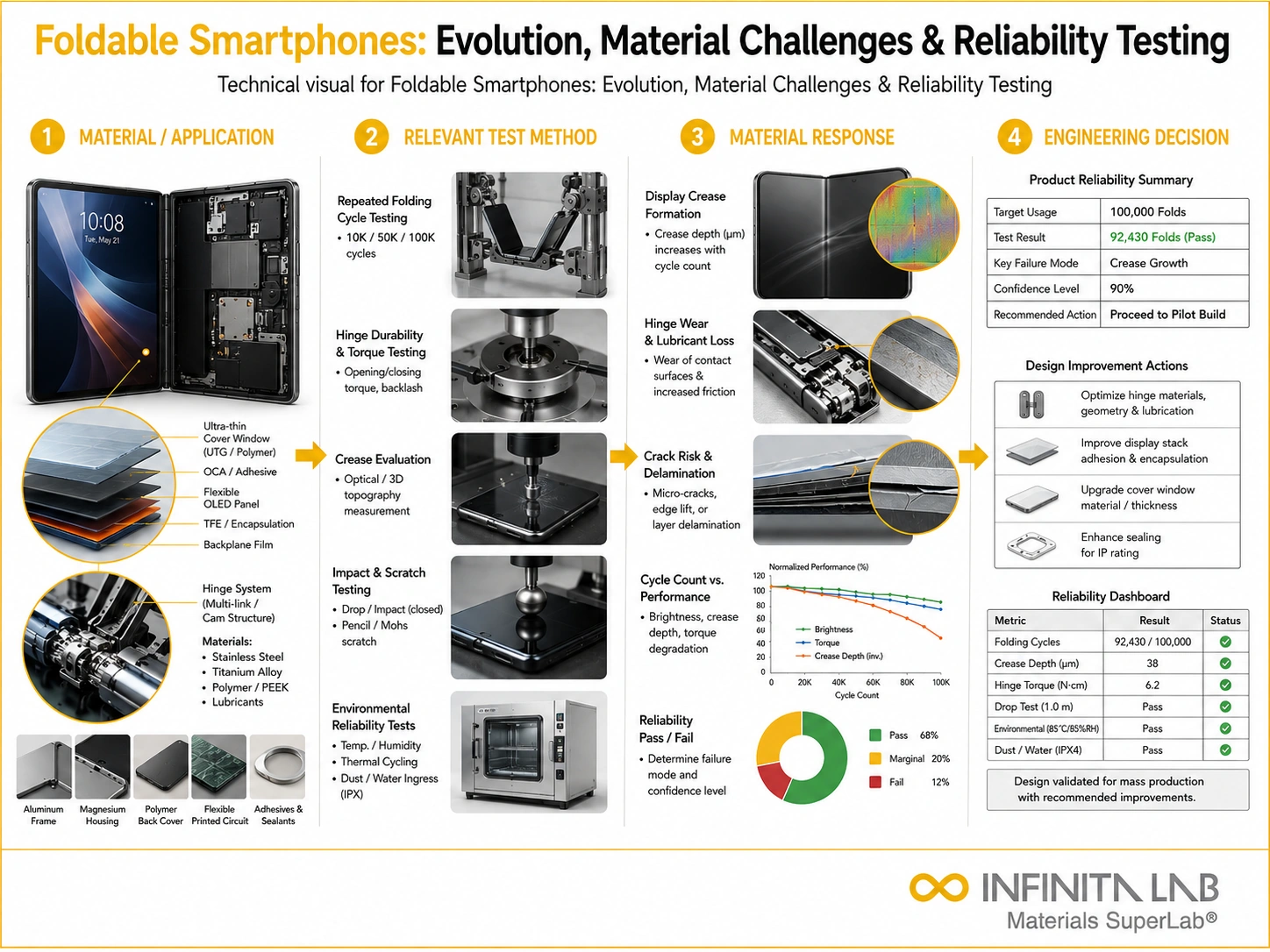

Material Testing in Foldable Device Development

Material and reliability testing for foldable smartphone development spans:

• Bend cycle fatigue testing of display stacks, cover materials, and hinge mechanisms
• Nano-indentation and scratch hardness testing of UTG and polymer cover films
• Adhesive lap shear and peel testing for folding interface adhesive qualification
• Ingress protection testing per IEC 60529 for dust and water resistance
• Drop testing per MIL-STD-810 and ASTM D5276 for shock resistance
• Thermal cycling and thermal resistance characterization
• Optical performance testing — transmittance, haze, reflectance, and color gamut measurement before and after cycling
• ESD and EMI testing for electromagnetic compliance

Conclusion

Foldable smartphone development — demanding the integration of ultra-thin glass, flexible OLED displays, advanced polymer films, and multi-axis hinge mechanisms capable of surviving 200,000+ fold cycles — represents one of the most materials-intensive reliability challenges in consumer electronics today. Validating each component and interface through bend cycle fatigue, adhesive characterization, ingress protection, drop, thermal, and optical testing is what determines whether a foldable device delivers the durability, display quality, and user experience required for long-term field reliability — making comprehensive material and reliability testing as central to foldable device development as any industrial design or software innovation.
