Top 5 Most Critical Medical Device Testing Methods

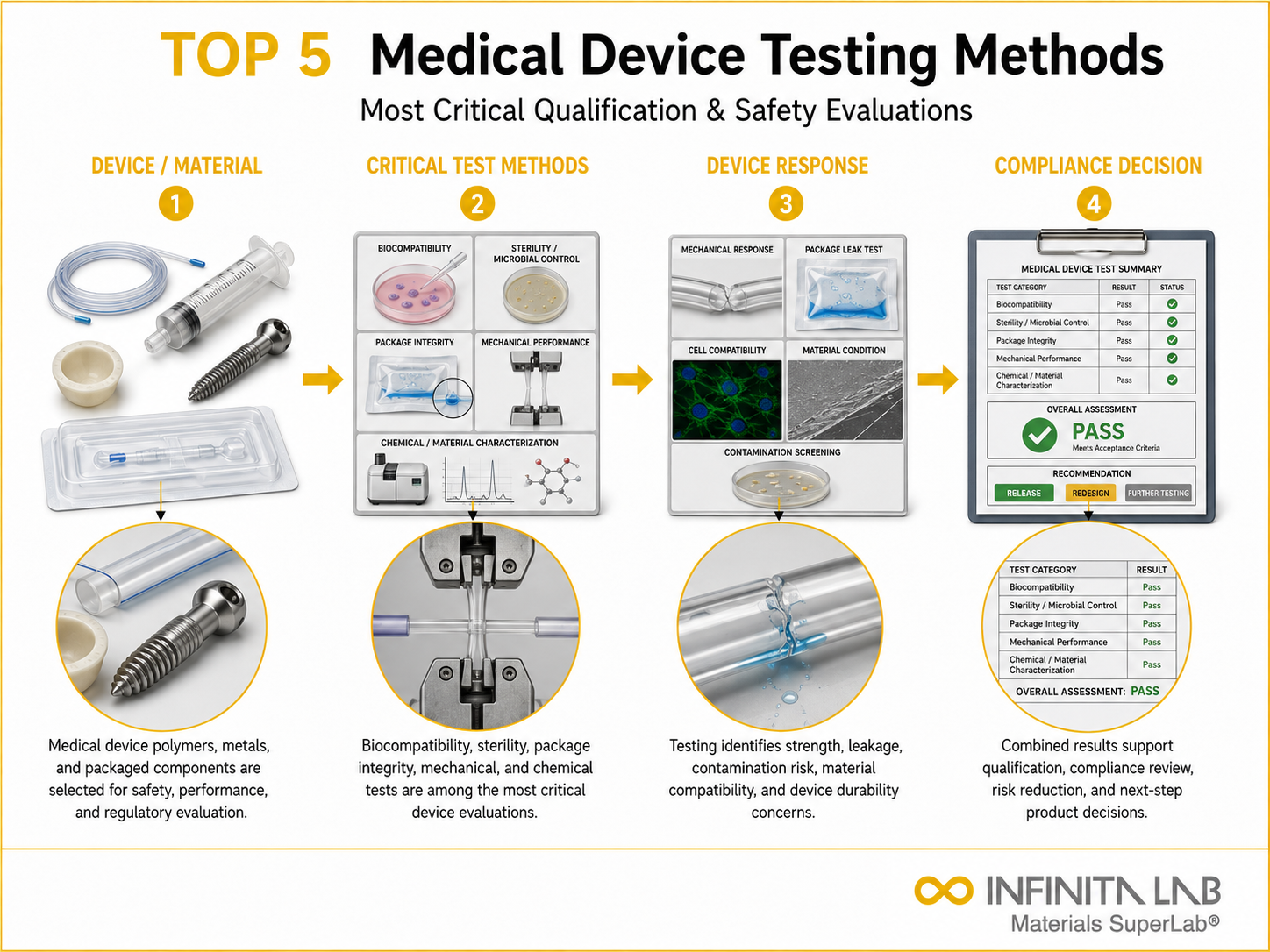

Representative Infinita Engineering Visual explaining the four-step workflow for Top 5 Most Critical Medical Device Testing Methods.What Is Medical Device Testing?
Medical device testing is the structured evaluation of a device’s mechanical, biological, electrical, and chemical performance to confirm it is safe and effective for its intended clinical use. Unlike most industrial products, medical devices are held to regulatory frameworks – FDA 21 CFR, ISO 13485, ISO 10993, IEC 60601 – that require documented, traceable test evidence before a device can reach patients. Testing spans everything from a single-use syringe to a fully implantable cardiac device, and the required test battery scales with the device’s risk classification and duration of patient contact.
Why Medical Device Testing Matters
A device failure in a clinical setting isn’t a warranty claim – it’s a patient safety event. Testing protects against:
- Biocompatibility issues causing inflammation, toxicity, or allergic reaction
- Mechanical failure of implants or instruments during use
- Electrical or software malfunction in powered devices
- Sterility failures leading to infection risk
- Non-compliance with FDA, MDR, or ISO regulatory submissions
Top 5 Medical Device Testing Methods
- Biocompatibility Testing (ISO 10993 series) – A panel of tests – cytotoxicity, sensitisation, irritation, systemic toxicity, and genotoxicity – evaluates how a device’s materials interact with human tissue over its intended contact duration. This is typically the first gating requirement for any device that touches the body.
- Mechanical and Fatigue Testing – Devices such as implants, catheters, and surgical instruments undergo tensile, fatigue, and durability testing to simulate years of cyclic loading (e.g., a spinal implant flexing millions of times) and confirm they won’t fracture or deform in service.
- Sterility and Bioburden Testing (ISO 11137, ISO 11135) – Validates that sterilisation methods (gamma irradiation, ethylene oxide, steam) reduce microbial load to the required sterility assurance level, and confirms bioburden on the device before sterilisation is within validated limits.
- Electrical Safety and EMC Testing (IEC 60601-1, IEC 60601-1-2) – For powered and electronic devices, this verifies protection against electric shock, leakage current, and electromagnetic interference that could affect device function or nearby equipment.
- Packaging and Shelf-Life Validation (ASTM F1980, ASTM D4169) – Confirms that sterile packaging maintains its barrier integrity through accelerated ageing, transportation shock, and vibration, ensuring the device remains sterile until point of use.
Medical Device Test Method Comparison
Test Category | Representative Method | Typical Standard |
|---|
Biological safety | Cytotoxicity, sensitisation, irritation | ISO 10993-5, -10, -23 |
Mechanical durability | Fatigue / tensile testing | ASTM F2077, ISO 5840 |
Sterility | Gamma / EO validation | ISO 11137, ISO 11135 |
Electrical safety | Leakage current, EMC | IEC 60601-1, -1-2 |
Packaging integrity | Accelerated ageing, shock/vibration | ASTM F1980, ASTM D4169 |
Applications by Device Type
- Implantable Devices – Orthopaedic implants, cardiac devices, and spinal hardware require extensive fatigue, biocompatibility, and corrosion testing given decades-long intended service life in the body.
- Diagnostic Equipment – Imaging and lab-analysis devices require electrical safety and EMC testing to ensure accurate, safe operation in clinical environments.
- Single-Use Disposables – Syringes, catheters, and surgical drapes are tested primarily for sterility, biocompatibility, and packaging integrity given their one-time use.
- Wearable and Connected Devices – Increasingly tested for electrical safety, software validation, and biocompatibility of skin-contact materials.
Industry Standards Referencing Medical Device Testing
- Biocompatibility: ISO 10993-1 through -23
- Sterilisation: ISO 11135 (ethylene oxide), ISO 11137 (radiation), ISO 17665 (steam)
- Electrical Safety: IEC 60601-1, IEC 60601-1-2
- Packaging: ASTM F1980, ASTM F88, ASTM D4169
- Quality Systems: ISO 13485, FDA 21 CFR Part 820
Advantages and Limitations
Advantages
- Provides the regulatory evidence required for FDA and international market clearance
- Identifies material or design risks before clinical exposure
- Builds a defensible safety and performance record for the device lifecycle
- Supports post-market surveillance and design-change validation
Limitations
- Full biocompatibility and clinical-equivalent testing can be lengthy and costly, especially for novel materials.
- Accelerated ageing studies for shelf life are estimates and require real-time confirmation.
- Regulatory requirements vary by region (FDA vs. EU MDR vs. other jurisdictions), often requiring duplicate or region-specific testing.
- Combination products (device + drug) may require additional, more complex test protocols.
Conclusion
Medical device testing is less a single checkbox than a layered safety case – biological, mechanical, electrical, and packaging evidence that together demonstrate a device will perform reliably in direct contact with patients. Building that case around recognised ISO, IEC, and ASTM methods is what allows a device to move from prototype to regulatory clearance to clinical use with confidence.
Frequently Asked Questions (FAQs)
Why is biocompatibility testing important? Biocompatibility testing evaluates whether device materials may cause irritation, sensitization, toxicity, or other harmful biological responses.
Which devices require electrical safety testing? Electrical and electronic medical devices require testing for electric shock, overheating, insulation failure, electromagnetic interference, and abnormal operating conditions.
What is mechanical performance testing? Mechanical testing evaluates properties such as strength, fatigue resistance, durability, impact resistance, leakage, and performance under expected use conditions.
What is sterilization validation? Sterilization validation demonstrates that the selected sterilization process consistently achieves the required sterility level without damaging the device.
How are medical devices tested for long-term reliability? Devices may undergo accelerated aging, fatigue testing, environmental conditioning, vibration, drop testing, and repeated-use simulations.
