Medical Device Safety: Physical Property Testing & Regulatory Requirements
The safety of medical devices is not aspirational — it is a regulatory obligation and an ethical imperative. Every material used in a medical device, from the polymer housing of an external monitor to the metal alloy of an implanted joint, must be demonstrated to be safe through systematic, evidence-based testing before the device can be placed on the market. Material testing for medical device safety encompasses a broad range of analytical, mechanical, chemical, and biological evaluations that collectively confirm a device will not harm the patient it is intended to help.
Why Material Testing Is Foundational to Medical Device Safety
Medical devices interact with the human body in ways that range from brief skin contact to decades-long implantation. The consequences of material failure — whether mechanical fracture, chemical leaching, biological incompatibility, or electrical insulation failure — can range from device malfunction to patient injury or death. Rigorous material testing provides the scientific evidence that a device’s materials are safe and fit for their intended use.
Material testing for medical device safety addresses three principal areas:
Mechanical integrity: Does the device withstand the loads, deformations, and stresses of its intended use without fracturing, deforming excessively, or fatiguing to failure?
Chemical safety: Do the materials leach harmful substances into body fluids or tissues at levels that could cause toxicological harm?
Biological compatibility: Do the materials interact acceptably with living cells, tissues, and biological systems — neither causing direct harm nor triggering inappropriate immune or inflammatory responses?
Key Material Testing Categories for Medical Devices
Biocompatibility Testing (ISO 10993)
ISO 10993 is the international framework for evaluating the biological safety of medical devices and their materials. It defines a comprehensive testing strategy based on the nature and duration of body contact. Key biological tests include:
- Cytotoxicity testing (ISO 10993-5): Exposing cell cultures to material extracts to assess whether the material kills or inhibits the growth of cells — the most fundamental biocompatibility screen
- Sensitization testing (ISO 10993-10): Guinea pig maximization or local lymph node assay to detect potential allergic sensitization
- Systemic toxicity testing (ISO 10993-11): Acute, subacute, and subchronic systemic toxicity assessment
- Genotoxicity (ISO 10993-3): Mutagenicity and clastogenicity assessment for implanted or long-contact materials
- Implantation testing (ISO 10993-6): In vivo assessment of tissue reactivity to implanted materials
- Hemocompatibility (ISO 10993-4): For devices contacting blood, hemolysis, thrombogenicity, and complement activation
Extractable and Leachable Testing
Chemical extraction studies identify and quantify compounds that can leach from device materials into physiological fluids or simulated body fluids. This testing uses FTIR, GC-MS, ICP-MS, and LC-MS/MS analytical techniques to characterize and quantify extractable compounds. Toxicological risk assessment is then applied to determine whether leachable levels present an unacceptable risk.

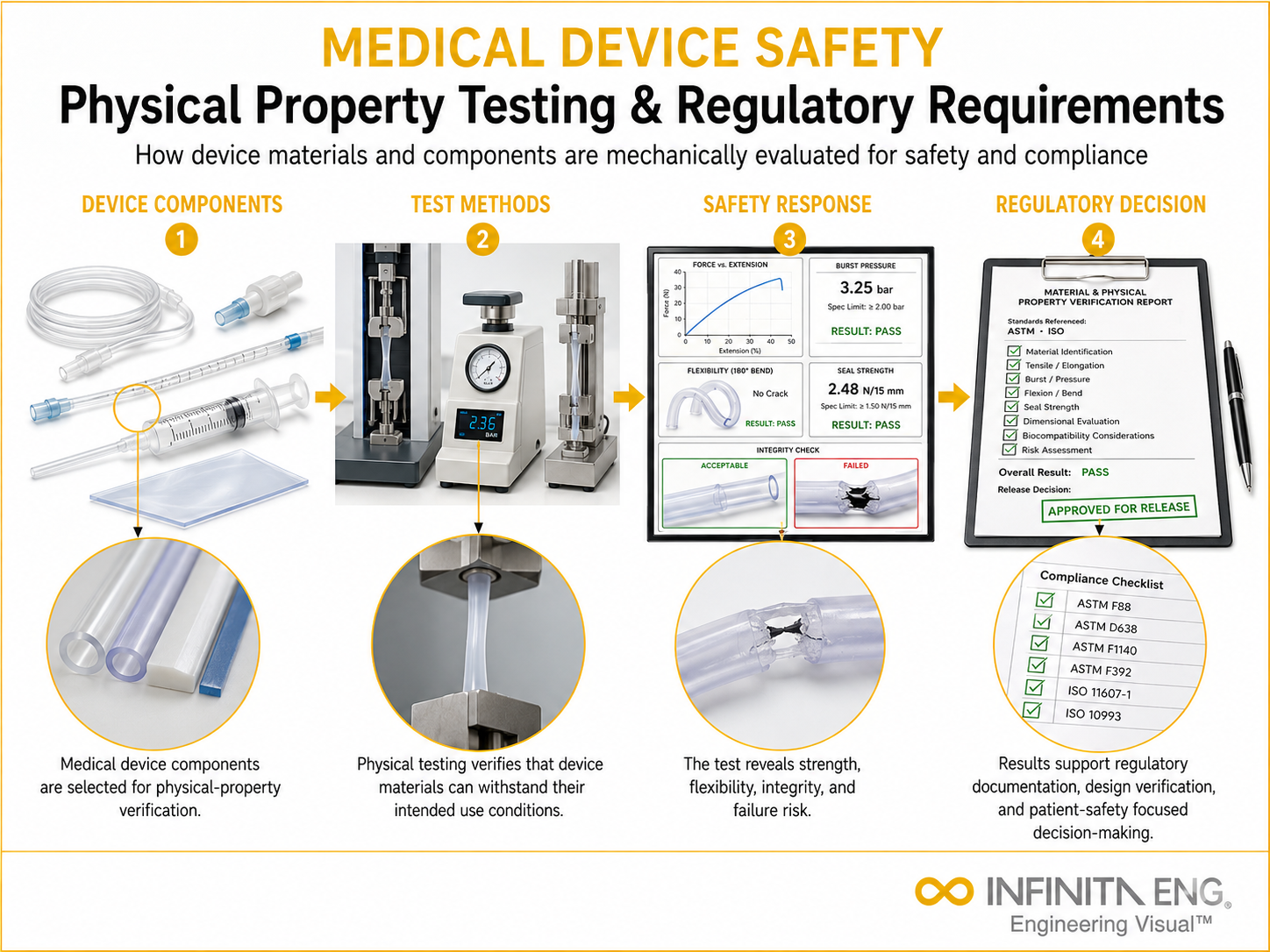

Mechanical Testing
Mechanical failure of a medical device can cause direct patient injury. Key mechanical tests include:
- Tensile testing (ASTM D638 for polymers, ASTM E8 for metals): Strength and ductility qualification
- Fatigue testing: Simulating cyclic loading of implants (hip, knee, spine) under physiological loading conditions per ISO 14801, ISO 7206
- Fracture toughness: For implants and bone cement, where crack resistance is critical
- Hardness testing: For wear-resistant surfaces in joint replacement
Sterilization Compatibility
Medical devices must maintain their safety and functionality after the sterilization processes they will undergo. Steam autoclave (ISO 11135), ethylene oxide (ISO 11135), gamma radiation (ISO 11137), and e-beam sterilization all affect material properties differently. Mechanical property retention, dimensional stability, and chemical integrity after sterilization cycles must be demonstrated.
Electrical Safety Testing
For powered medical devices, electrical safety per IEC 60601-1 requires dielectric strength testing of insulation systems, leakage current measurement, and protection against electrical shock to the patient and user.
Regulatory Framework
In the United States, the FDA regulates medical devices under 21 CFR and expects manufacturers to follow ISO 10993 guidance for biocompatibility evaluation. In the EU, the Medical Device Regulation (MDR, EU 2017/745) mandates conformity assessment against harmonized standards, including ISO 10993. Regulatory submissions must be supported by comprehensive material testing documentation.
Infinita Lab’s Medical Device Material Testing Services
Infinita Lab provides comprehensive medical device material testing — biocompatibility (cytotoxicity, sensitization, systemic toxicity), extractables/leachables, mechanical testing, sterilization compatibility, and electrical safety testing — through its nationwide accredited laboratory network. Expert materials scientists guide test strategy development, execution, and regulatory documentation support.
Contact Infinita Lab: (888) 878-3090 | www.infinitalab.com
Frequently Asked Questions (FAQs)
What is the primary international standard for medical device biocompatibility testing? ISO 10993 — Biological Evaluation of Medical Devices — is the primary international standard. It provides a risk-based framework for selecting appropriate biological tests based on the device's contact type (skin, mucosal, blood) and contact duration (limited, prolonged, permanent).
What is cytotoxicity testing and why is it the first biocompatibility test performed? Cytotoxicity testing (ISO 10993-5) exposes cell cultures to material extracts to determine whether the material kills or inhibits cell growth. It is the most sensitive and cost-effective initial screen — a cytotoxic material would fail all other biocompatibility tests and should not proceed to clinical use.
What are extractables and leachables in medical device testing? Extractables are chemical compounds that can be removed from a device material under controlled extraction conditions. Leachables are compounds that actually migrate from the device into physiological fluids under use conditions. Both must be characterized and assessed for toxicological risk in the regulatory submission.
Why do medical devices need sterilization compatibility testing? Sterilization processes (steam, EtO, radiation) can affect polymer mechanical properties, cause dimensional changes, alter surface chemistry, and generate new leachable compounds. Testing confirms that the device maintains safety, functionality, and biocompatibility after the specified sterilization process and the defined number of cycles.
How does Infinita Lab support medical device regulatory submissions? Infinita Lab provides comprehensive material testing to ISO 10993, ASTM, IEC 60601, and ISO standards, with test reports formatted to support FDA 510(k), PMA, and EU MDR regulatory submissions. Expert consultants guide biocompatibility test strategy development to meet regulatory expectations efficiently.
