The Telebrineller Hardness Tester: How It Works and When to Use It

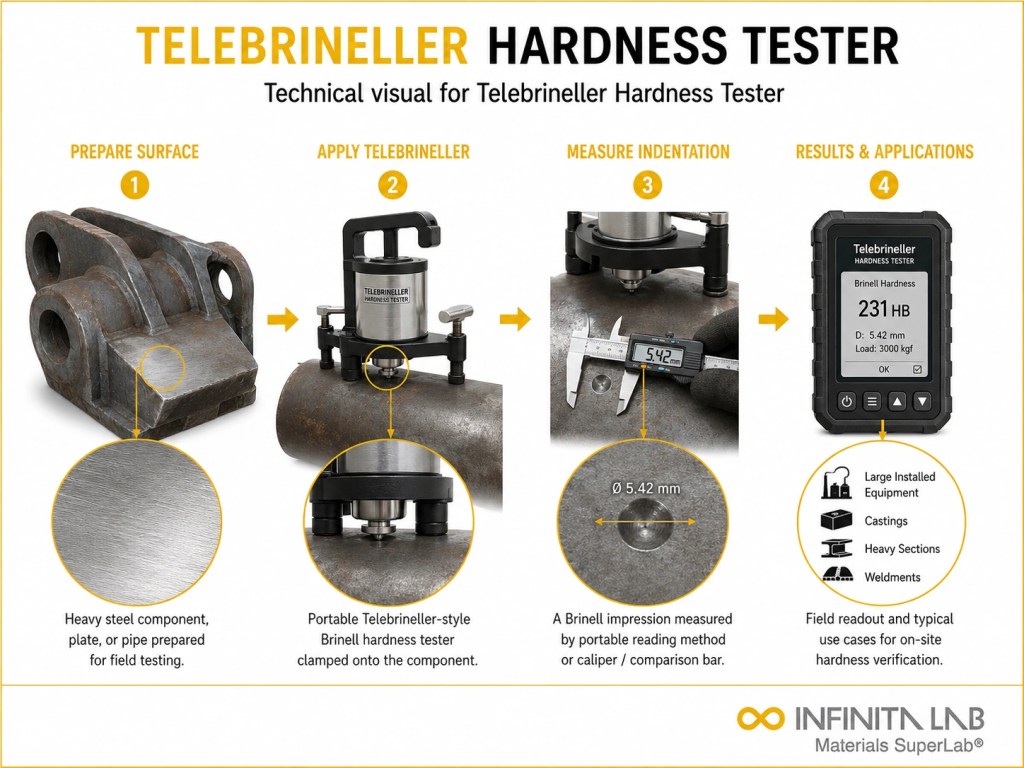

Representative Infinita Engineering Visual explaining the four-step workflow for Telebrineller Hardness Tester.What Is Telebrineller Hardness Testing?
The Telebrineller is a portable, comparative hardness testing method covered under ASTM E110, the Standard Test Method for Rockwell and Brinell Hardness of Metallic Materials by Portable Hardness Testers. It’s used to check Brinell hardness directly on large, heavy, or fixed-in-place components — structural steel, pressure vessels, castings, and weldments — that can’t be moved to a benchtop Brinell tester.
Working Principle
A hammer blow simultaneously drives a steel ball indenter into both the test piece and a reference bar of known hardness, side by side. The resulting indentation diameters are compared, and hardness is calculated from the ratio: HB(test) = HB(reference) x (d_reference^2 / d_test^2). Indentation diameters are measured with a calibrated optical scope with a graduated reticle.
Test Procedure
- Select a reference bar with a known Brinell hardness close to the expected hardness of the test piece
- Prepare the test surface: flat, smooth, and free of scale, paint, or loose material — light grinding or filing is typically needed
- Position the tester so the ball indenter contacts both the reference bar and the test surface
- Strike the tester with a hammer to create simultaneous indentations
- Measure both indentation diameters under the optical scope
- Calculate hardness using the ratio formula above
Accuracy and Application Range
The Telebrineller is inherently less precise than a laboratory Brinell tester, with typical accuracy of +/-5-15% of true Brinell hardness depending on surface finish, operator technique, and reference bar quality. It’s effective on ferrous metals and some non-ferrous alloys in the approximate 80-400 HBW range; very hard materials may not produce a measurable indentation at standard impact force. It’s also usable on weld metal, provided surface prep requirements are met.
Industry Specifications Referencing Telebrineller/Portable Hardness Testing
- ASTM E110: governing standard for portable Brinell and Rockwell hardness testing
- ASTM A370: references portable hardness methods for structural steel mechanical testing
- ASTM E10: the fixed-instrument Brinell method the Telebrineller approximates
Also Read – Polymer Hardness Testing: Common Uses, Methods & Scale Selection
Conclusion
Telebrineller testing trades some precision for the ability to check hardness in the field, in-situ, without cutting samples from large or immovable structures. It’s best used as a comparative screening tool — for critical acceptance decisions, results should be corroborated with fixed Brinell or Rockwell testing where practical.
How does a Telebrineller tester work? A hammer impact creates indentations in both the test material and a calibrated reference bar. Their diameters are compared to calculate hardness.
What materials can be tested? It is commonly used on steel, cast iron, forgings, castings, welds, aluminium alloys, and other metals.
Is Telebrineller testing destructive? It is minimally destructive because it leaves a small permanent indentation on the test surface.
How should the test surface be prepared? The surface should be clean, smooth, flat, and free from paint, rust, oil, scale, and coatings.
How is the hardness value calculated? The hardness is calculated using the known hardness of the reference bar and the measured diameters of both indentations.
