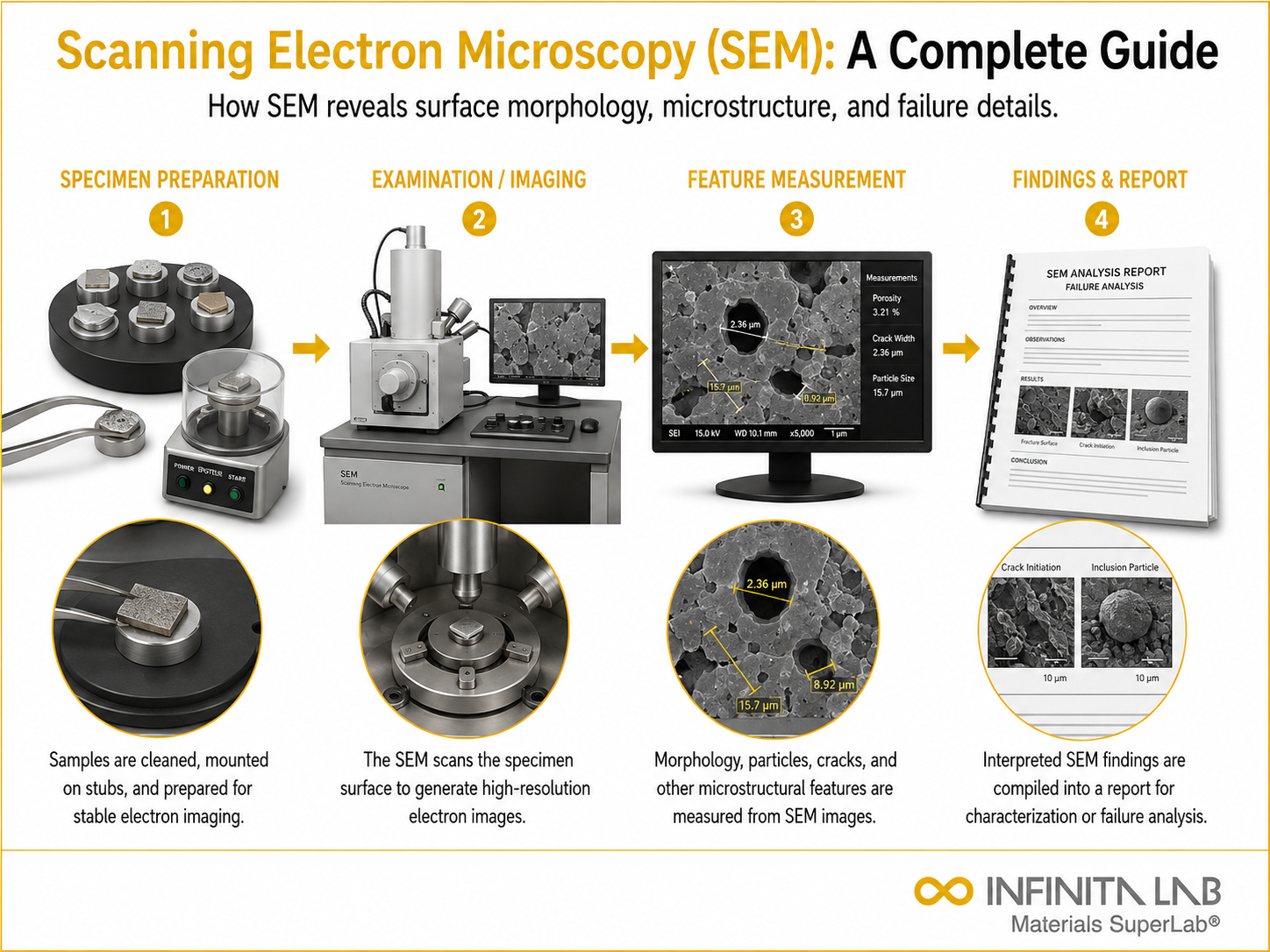

Scanning Electron Microscopy (SEM): A Complete Guide
What Is Scanning Electron Microscopy?
Scanning electron microscopy (SEM) is a high-resolution imaging technique that uses a focused electron beam to generate surface images and elemental data from a specimen. Unlike optical microscopy, which is limited to roughly 1,000x magnification by the wavelength of visible light, SEM routinely operates at 10,000x to 100,000x with nanometer-scale resolution. It is the standard tool for fracture surface characterisation, particle morphology, coating cross-section examination, contamination identification, and microstructural analysis across materials science, failure analysis, electronics, and biology.
SEM is particularly valuable in failure analysis because it reveals fracture morphology – the surface features that distinguish fatigue from overload, intergranular from transgranular cracking, brittle from ductile failure – at the resolution needed to identify the operative mechanism. Combined with energy dispersive X-ray spectrometry (EDS), SEM also identifies the chemical composition of features at the microstructural scale.
How SEM Works
An electron gun generates a beam of electrons at accelerating voltages between 1 kV and 30 kV. Electromagnetic lenses focus the beam to a spot size of a few nanometers and scan it across the specimen in a raster pattern. As the beam interacts with the specimen, it generates signals collected by detectors positioned around the sample chamber. The intensity of these signals at each scan position builds the image pixel by pixel.
The specimen must be electrically conductive to prevent charge buildup that distorts the image. Non-conductive materials – polymers, ceramics, biological tissue – are typically sputter-coated with gold, gold-palladium, or carbon before examination. Environmental SEM (ESEM) and low-vacuum modes allow imaging of non-conductive or hydrated specimens without coating, at reduced resolution.
SEM Techniques and Signals
Secondary Electron Imaging (SEI)
Secondary electrons are low-energy electrons emitted from the near-surface region. They are sensitive to surface topography – edges appear bright, recesses appear dark – producing the three-dimensional appearance characteristic of SEM images. SEI is the primary mode for fracture surface examination, particle morphology, and surface texture analysis. Resolution is typically 1-5 nm on modern field emission SEMs.
Backscattered Electron Imaging (BSE)
Backscattered electrons are beam electrons reflected from deeper in the specimen. Their yield increases with atomic number, so heavier elements appear brighter. BSE imaging provides compositional contrast that reveals phase distributions, inclusions, and segregation not visible in SEI. In metallographic cross-sections, BSE clearly distinguishes phases, coatings, and interfacial layers by composition rather than topography.
Energy Dispersive X-Ray Spectrometry (EDS/EDX)
When the electron beam ionises atoms in the specimen, characteristic X-rays are emitted at element-specific energies. An EDS detector collects these X-rays and produces a spectrum identifying elements present. EDS provides qualitative and semi-quantitative elemental analysis of features as small as 1 micron. It identifies corrosion products, contaminants, inclusion chemistry, and coating composition. EDS mapping produces element distribution images across the field of view.
EBSD and WDS
Electron backscatter diffraction (EBSD) indexes crystal orientations at each scan point, producing grain orientation maps and texture analysis. Wavelength dispersive X-ray spectrometry (WDS) provides higher spectral resolution and better quantitative accuracy than EDS for elements that overlap in the EDS spectrum and for light elements (carbon, nitrogen, oxygen) at low concentrations. Both require specialised detectors on research-grade SEMs.
Industry Specifications
- Failure Analysis: ASTM E1351 (fracture surface examination), ASTM G161 (corrosion failure examination)
- Coating and Thin Film: ASTM B748 (coating thickness by SEM cross-section), ASTM E2109 (image analysis)
- Particle Analysis: ISO 13322-1 (particle size by image analysis), ASTM F1877 (wear particle characterisation)
- Electronics: SEMI standards for defect review SEM, ASTM F1810
- Biological and Medical: ISO 10993-19, ASTM F1854 (porosity of thermal spray)
- Metallography: ASTM E3 (metallographic specimen preparation), ASTM E407 (microetching)
Conclusion
SEM bridges optical microscopy and analytical chemistry at the microstructural scale. SEI reveals surface topography and fracture morphology at nanometer resolution. BSE imaging adds compositional contrast. EDS identifies the chemistry of individual features. Together they answer the questions that drive failure analysis, materials characterisation, and process development: what does the surface look like, what phases are present, and what elements are where.
What is the resolution limit of SEM compared to optical microscopy? Optical microscopy is limited to roughly 200 nm resolution and about 1,000x useful magnification by the wavelength of visible light. FEG-SEM achieves 1-5 nm resolution at up to 500,000x magnification. For routine materials failure work, 10-20 nm resolution at 10,000-50,000x covers the full range of relevant microstructural features.
Does SEM analysis require sample destruction? SEM preparation is minimally destructive for most specimens. A small section cut from the component, polished for cross-section work, or examined as-received for fracture surfaces is all that is needed. The examination itself does not consume the sample. For irreplaceable specimens or legal evidence, low-vacuum or ESEM modes can image without coating and the sample can be retained unaltered after examination.
What is the difference between EDS and WDS for elemental analysis? EDS collects all X-ray energies simultaneously and is fast, covering all elements above boron in a single acquisition, but has limited energy resolution (about 130 eV) that causes peak overlaps. WDS uses a diffracting crystal to select one wavelength at a time, providing about 10x better energy resolution, lower detection limits, and more accurate quantitation. WDS is preferred for light elements, sub-0.1 wt% concentrations, and where EDS peak overlaps prevent reliable identification.
How should fracture surfaces be prepared for SEM examination? Fracture surfaces should be submitted as-received without cleaning. Corrosion products and surface deposits carry information about the failure environment. If cleaning is necessary, the laboratory should use controlled methods - ultrasonic cleaning in appropriate solvents or replication techniques. Physical abrasion or wire brushing of fracture surfaces permanently destroys the diagnostic features.
Can SEM identify polymers and organic materials? SEM can image polymer morphology, fracture surfaces, and fiber-matrix interfaces with high resolution, but EDS cannot identify organic compounds - carbon, hydrogen, and oxygen are present in virtually all polymers, and EDS cannot distinguish them chemically. Polymer identification requires FTIR or Raman spectroscopy. SEM and EDS are used on polymers to characterize morphology, identify inorganic fillers and pigments, and detect surface contamination.
