What Is VOC Testing?
VOC testing measures the identity and concentration of volatile organic compounds emitted from materials, products, or air samples. Volatile organic compounds are carbon-based chemicals that evaporate readily at room temperature and can accumulate in enclosed spaces, contributing to indoor air quality problems, regulatory non-conformance, and product rejection. Common VOCs include formaldehyde, benzene, toluene, xylene, acetaldehyde, and a broad range of solvents and plasticisers that off-gas from adhesives, coatings, flooring, furniture, and building materials.
The scope of VOC testing depends on the application. Indoor air quality programs measure total VOC (TVOC) concentration and speciate individual compounds against health-based limits. Product emission testing measures what a specific material releases under defined temperature and humidity conditions. Regulatory testing under RoHS, REACH, or California Proposition 65 screens for specific compounds at parts-per-million or parts-per-billion thresholds. Each application drives a different test method and reporting format.

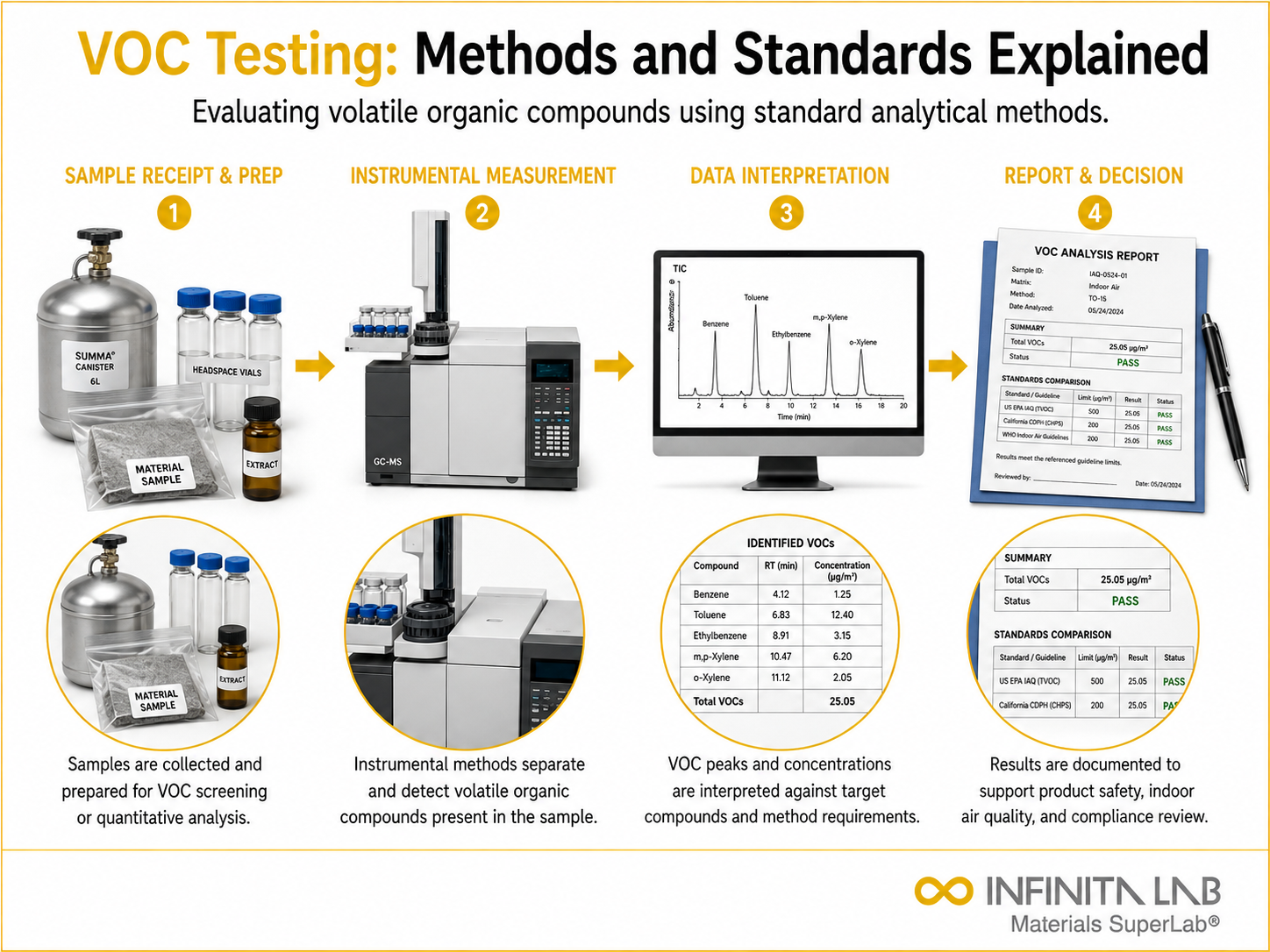

VOC Testing Methods
Gas Chromatography – Mass Spectrometry (GC-MS)
GC-MS is the primary analytical method for VOC identification and quantification. Compounds are separated by gas chromatography and identified by their mass spectrum against reference libraries. It can detect hundreds of compounds in a single run at concentrations in the low microgram-per-cubic-meter range. EPA Method TO-15 uses GC-MS with Summa canister air sampling for indoor air VOC analysis. EPA Method TO-17 uses sorbent tube sampling with thermal desorption for lower-concentration work.
Chamber Emission Testing
Chamber emission testing measures VOCs released from a product sample under controlled temperature, humidity, and air exchange conditions. The sample is placed in a sealed test chamber – typically 1 m3 for furniture and building products – and air is sampled at defined intervals. ASTM D5116 covers small-scale environmental chamber testing for building materials. ISO 16000-9 and ISO 16000-11 govern chamber methods used for European indoor air quality programs and product labels such as EMICODE and the French VOC labeling regulation (A+/A/B/C).
Also Read – What Is Total Organic Carbon (TOC) Testing?
HPLC for Carbonyl Compounds
Formaldehyde and other carbonyl compounds are poorly resolved by standard GC-MS methods. High-performance liquid chromatography (HPLC) with DNPH (2,4-dinitrophenylhydrazine) derivatisation is the standard approach. Air is drawn through a DNPH cartridge, and the hydrazone derivatives are analysed by HPLC with UV detection. EPA Method TO-11A and ASTM D5197 cover this approach. Formaldehyde is separately regulated in many products – furniture, composite wood, textiles – under CARB ATCM 93120 and EPA TSCA Title VI.
Headspace and Thermal Desorption GC-MS
For solid materials and products, headspace analysis or thermal desorption extracts VOCs from the sample matrix before GC-MS analysis. Dynamic headspace involves purging the sample with an inert gas and trapping emissions on a sorbent tube, which is then thermally desorbed into the GC. This approach is used for automotive interior materials (VDA 278, BMW GS 97014), electronics components, and packaging. It measures what a product can emit rather than what is in its ambient air environment.
Industry Specifications
- Indoor Air Quality: EPA Method TO-15, TO-17, TO-11A; ISO 16000-9, 16000-11; ASTM D5116
- Automotive Interiors: VDA 278 (thermal desorption), VDA 275 (formaldehyde), BMW GS 97014, GMW15634
- Building and Furniture Products: CARB ATCM 93120 (formaldehyde), ASTM D5197, French VOC labelling (ISO 16000)
- Electronics: IEC 62321 (RoHS restricted substances), JEDEC JESD22-A119 (outgassing)
- Consumer Products: California Proposition 65, REACH SVHC list, CPSC VOC guidance
- Workplace Air: OSHA PEL methods, NIOSH 1500 (hydrocarbons), NIOSH 2549 (VOC screening)
Also Read – What Is SIMS (Secondary Ion Mass Spectrometry)? Principle & Applications
Conclusion
VOC testing is not one method – it is a family of techniques matched to the application. GC-MS identifies and quantifies individual compounds at trace concentrations. Chamber testing measures product emissions under controlled conditions. HPLC handles formaldehyde and carbonyls that GC-MS cannot resolve. Thermal desorption reaches VOCs bound in solid materials. The method selected determines what you can detect, at what concentration, and whether the result meets the specific regulatory or customer requirement driving the test.
What are VOCs? Volatile organic compounds are carbon-containing chemicals that evaporate readily at room temperature. They include solvents, fragrances, formaldehyde, and hundreds of other compounds found in building materials, paints, and consumer products.
What methods are used to test for VOCs? GC-MS (EPA TO-15), GC-FID, HPLC (for formaldehyde), environmental chamber emission testing (ASTM D5116), and EPA Method 24 (coating VOC content) are primary VOC testing methods.
What regulations govern VOC emissions? EPA Clean Air Act, OSHA PELs, California CARB/CDPH standards, EU Directive 2004/42/EC (paint VOC limits), LEED/WELL building requirements, and automotive OEM specifications regulate VOC content and emissions.
Why is VOC testing important for buildings? VOCs from building materials cause sick building syndrome, headaches, respiratory irritation, and long-term health effects. Low-VOC material selection verified by testing ensures healthy indoor environments and supports green building certifications.
What is the California CDPH Standard Method? California Department of Public Health Standard Method v1.2 specifies chamber testing and VOC emission limits for building materials, furniture, and finishes. Compliance is required for LEED v4 and many institutional procurement specifications.
