What Is Nanoparticle Tracking Analysis (NTA)? Principles & Applications
Introduction to Nanoparticle Tracking Analysis
Nanoparticle Tracking Analysis (NTA) is a direct, real-time analytical technique for measuring the size distribution and number concentration of nanoparticles in liquid suspension by tracking the Brownian motion of individual particles under a microscope. Unlike ensemble techniques (DLS, laser diffraction) that average the behaviour of millions of particles simultaneously, NTA tracks each particle individually — providing high-resolution size distributions, absolute particle number concentration, and, with fluorescence detection, the ability to specifically characterise labelled subpopulations within complex mixtures.

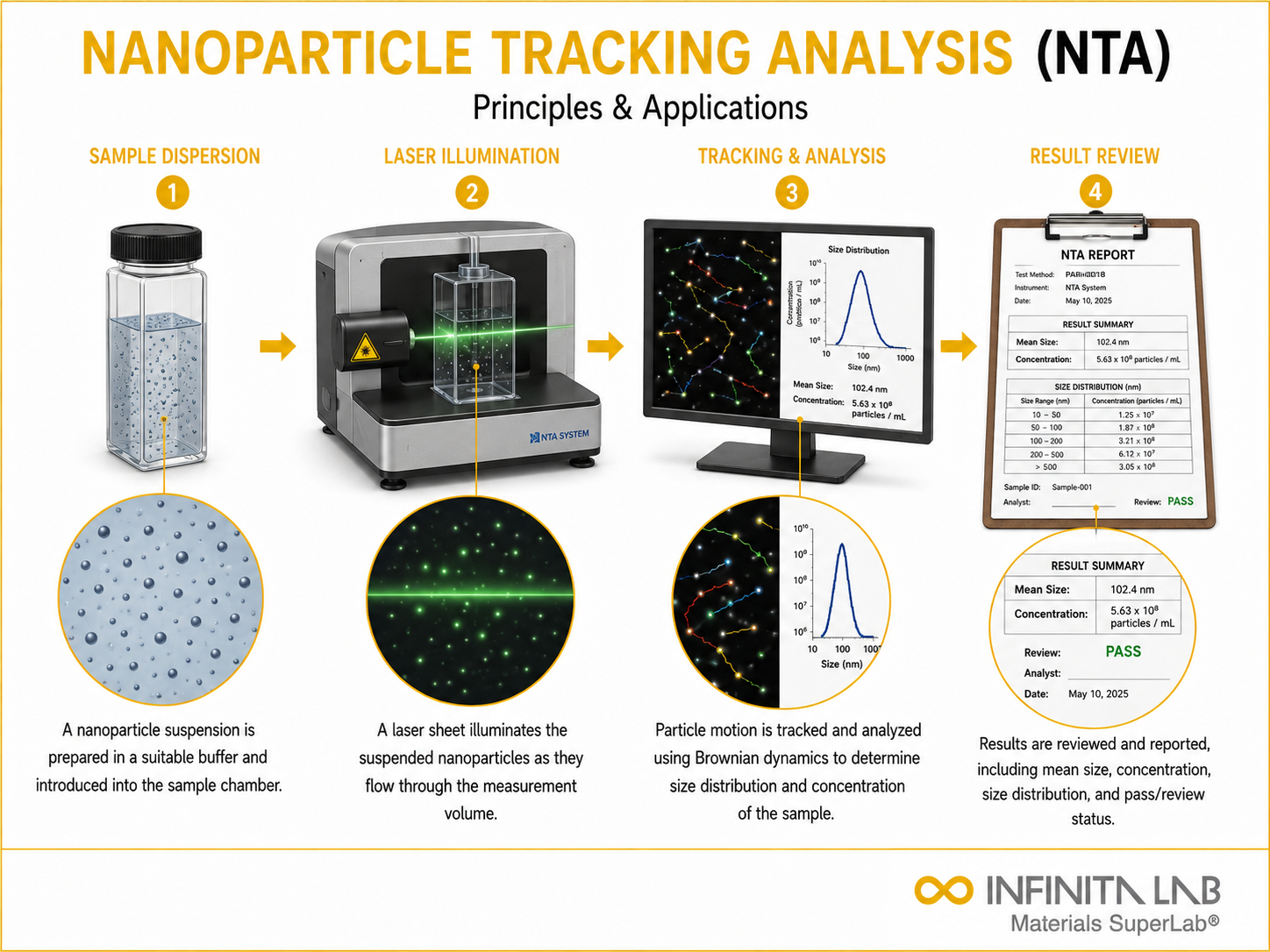

Principle of NTA
A thin laser beam illuminates a small volume of the nanoparticle suspension. Nanoparticles scatter light as they move through the illuminated zone, producing bright spots against a dark background that are tracked frame-by-frame using a sensitive CCD or CMOS camera (typically at 30 fps). Custom particle-tracking software detects each particle centroid and calculates its mean squared displacement (MSD) from frame-to-frame movements.
The Stokes-Einstein equation relates each particle’s diffusion coefficient (calculated from MSD) to its hydrodynamic diameter:
D = kT / (3πηd_H)
By tracking and calculating the size of each particle, NTA produces a number-weighted size distribution (unlike DLS’s intensity-weighted output) and determines the total particle number concentration (particles/mL) — providing absolute count data without reference standards.
Comparison of NTA with DLS
Feature | NTA | DLS |
Size range | 10–2000 nm | 0.3 nm–10 µm |
Size weighting | Number-weighted | Intensity-weighted |
Polydisperse resolution | Good (populations >2× diameter apart) | Limited |
Number concentration | Absolute (particles/mL) | Not provided |
Aggregate sensitivity | Moderate | Very high (biased toward large) |
Fluorescence capability | Yes (FNT mode) | No |
Throughput | ~1–3 min/sample | 1–2 min/sample |
Key Applications of NTA
Extracellular Vesicle (EV) Characterisation
NTA is the recommended method for characterising extracellular vesicles (exosomes, microvesicles) per the International Society for Extracellular Vesicles (ISEV) MISEV guidelines. EVs range from 30–1000 nm — ideal for NTA measurement. NTA provides the size mode, size distribution, and particle concentration (particles/mL or particles/µg protein) — critical characterisation data for EV-based diagnostics and therapeutic delivery systems.
Virus and Vaccine Characterisation
NTA characterises virus-like particles (VLPs), viral vectors (AAV, lentivirus, adenovirus), and vaccine adjuvant nanoparticles for size, polydispersity, and concentration. Concentration data is particularly important for viral vector titration in gene therapy manufacturing — verifying the physical particle count per mL used for dosing calculations.
Nanoparticle Drug Delivery
Liposomes, polymeric nanoparticles, solid lipid nanoparticles, and inorganic nanoparticle carriers for drug delivery are characterised by NTA for size distribution, concentration, and colloidal stability. Number concentration provides the active particle dose — distinct from the mass concentration typically used for pharmaceutical raw material dosing.
Fluorescence NTA (f-NTA) for Selective Detection
f-NTA uses fluorescence-labelled antibodies or dyes to specifically illuminate and track labelled subpopulations — detecting, for example, CD63⁺ exosomes within a complex biological fluid containing lipoproteins, protein aggregates, and other nanoparticle populations at similar sizes. This specificity is a key advantage of NTA over non-selective size measurement techniques.
Industrial Applications
In nanomaterial quality control, NTA provides rapid batch-to-batch comparison of nanoparticle size distributions and concentration — ensuring process consistency in colloidal synthesis. In biological manufacturing, NTA tracks nanoparticle drug carrier production and stability during process scale-up.
Conclusion
Nanoparticle Tracking Analysis is a highly effective technique for real-time measurement of nanoparticle size distribution and concentration in liquid suspensions. By individually tracking particle Brownian motion, NTA offers superior resolution for polydisperse systems and provides absolute particle counts that are not available from many other techniques. Its applications in exosome research, viral vector analysis, drug delivery systems, and nanomaterial quality control make it an essential tool across modern research and industrial laboratories.
Why Choose Infinita Lab for NTA and Nanoparticle Characterisation?
With Infinita Lab (www.infinitalab.com), you are guaranteed a Nationwide Network of Accredited Laboratories spread across the USA, the best Consultants from around the world, Convenient Sample Pick-Up and Delivery, and Fast Turnaround Time.
Our team understands the stakes and subtleties of every test. Whether you’re validating a new Product, de-risking a prototype, or navigating complex compliance requirements, our specialists guide the process with rigour and clarity.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is Nanoparticle Tracking Analysis used for? Nanoparticle Tracking Analysis (NTA) is used to measure the size distribution and concentration of nanoparticles in liquid suspension. It is widely applied in nanomaterials research, pharmaceutical formulations, extracellular vesicle analysis, viral vector characterisation, and colloidal quality control.
How is NTA different from DLS? The main difference is that NTA tracks individual particles one by one, while Dynamic Light Scattering (DLS) measures the average scattering behaviour of a large particle population. This allows NTA to provide number-based size distribution and absolute particle concentration, whereas DLS gives an intensity-weighted average size.
What particle size range can NTA measure? NTA typically measures particles in the size range of 10 nm to 2000 nm, depending on particle material, refractive index, and instrument sensitivity. It is especially effective for nanoparticles, exosomes, liposomes, and viral particles.
Can NTA measure particle concentration? Yes, one of the major advantages of NTA is that it provides absolute particle number concentration, usually reported as particles per millilitre (particles/mL). This is particularly useful for dose calculations in drug delivery and biologics.
What industries use NTA testing? NTA is commonly used in pharmaceuticals, biotechnology, nanotechnology, medical diagnostics, vaccine development, and materials research for nanoparticle quality control and formulation characterisation.
