The Disciplines of Metal Testing, Explained

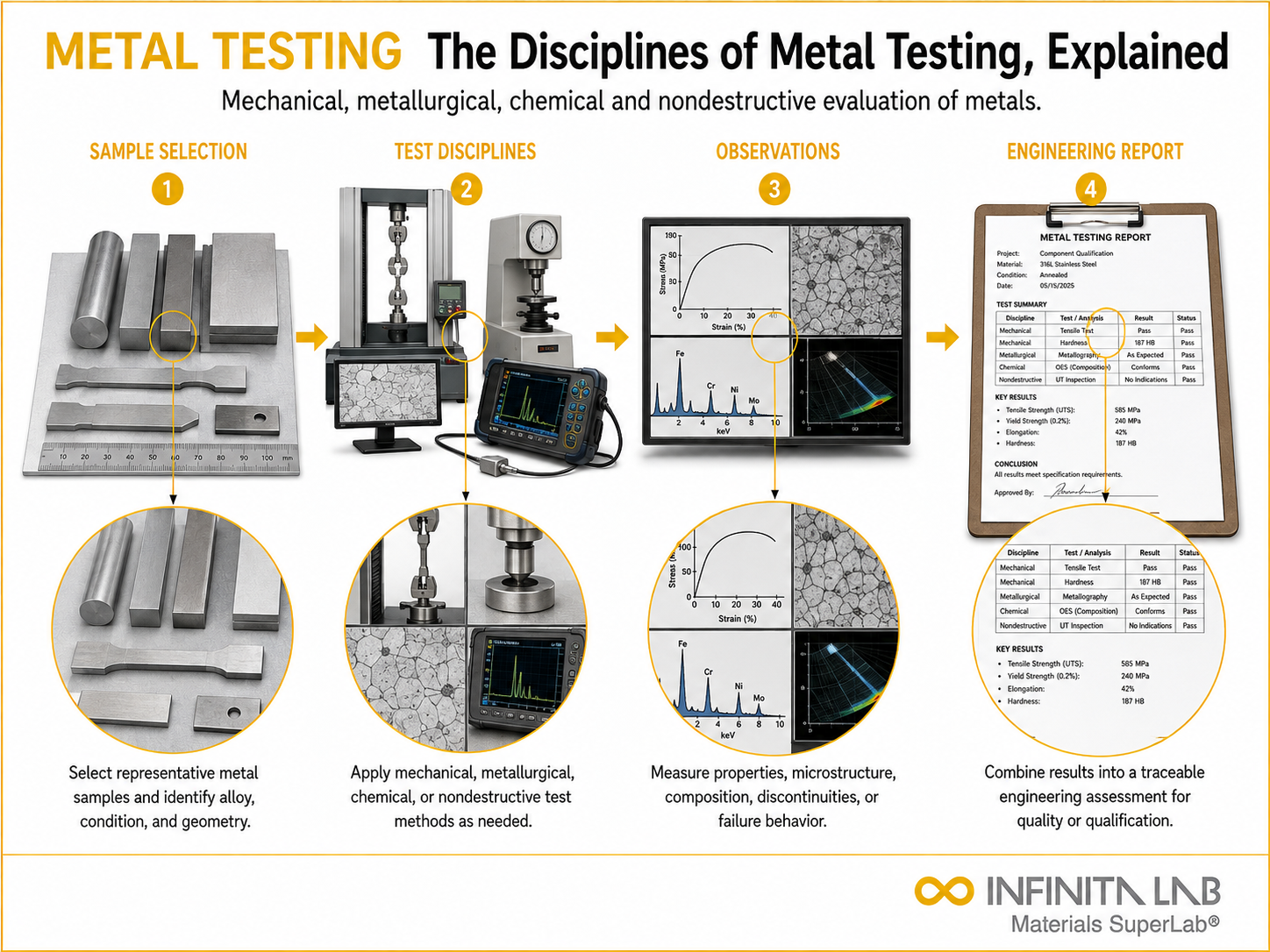

Representative Infinita Engineering Visual explaining the four-step workflow for The Disciplines of Metal Testing, Explained.What Is Metal Testing?
Metal testing is the evaluation of a metal’s composition, mechanical properties, microstructure, and integrity to confirm it is suitable for its intended application. No single test captures all of this – different properties require different measurement techniques, and together they form the disciplines that make up the full picture of a metal’s behavior. Material certification, incoming inspection, failure investigation, and design qualification all draw from this set of disciplines.
Testing Disciplines
Mechanical Testing
Mechanical testing measures how a metal responds to applied force. Tensile testing (ASTM E8) produces yield strength, ultimate tensile strength, elongation, and reduction in area. Hardness testing (ASTM E18 Rockwell, ASTM E10 Brinell, ASTM E92 Vickers) provides a rapid index of strength and wear resistance. Impact testing (ASTM E23 Charpy) characterizes toughness and ductile-to-brittle transition temperature. Fatigue testing (ASTM E466, E606) establishes endurance limits for cyclic loading. Compression and bend testing address specific loading modes not covered by tension.
Chemical Analysis
Chemical analysis confirms alloy composition and detects contaminants. Optical emission spectrometry (OES) is the fastest method for bulk composition – a spark is struck against the metal surface and the emitted spectrum identifies and quantifies each element. ICP-OES and ICP-MS provide higher sensitivity for trace elements and dissolved samples. X-ray fluorescence (XRF) is non-destructive and used for screening and positive material identification (PMI). Carbon and sulfur are measured by combustion analysis (ASTM E1019). Standards include ASTM E415 (OES for steel), ASTM E1086 (OES for stainless), and ASTM E1473 (ICP for nickel alloys).
Metallurgical and Microstructural Analysis
Metallurgical analysis examines the internal structure of the metal using optical microscopy and scanning electron microscopy (SEM). Grain size measurement (ASTM E112) and phase identification characterize the microstructure that determines mechanical properties. Inclusion rating (ASTM E45) quantifies non-metallic inclusions that affect fatigue life and toughness. Case depth measurement confirms heat treatment results. Etching with acid reagents reveals grain boundaries, phase boundaries, and weld heat-affected zones. SEM with EDS adds elemental mapping at the microstructural scale.
Also Read – Testing of Injectables & Parenterals: Sterility, Particulates & Container Integrity
Non-Destructive Testing (NDT)
NDT evaluates material integrity without destroying the part. Ultrasonic testing (UT, ASTM E317) detects internal discontinuities by transmitting sound waves and measuring reflections. Radiographic testing (RT, ASTM E94) uses X-ray or gamma radiation to image internal features. Magnetic particle testing (MT, ASTM E1444) detects surface and near-surface flaws in ferromagnetic materials. Liquid penetrant testing (PT, ASTM E165) reveals surface-breaking defects. Eddy current testing (ET, ASTM E376) measures coating thickness and detects surface flaws in conductive materials.
Corrosion and Environmental Testing
Corrosion testing evaluates a metal’s resistance to degradation in specific environments. Salt spray testing (ASTM B117) accelerates atmospheric corrosion for coating evaluation. Intergranular corrosion testing (ASTM A262) screens stainless steel sensitization. Stress corrosion cracking tests (ASTM G36, G44, G47) expose susceptible alloy-environment combinations. Pitting tests (ASTM G48) rank stainless and nickel alloy resistance to chloride attack. These tests feed material selection, coating qualification, and failure investigation programs.
Industry Specifications
- Structural Steel: ASTM A370 (mechanical testing), ASTM A751 (chemical analysis), ASTM E23 (Charpy impact)
- Aerospace Alloys: AMS 2370 (testing requirements), ASTM B209 (aluminum sheet), AMS 4928 (titanium)
- Stainless and Nickel Alloys: ASTM A262 (intergranular corrosion), ASTM E1086 (OES), ASTM A262
- Weld Inspection: AWS D1.1 (structural steel), ASME Section IX (weld procedure qualification), ASTM E164 (UT)
- Forgings and Castings: ASTM A388 (UT for heavy forgings), ASTM E125 (reference photographs for iron castings)
- Non-Destructive Testing: ASTM E317 (UT), ASTM E94 (RT), ASTM E1444 (MT), ASTM E165 (PT), ASTM E376 (ET)
Also Read – TEM Data Analysis: Techniques, Diffraction & Elemental Mapping
Conclusion
Metal testing is not a single discipline – it is the combination of mechanical, chemical, microstructural, NDT, and corrosion methods that together characterize a metal’s fitness for service. The right discipline depends on what property or condition needs to be confirmed. Tensile testing answers a different question than OES analysis, which answers a different question than ultrasonic inspection. Understanding which discipline applies to which question is the starting point for any metal qualification or failure investigation program.
What is the difference between hardness testing and tensile testing? Hardness testing indents the metal surface with a standardized indenter under a defined load and measures the indent size or depth. It is fast, non-destructive in practice, and can be done on finished parts. Tensile testing requires a machined specimen loaded to failure - it directly measures yield strength, ultimate strength, and ductility. Hardness correlates empirically to tensile strength for some alloy families (ASTM E140 provides conversion tables) but is not a substitute where actual tensile properties are required by specification.
When is OES preferred over XRF for alloy verification? OES (spark emission spectrometry) is preferred when a full quantitative chemical analysis is required to a material specification - it provides accurate results for nearly all elements, including carbon, phosphorus, and sulfur, that XRF handles poorly. XRF is preferred for non-destructive positive material identification (PMI) of installed components or finished parts where a spark mark is not acceptable. XRF is also faster for screening large quantities of incoming material. For final certification chemistry, OES or wet chemistry is the standard.
What does grain size tell you about a metal's properties? Grain size directly affects strength, toughness, and fatigue life through the Hall-Petch relationship - finer grains generally mean higher yield strength and better toughness. Grain size measurement per ASTM E112 using the comparison method or intercept method provides a single number (ASTM grain size number) that quantifies the microstructure. Abnormal grain growth - very large grains in an otherwise fine-grained matrix - flags a heat treatment problem and correlates with reduced impact toughness and fatigue performance.
Can NDT fully replace destructive testing for metal certification? No. NDT detects discontinuities and can screen for gross compositional differences (PMI by XRF) but cannot measure yield strength, elongation, or chemistry to the precision required by material specifications. The two approaches are complementary. Destructive testing on heat or lot representative specimens provides the property data required for certification. NDT on production parts confirms the absence of defects that would invalidate those properties in the actual component.
What is the purpose of inclusion rating in steel? Non-metallic inclusions - oxides, sulfides, silicates - are introduced during steelmaking and refining. In high concentrations or large sizes, they initiate fatigue cracks, reduce toughness, and cause anisotropic mechanical properties. ASTM E45 provides a standard method for rating inclusion content by type and severity using comparison charts against reference micrographs. Aerospace, bearing, and high-fatigue applications specify maximum inclusion ratings as part of the material specification. Cleanliness requirements for critical rotating components are among the tightest in the industry.
