Dimensional Calibration: Process, Standards, and Why It Matters

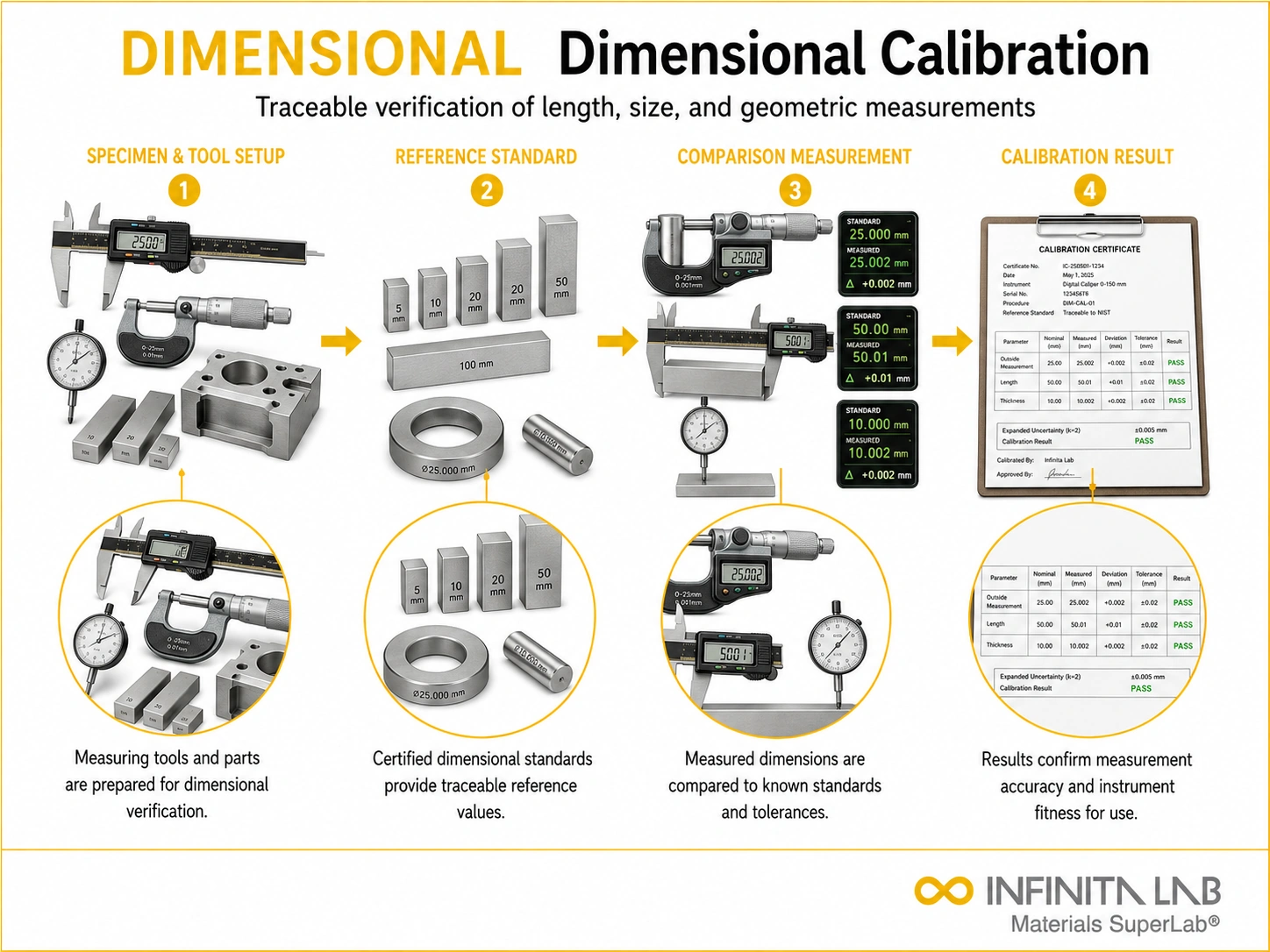

Representative Infinita Engineering Visual explaining the four-step workflow for Dimensional Calibration.What Is Dimensional Calibration?
Dimensional calibration verifies and adjusts instruments used to measure length, angle, shape, position, and microgeometry against traceable reference standards, ensuring measurement accuracy across manufacturing, quality control, and metrology applications. Common instruments requiring calibration include calipers, micrometers, gage blocks, thread and plain limit gauges, and coordinate measuring machines (CMMs).
Test Procedure
- Select an ISO/IEC 17025-accredited calibration laboratory with scope covering the instrument type and size range needed
- Instruments are either sent to the lab or calibrated on-site, depending on size and portability
- The instrument is compared against traceable reference standards (gage blocks, master rings, or NIST-traceable calibrated artifacts) across its measurement range
- Environmental conditions are controlled during calibration — precision labs commonly hold temperature at 68F +/- 1F and relative humidity at 30-50% to eliminate thermal expansion as a source of error
- As-found and as-left measurements are recorded, along with documented measurement uncertainty for each point
- A calibration certificate is issued, identifying the method used, reference standards employed, environmental conditions, and complete uncertainty analysis
Also Read – ASTM D6080: Viscosity Characteristics of Hydraulic Fluids — Guide
Gage Block Calibration Specifics
Gage blocks — precision dimensional standards used to calibrate other instruments — themselves require periodic recalibration, since wear, contamination, and environmental exposure cause dimensional drift over time. Calibration labs typically cover gage block sizes from a fraction of an inch up to 20 inches (or 0.5 mm to 500 mm metric), with grades such as AS-1, AS-2, and B+ denoting different accuracy classes.
Documentation Requirements
A valid ISO/IEC 17025 calibration certificate must identify: the measurement method used, reference standards employed, environmental conditions during calibration, and a complete uncertainty analysis for each measurement point — the absence of any of these elements undermines the certificate’s value as audit-grade evidence.
Also Read – ASTM E1347: Tristimulus Color Testing — Method & Laboratory Guide
Industry Specifications Referencing Dimensional Calibration
- ISO/IEC 17025: governing accreditation standard for calibration laboratories
- NIST traceability: the chain of comparisons linking a calibration back to national measurement standards
Conclusion
Calibration accuracy isn’t a permanent state — it degrades with use, handling, and environmental exposure, which is why regular recalibration intervals (not a one-time certificate) are what actually protects downstream measurement quality.
Which instruments require dimensional calibration? Common instruments include calipers, micrometers, height gauges, dial indicators, bore gauges, gauge blocks, measuring tapes, rulers, optical comparators, and coordinate measuring machines.
How is dimensional calibration performed? The instrument is cleaned, inspected, and tested at multiple points across its measurement range. Its readings are compared with certified reference standards, and any errors or deviations are documented.
Which standards apply to dimensional calibration? Dimensional calibration laboratories commonly follow ISO/IEC 17025 for technical competence and traceability. Instrument-specific standards from organizations such as ISO, ASTM, and ASME may also define calibration procedures and tolerances.
What is measurement traceability? Measurement traceability means that calibration results can be linked to national or international measurement standards through an unbroken chain of documented calibrations, each with stated uncertainty.
How often should dimensional instruments be calibrated? Calibration frequency depends on instrument usage, required accuracy, operating environment, manufacturer recommendations, and previous calibration history. Frequently used or critical instruments may require shorter intervals.
