Contaminant and Film Analysis: Identifying Surface Residues

Written by Rahul Verma | Updated: July 20, 2026

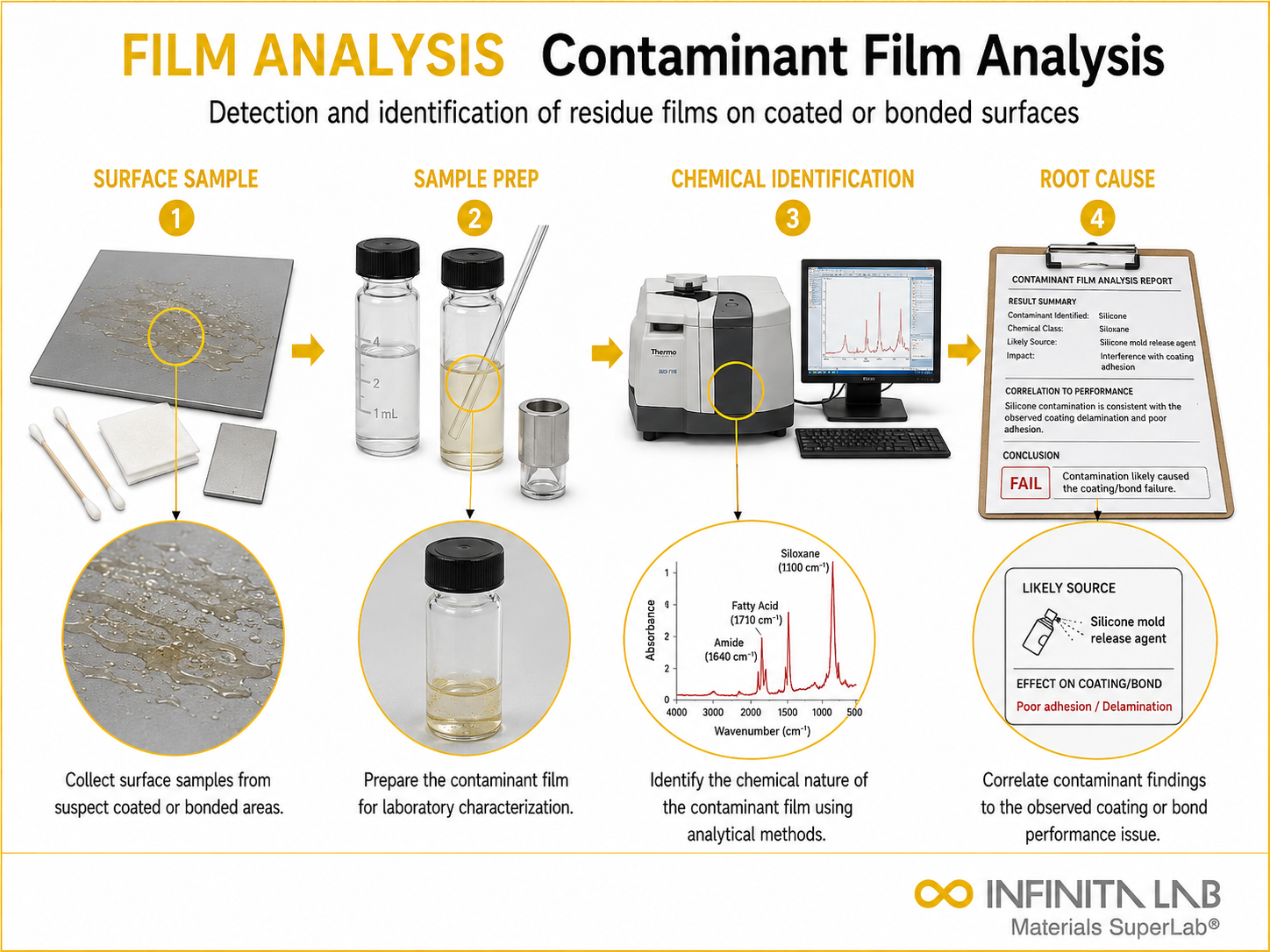

Infinita Engineering Visual showing Contaminant Film Analysis coating / film / surface layer workflow for contaminant film analysis. — Representative Infinita Engineering Visual explaining the four-step workflow for Contaminant Film Analysis.

What Is Contaminant Film Analysis?

Contaminant film analysis investigates thin surface layers — release agent residue, oxide films, organic residues, or process chemistries — that interfere with adhesive bonding, coating adhesion, sealing, or corrosion resistance. Because these layers are often only a few nanometers thick, the choice of analytical technique depends heavily on how deep into the surface you need to look.

Primary Analytical Techniques

FTIR (ATR mode): identifies organic functional groups and molecular bonding; samples typically several microns into the surface depending on the sampling method, making it well-suited to organic residues like release agents and adhesive transfer
XPS (X-ray Photoelectron Spectroscopy): examines only the outermost 5-10 nanometers, providing elemental composition and chemical/oxidation state — for example, distinguishing metallic iron from its oxidized form. XPS is roughly 100 times more surface-sensitive than FTIR or EDS, making it the tool of choice for genuinely thin contamination layers and pre-bond surface qualification.

Test Procedure

Select representative samples: areas from failed components alongside a known-good reference, or artificially contaminated control surfaces
For FTIR: press the surface against or reflect infrared light off an ATR crystal and collect an absorbance spectrum
For XPS: mount the sample under high vacuum; argon ion sputtering can be used to profile contamination as a function of depth
Compare spectra against reference or “bullseye” clustering of known contamination states to sort samples by contamination severity
Correlate contamination findings with bond or coating failure data to confirm causation

Common Applications

Pre-bond surface qualification in aerospace composite manufacturing (detecting release agent or mold-release film residue before adhesive bonding)
Cleanliness verification after plasma treatment, etching, or chemical cleaning
Root-cause investigation of adhesion, coating, or sealing failures

Industry Specifications Referencing Contaminant Film Analysis

ASTM E1252, E168: infrared analysis practices
Common aerospace application: NASA/Boeing-referenced surface preparation studies for composite bonding

Conclusion

Choosing between FTIR and XPS for contaminant film analysis is largely a question of depth: FTIR is faster and cheaper for bulk organic residues, while XPS is the more sensitive tool when the contamination genuinely lives in the outermost few nanometers of the surface — which is exactly where most pre-bond and pre-coating failures originate.

What is contaminant and film analysis?

Contaminant and film analysis identifies unknown residues, deposits, coatings, and thin layers present on a material’s surface. It helps determine their composition, source, and potential role in product failure.

What types of surface residues can be analysed?

Common residues include oils, greases, adhesives, cleaning agents, corrosion products, fingerprints, release agents, dust, polymer films, and manufacturing contaminants.

Which analytical methods are commonly used?

Frequently used methods include FTIR spectroscopy, SEM-EDS, XPS, Raman spectroscopy, GC-MS, optical microscopy, and surface profilometry. The method depends on the residue’s size, thickness, and expected composition.

How is FTIR used for residue identification?

FTIR identifies organic materials by measuring their infrared absorption patterns. It is useful for analysing polymers, oils, adhesives, coatings, and many unknown surface contaminants.

What does SEM-EDS reveal?

SEM provides detailed images of surface morphology, while EDS determines the elemental composition of the residue. This combination is particularly useful for identifying inorganic particles and corrosion products.
