Composite Materials Testing: Methods, Standards, and Properties

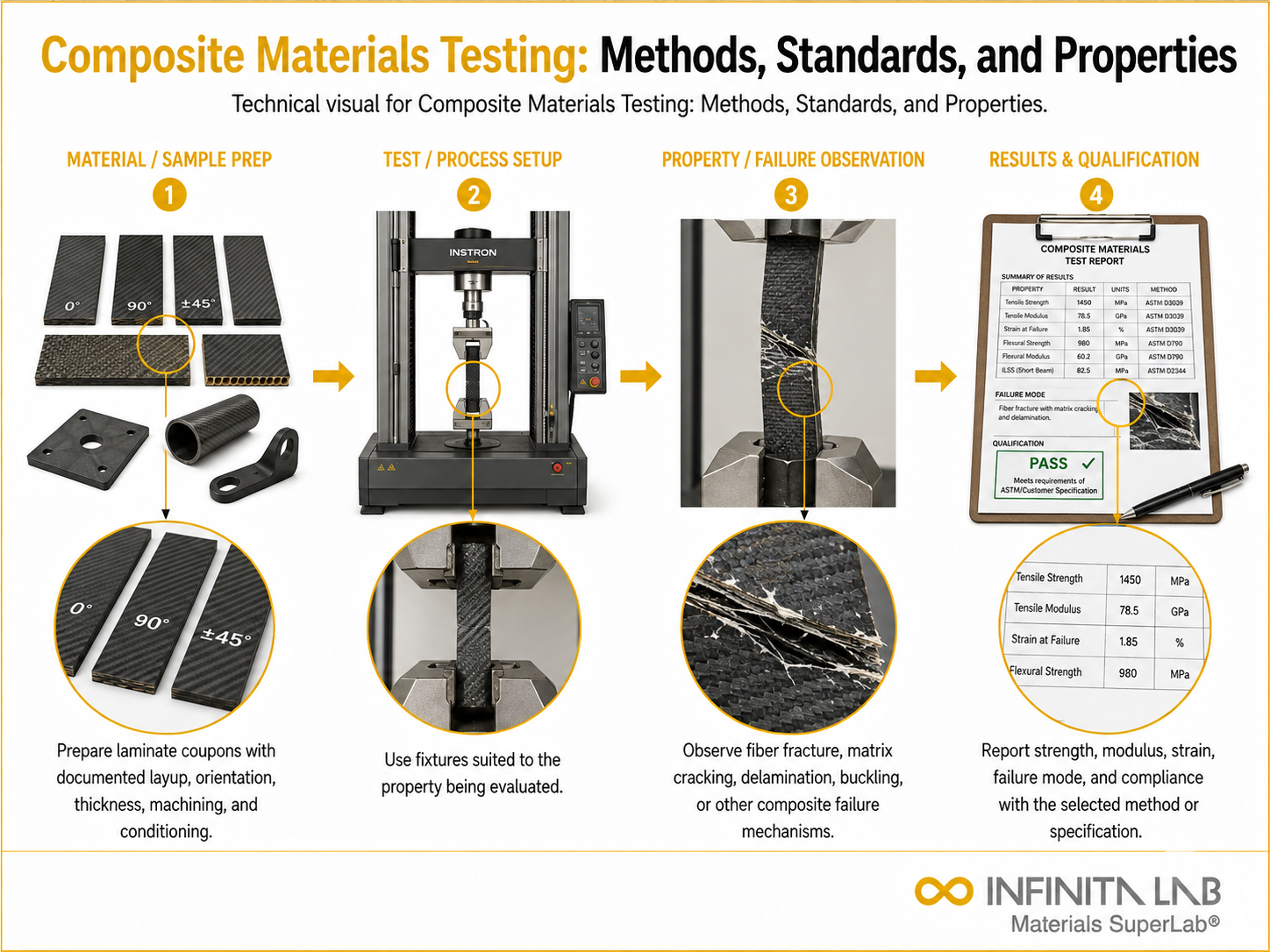

Representative Infinita Engineering Visual explaining the four-step workflow for Composite Materials Testing.What Is Composite Materials Testing?
Composite materials testing covers the full range of mechanical, thermal, and non-destructive methods used to characterize polymer matrix composites — from basic tensile and flexural properties through fatigue, creep, and internal defect detection. Because composites are anisotropic (properties differ by fiber direction), a single test rarely tells the whole story; qualification typically requires a battery of methods across multiple loading directions.
Core Mechanical Test Methods
- ASTM D3039: in-plane tensile properties (strength, modulus, Poisson’s ratio)
- ASTM D695 / D3410 / D6641: compressive properties (rigid plastics vs. fiber composite-specific methods)
- ASTM D5739 (V-notched beam) / ASTM D2344 (short-beam): interlaminar and in-plane shear strength
- ASTM D3479: tension-tension fatigue
- ASTM D2990: tensile, compressive, and flexural creep and creep rupture
Thermal and Environmental Test Methods
- ASTM E831 / D3418: thermal expansion and transition temperatures (via thermomechanical analysis and DSC)
- ASTM D4065 / D4440 / D5023 / D5026: dynamic mechanical properties in flexure, melt rheology, tension, and compression
- ASTM D5229: moisture absorption and equilibrium conditioning — critical since moisture uptake can meaningfully degrade matrix-dominated properties
Non-Destructive Testing (NDT) Methods
Because composite defects (delamination, voids, fiber misalignment) often aren’t visible externally, NDT plays a larger role here than in metals testing:
- Ultrasonic testing: detects internal delamination and voids via sound wave reflection
- Thermography: identifies subsurface defects through thermal gradient anomalies
- X-ray computed tomography (CT): provides full 3D internal defect mapping, particularly useful for complex geometries
Specimen Preparation Considerations
Specimen cutting method matters — water-jet cutting or diamond-coated precision sawing is preferred to avoid inducing delamination or edge damage during preparation, which can artificially reduce measured strength. Tabs (glass fiber/epoxy or aluminum) are commonly bonded to grip areas, especially for 0-degree unidirectional specimens, to prevent premature grip-induced failure.
Industry Specifications Referencing Composite Testing
- ASTM Committee D30 (High Modulus Fibers and Their Composites): governs most composite-specific test methods
- Common industries: aerospace, automotive, wind energy, marine
Conclusion
Composite qualification is inherently a multi-test exercise — mechanical strength numbers mean little without matching NDT confirmation that the specimen (and the production batch it represents) is actually free of the internal defects that composites are prone to hiding.
What properties are commonly measured? Common properties include tensile strength, compressive strength, flexural strength, shear strength, impact resistance, fatigue life, stiffness, and interlaminar performance. Thermal and moisture-related properties may also be evaluated.
How is tensile testing performed on composites? A flat specimen is gripped in a universal testing machine and pulled at a controlled rate until failure. The test measures tensile strength, modulus, strain, and the effect of fiber orientation.
Why is fiber orientation important? Composite materials are often anisotropic, meaning their properties vary with direction. Testing specimens in different orientations helps engineers understand performance under actual loading conditions.
How is interlaminar shear strength measured? Short-beam testing is commonly used to evaluate shear strength between composite layers. It helps identify weak bonding, delamination, voids, and poor resin distribution.
What is composite fatigue testing? Fatigue testing applies repeated cyclic loads to determine how the material performs over time. It can reveal stiffness loss, matrix cracking, fiber breakage, and delamination before final failure.
