Forklift Handling Test Overview
Forklift handling testing evaluates how well a shipping package, pallet load, or unit load survives the mechanical stresses encountered during lift truck operations in a distribution or warehouse environment. Every time a forklift picks up, transports, stacks, or sets down a load, the package is subjected to dynamic forces -impact when the forks engage the pallet, vibration during transport across uneven floors, and compressive loading from stacking under other loads. Packages that have not been evaluated for these conditions can be damaged, can damage adjacent products, or can create unsafe conditions in the warehouse.
The primary standard for forklift handling simulation is ASTM D6055, which defines test methods for mechanical handling of unitized loads and large shipping cases. The test replicates forklift fork engagement by driving a rigid fork fixture into the base of the pallet or package at a controlled speed and measuring the loads and any resulting damage. ISTA and ASTM D4169 also reference forklift-related hazards as part of distribution simulation programs, and the forklift handling test is typically one element of a broader transit and handling test sequence.
Understanding how a package responds to forklift handling is particularly important for heavy products, large format packages, palletized unit loads, and any product where the forklift is the primary means of handling through the distribution chain. Damage patterns from forklift handling -bottom board failures, pallet deck separation, product shifting, and package corner damage -are distinct from drop and vibration damage and require targeted testing to identify and address.
Forklift Handling Test Scope, Applications, and Benefits
Scope
Forklift handling testing per ASTM D6055 covers mechanical handling simulation for unitized loads, large shipping cases, and palletized packages using fork engagement impact tests. The test applies controlled fork engagement impacts at defined speeds and measures the forces generated and any resulting damage to the package, product, or pallet. Fork entry from each applicable face of the package is tested. Testing can be performed on empty packages, packages with product, or unit loads assembled for distribution. Vibration during transport on a forklift moving over uneven surfaces can be simulated as part of an extended distribution program. The test falls under ASTM Committee D10 on Packaging.
Applications
- Palletized unit load packaging qualification for warehouse and distribution center environments
- Heavy product shipping package validation -appliances, industrial equipment, and machinery
- Pallet design and construction evaluation -wood, plastic, and presswood pallet performance
- Distribution simulation programs per ASTM D4169 that include forklift handling as a defined hazard element
- ISTA 2B, 3B, and 3E test procedures that include forklift fork engagement tests
- Package redesign evaluation after field damage reports attributing damage to forklift handling
- Pallet pattern and stretch wrap optimization for unit load stability during forklift operations
- New product launch packaging qualification for products entering retail or industrial distribution
Benefits
- Directly replicates the mechanical forces of forklift fork engagement rather than simulating them indirectly
- Identifies bottom board, pallet, and package base failures before they occur in the field
- Covers all accessible fork entry faces of the package
- Part of recognized distribution simulation frameworks (ASTM D4169, ISTA) accepted by major retailers and logistics providers
- Applicable to all pallet sizes and package configurations
- Results guide corrective action -pallet specification, package base design, or unit load configuration
- Testing can be combined with drop, vibration, and compression tests in a single program

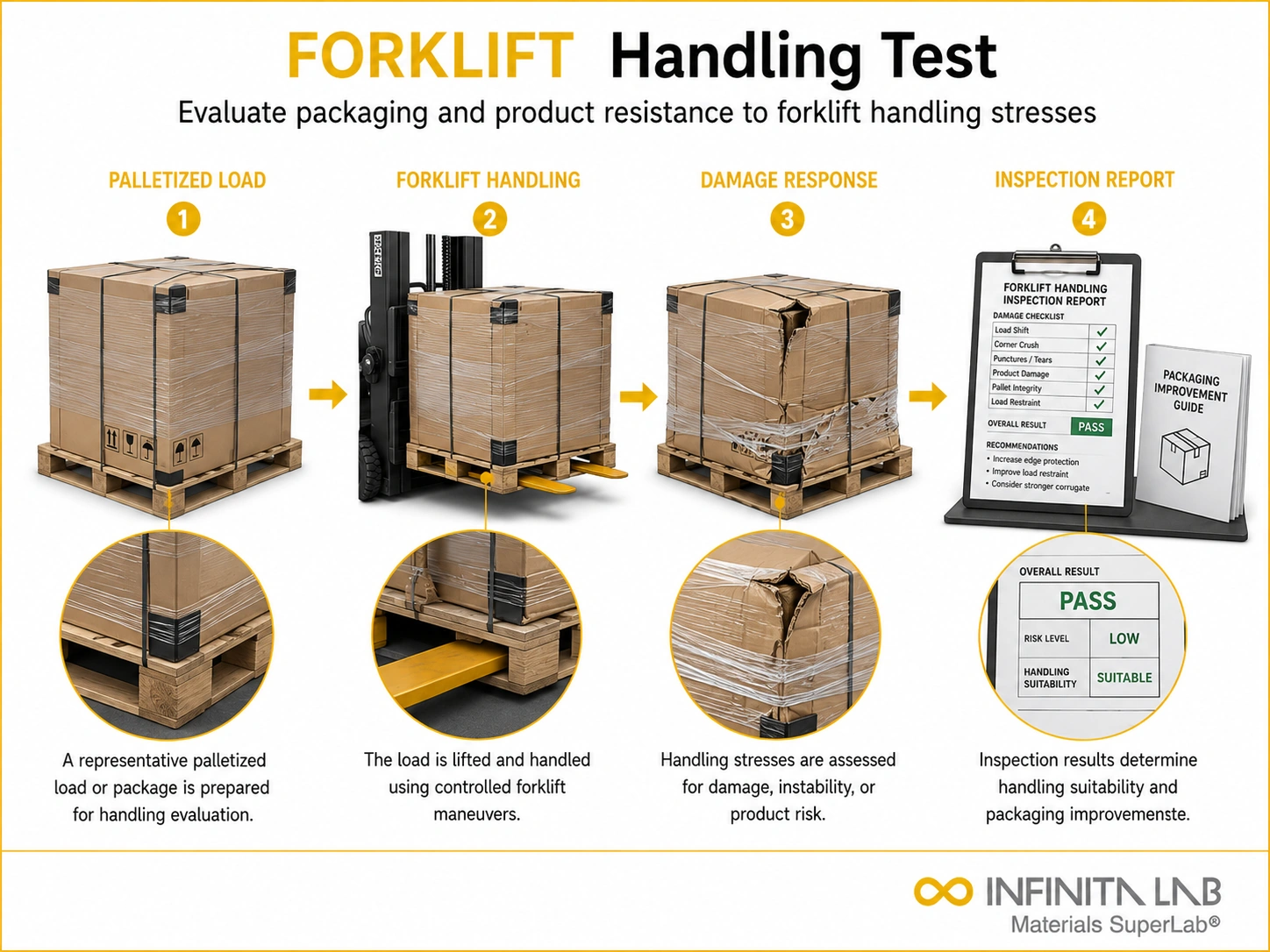

Forklift Handling Test Process
Sample Preparation and Unit Load Assembly
Packages are assembled into the unit load configuration representative of the distribution program -stacking pattern, stretch wrap tension
1Fork Fixture Setup
A rigid fork fixture is positioned to replicate the geometry of a standard lift truck fork.
2Fork Engagement Impact Testing
The fork fixture is driven into the pallet or package entry at the specified speed.
3Damage Assessment and Reporting
All damage is documented photographically and described in terms of type, location, and severity.
4Forklift Handling Test Technical Specifications
| Parameter | Details |
|---|---|
| Primary Standard | ASTM D6055 – Mechanical Handling of Unitized Loads and Large Shipping Cases and Crates |
| Related Standards | ASTM D4169, ISTA 2B, ISTA 3B, ISTA 3E |
| ASTM Committee | D10 – Packaging |
| Test Type | Fork engagement impact -rigid fork fixture driven into pallet or package entry at defined speed |
| Fork Entry Faces | All accessible entry faces tested |
| Sample Types | Palletized unit loads, large shipping cases, individual heavy packages |
Instrumentation Used for Forklift Handling Test
- Rigid fork fixture with adjustable tine spacing and height
- Test machine or actuator capable of driving the fork at the specified approach speed
- Load cell for fork engagement force measurement
- Displacement transducer for fork travel measurement
- Data acquisition system for force and displacement recording
- Scale for unit load weight verification
- Photographic documentation equipment for pre- and post-test damage recording
Forklift Handling Test Results and Deliverables
- Fork engagement force at each test face
- Displacement and energy absorbed during fork engagement
- Photographic documentation of all damage -pallet, package base, stretch wrap, and product
- Damage description by type, location, and severity for each fork entry face tested
- Unit load configuration details -pallet type, stacking pattern, stretch wrap specification
- Pass/fail determination against test plan acceptance criteria
- Full test report formatted for distribution simulation program records, packaging qualification documentation, or design review
Frequently Asked Questions
Forklift handling tests evaluate whether packaged products can withstand the impacts, lifting forces, and handling stresses encountered during warehouse operations, helping reduce product damage throughout the supply chain.
The test can reveal issues such as pallet failure, package deformation, load shifting, carton crushing, and inadequate load stability that may occur during routine forklift handling.
The test is commonly performed on palletized goods, industrial equipment, bulk containers, consumer products, and other unit loads that are routinely transported or stored using forklifts.
Yes. Test parameters such as lifting height, handling frequency, load weight, and impact conditions can often be tailored to simulate actual warehouse, distribution, or shipping environments.
