What Is Electrical Enclosure Rating?
Electrical enclosure rating testing evaluates how well a housing, cabinet, or enclosure protects its internal electrical or electronic components from environmental hazards -specifically from solids, dust, water, and other external conditions. Two rating systems are used in practice: the NEMA rating system, widely referenced in North American electrical specifications, and the IEC 60529 Ingress Protection (IP) rating system, used internationally and now standard in most global product specifications.
NEMA ratings are defined by the National Electrical Manufacturers Association and are described in NEMA 250. They cover a broader set of performance criteria than IP ratings -including corrosion resistance, ice formation, and gasket integrity over time -and are evaluated through a combination of tests for water ingress, dust ingress, icing, oil immersion, and other conditions depending on the NEMA type designation. IP ratings, defined by IEC 60529, use a two-digit code: the first digit indicates protection against solid particles and dust, the second against water ingress. Tests are standardized by contact probe size, dust chamber exposure, water spray angle, jet pressure, and immersion depth.
At Infinita Lab, we coordinate enclosure rating testing for electrical panels, junction boxes, control cabinets, handheld devices, outdoor luminaires, industrial equipment housings, and other electrical enclosures through our network of accredited testing labs. Whether the requirement is NEMA Type 4X for a food-processing environment, IP67 for a portable device, or IP69K for high-pressure washdown, we connect clients with the right lab and test configuration.
Applications and Benefits of Electrical Enclosure Rating Testing
Scope
Enclosure rating testing covers NEMA Types 1 through 13 per NEMA 250, and IP ratings from IP10 through IP69K per IEC 60529. Testing evaluates protection against solid objects and dust (IP first digit, NEMA dust/falling dirt criteria), protection against water in various forms including drip, splash, rain, hose-directed spray, immersion, and high-pressure jets (IP second digit, NEMA water criteria), and for certain NEMA types, corrosion resistance, oil immersion, and icing resistance. Enclosure sizes, materials, and gasket constructions are all within scope. Tests may be conducted on complete enclosures or representative sections depending on the standard and the rating being sought.
Applications
- Industrial control panels and junction boxes for outdoor or washdown environments
- Electrical cabinets in food and beverage processing facilities requiring IP69K or NEMA 4X
- Consumer electronics and handheld device ingress protection qualification (IP67, IP68)
- Outdoor luminaires and street lighting enclosures for IP65 or IP66 ratings
- Automotive electrical connectors and control units for water and dust protection
- Medical device housing ingress protection testing for clean room and patient care environments
- Marine electrical equipment enclosure qualification for salt spray and water immersion
- Industrial sensors and instrumentation housing validation for hazardous or wet environments
Benefits
- Covers both NEMA and IEC 60529 rating systems under coordinated test programs
- Pass/fail outcomes with clear reference to the rating claimed support product labeling and specification
- Applicable to enclosures of any size, material, or construction
- Results support product launch, certification body submissions, and customer specification requirements
- Testing available from IP1X dust contact protection through IP69K high-pressure steam cleaning
- NEMA testing covers additional criteria beyond IP that are required for North American electrical codes
- Gasket integrity and sealing performance directly evaluated rather than assumed from design

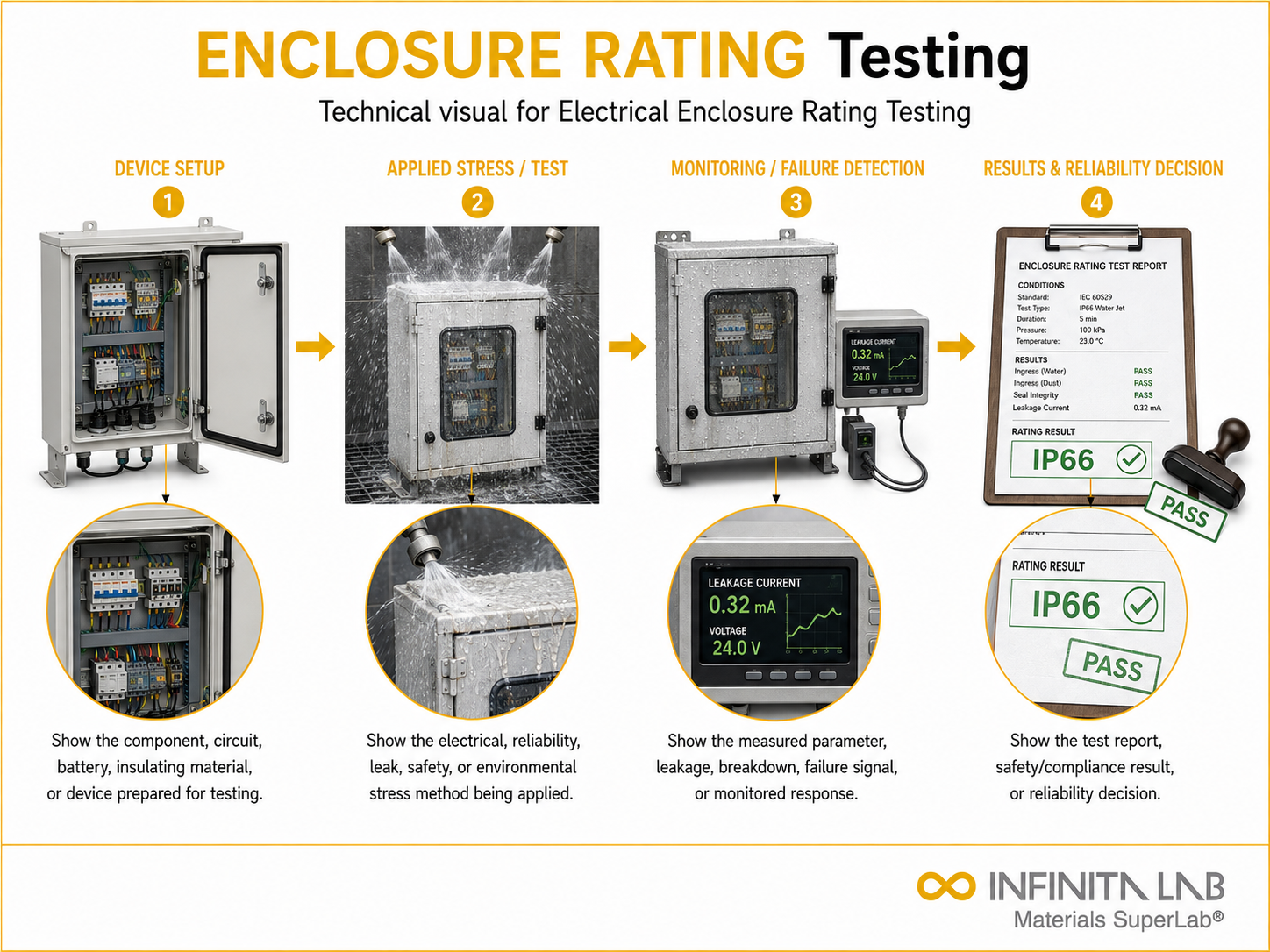

Our Testing Procedure
Specimen Preparation and Baseline Inspection
The enclosure is inspected for completeness -all cable entries, gaskets, fasteners, and sealing features are verified per the product design.
1Solid and Dust Ingress Testing
For IP first-digit testing, contact probes of defined sizes (50 mm sphere for IP1X, 12.5 mm for IP2X, 2.5 mm for IP3X, 1 mm for IP4X) are used
2Water Ingress Testing
Water tests are applied per the second IP digit or NEMA type: drip (IP1X, IP2X), rain simulation (IP3X), splash (IP4X), low-pressure jets
3Post-Test Evaluation and Reporting
After each test, the enclosure is examined for water ingress, dust penetration, or evidence of seal failure.
4Test parameters and requirements
| Parameter | Details |
|---|---|
| Standards Covered | NEMA 250 (NEMA ratings), IEC 60529 (IP ratings) |
| NEMA Types Covered | Types 1, 2, 3, 3R, 3S, 4, 4X, 5, 6, 6P, 12, 12K, 13 |
| IP Ratings Covered | IP10 through IP69K |
| Solid Ingress Tests | Contact probes (50 mm, 12.5 mm, 2.5 mm, 1 mm), dust chamber at negative pressure |
| Water Ingress Tests | Drip, rain, splash, low-pressure jet, high-pressure jet (12.5 kPa), immersion (0.15 m to 1 m+), IP69K high-pressure hot water |
| Additional NEMA Tests | Corrosion resistance, oil immersion, icing resistance (Type-dependent) |
- IEC 60529 test probes (50 mm, 12.5 mm, 2.5 mm, 1 mm sphere and finger probes)
- Dust test chamber with controlled particle size and negative pressure capability
- Water drip, rain simulation, and splash test apparatus
- Water jet nozzles -IPX5/X6 standard nozzle, IPX9K high-pressure nozzle
- Immersion tank with depth and duration control for IPX7/X8
- Salt spray cabinet for NEMA corrosion testing
- Icing test chamber for NEMA Type 3S and 3 icing tests
Equipment and Instrumentation Used for Testing
What You Receive: Test Report, Data, and Certification
- Pass/fail result for each test condition applied
- IP rating or NEMA type designation supported by the test results
- Photographic documentation of enclosure condition before and after each test
- Description of any ingress observed -location, quantity, and effect on internal components
- Test conditions applied -pressure, duration, temperature, probe sizes, and nozzle configurations
- Enclosure description, material, gasket type, and any special sealing features
- Full test report formatted for product specification documentation, customer submission, or regulatory review
Electrical Enclosure Rating FAQs
IEC 60529 assigns IP ratings based on protection against solid objects and water ingress, while NEMA ratings also consider factors such as corrosion resistance, ice formation, oil, and coolant exposure. The two systems are not directly equivalent.
Yes. Many enclosures are evaluated against both standards to demonstrate compliance with regional or customer requirements. However, passing one standard does not automatically qualify the enclosure for the other.
Depending on the required rating, testing may include dust ingress, water spray, water jets, temporary or continuous immersion, corrosion resistance, external icing, and gasket integrity assessments.
Yes. Testing is typically performed on the enclosure in its final production configuration, including doors, seals, cable entries, fasteners, and any accessories that could affect its environmental protection.
Yes. Changes such as adding cable glands, ventilation openings, knockouts, or replacing gaskets can alter the enclosure's protective performance and may require re-evaluation to confirm continued compliance.
NEMA enclosure testing evaluates the ability of electrical enclosures to protect internal equipment and personnel against specified environmental conditions. Based on the applicable NEMA 250 enclosure type, testing may assess resistance to dust, rain, dripping water, hose-directed water, corrosion, or submersion. The results help verify whether an enclosure meets the performance requirements for its intended indoor or outdoor application.
NEMA 4 testing evaluates whether an electrical enclosure provides protection against falling dirt, windblown dust, rain, splashing water, hose-directed water, and external ice formation. The enclosure is assembled in its intended configuration and subjected to the applicable dust and water exposure tests specified in NEMA 250. After testing, it is inspected for water ingress and other conditions that could compromise the required protection.
Electronics enclosure testing evaluates the protection and durability of housings used for electrical and electronic equipment. Depending on the intended application, tests may assess dust and water ingress, impact resistance, corrosion resistance, temperature performance, and protection against access to hazardous parts. Standards such as NEMA 250 and UL 50E provide applicable evaluation requirements to help determine whether an enclosure is suitable for its operating environment.
