ASTM E399: Plane Strain Fracture Toughness Kic Testing Services
ASTM E399 test method is used to determine the fracture toughness (KIc) of fatigue pre-cracked specimens under linear-elastic, plane-strain conditions. Fracture toughness is a quantitative way of expressing a material's resistance to crack propagation.
TRUSTED BY
Get ASTM E399 compliant results — request your plane strain fracture toughness kic testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM E399 Plane Strain Fracture Toughness Kic?
ASTM E399 describes a standard test method for determining the plane-strain fracture toughness (K₍IC₎) of metallic materials under linear-elastic conditions. This parameter represents a material’s resistance to crack propagation in the presence of a sharp flaw.
Fracture toughness is a critical property for structural design, especially in safety-critical applications such as aerospace, pressure vessels, and pipelines. ASTM E399 provides a rigorous and standardized approach to measuring fracture resistance under controlled conditions.
Applications and Benefits of ASTM E399 Plane Strain Fracture Toughness Kic Testing
Scope
ASTM E399 outlines procedures for measuring fracture toughness under plane-strain conditions. It evaluates:
- Plane-strain fracture toughness (K₍IC₎)
- Crack initiation resistance
- Crack propagation behavior
- Linear-elastic fracture characteristics
Applications
- Aerospace and defense components
- Pressure vessels and pipelines
- Structural and mechanical engineering
- Power generation systems
- Failure analysis and material qualification
Benefits
- Provides standardized fracture toughness values
- Enhances safety and reliability in design
- Supports material selection and qualification
- Enables failure prediction and analysis
- Ensures compliance with engineering standards

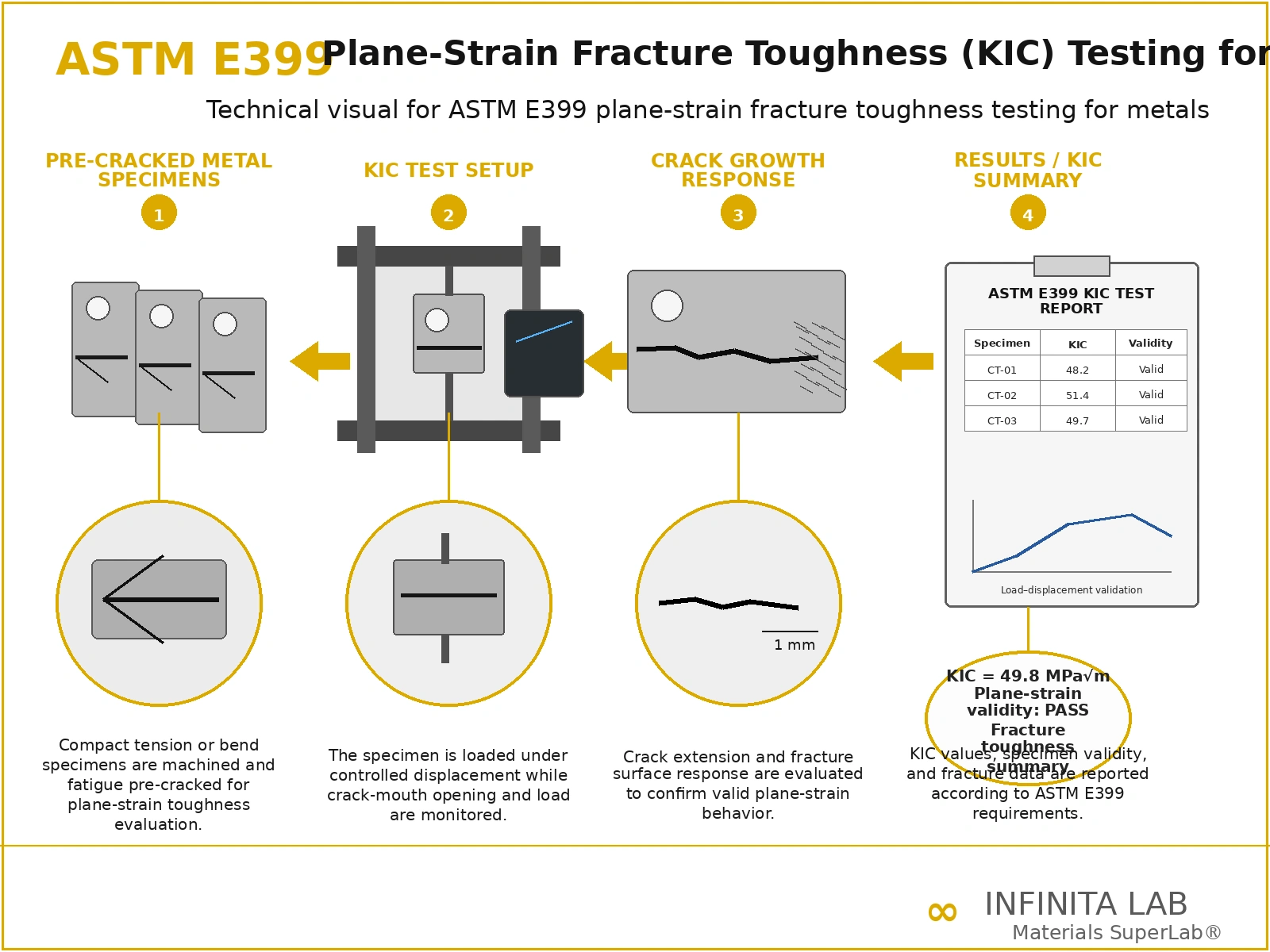

Our ASTM E399 Testing Procedure
Specimen Preparation
Pre-cracked specimens (e.g., Compact Tension or SE(B)) are prepared as per standard geometry.
1Fatigue Pre-cracking
A sharp fatigue crack is introduced under cyclic loading to simulate real crack conditions.
2Load Application
Monotonic load is applied under controlled conditions until fracture occurs.
3Data Analysis
Load and displacement data are used to calculate K₍IC₎ value.
4ASTM E399 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Metallic materials (brittle or limited plasticity behavior) |
| Specimen Types | Compact Tension (CT), Single-Edge Bend (SE(B)) |
| Measured Output | Plane-strain fracture toughness (K₍IC₎, MPa√m) |
| Crack Requirement | Fatigue pre-crack required |
| Loading Type | Monotonic loading |
- Universal testing machine
- Fatigue pre-cracking setup
- Clip gauge or extensometer
- Crack measurement tools
- Data acquisition system
- Specimen machining equipment
Equipment and Instrumentation Used for ASTM E399 Testing
What You Receive: Test Report, Data, and Certification
- K₍IC₎ fracture toughness values
- Load vs displacement curves
- Crack growth data
- Material performance evaluation
- Failure analysis reports
- Compliance reports
ASTM E399 Plane Strain Fracture Toughness Kic FAQs
It measures the plane-strain fracture toughness (K₍IC₎) of metals, indicating resistance to crack propagation under linear-elastic conditions, which is critical for assessing structural integrity and preventing catastrophic failure in engineering applications.
K₍IC₎ is the critical stress intensity factor under plane-strain conditions, representing the material’s resistance to crack growth and used as a key parameter in fracture mechanics and structural design analysis.
It provides a standardized method to evaluate fracture resistance, helping engineers design safer components, predict failure, and ensure reliability in applications such as aerospace, pressure vessels, and structural systems.
Common specimens include Compact Tension (CT) and Single-Edge Bend (SE(B)) specimens, which are pre-cracked to simulate real crack conditions for accurate fracture toughness measurement.
Aerospace, energy, automotive, and structural engineering industries use ASTM E399 to evaluate material fracture toughness, ensure safety, and maintain performance standards in critical applications.
