What Is KIc?
KIc — pronounced “K-one-c” — is the plane-strain fracture toughness of a material. It is the critical value of the stress intensity factor KI at which a pre-existing sharp crack in a thick specimen under plane-strain (maximum constraint) conditions propagates unstably and catastrophically. KIc is the most conservative, fundamental measure of a material’s resistance to fracture in the presence of a crack — and is the primary input to damage-tolerant structural design calculations.
The subscript “I” refers to Mode I loading — the crack-opening Mode where forces act perpendicular to the crack plane. The subscript “c” denotes the critical (fracture-initiating) value. The unit of KIc is MPa√m (megapascals times the square root of metres).
Physical Meaning of KIc
Characterizes the material’s ability to resist crack propagation under the worst-case loading condition — plane strain, in which the highly stressed material at the crack tip is constrained by the surrounding less-stressed material from contracting laterally. This constraint creates a triaxial tensile stress state that suppresses plastic deformation, producing the lowest fracture toughness the material can exhibit.
In thin sections, less constraint allows more lateral plastic deformation — producing higher apparent toughness (plane-stress fracture toughness, Kc) that can be 2–5× higher than KIc. For conservative structural design — particularly for thick sections — KIc is the design-limiting value.
How KIc Is Measured — ASTM E399

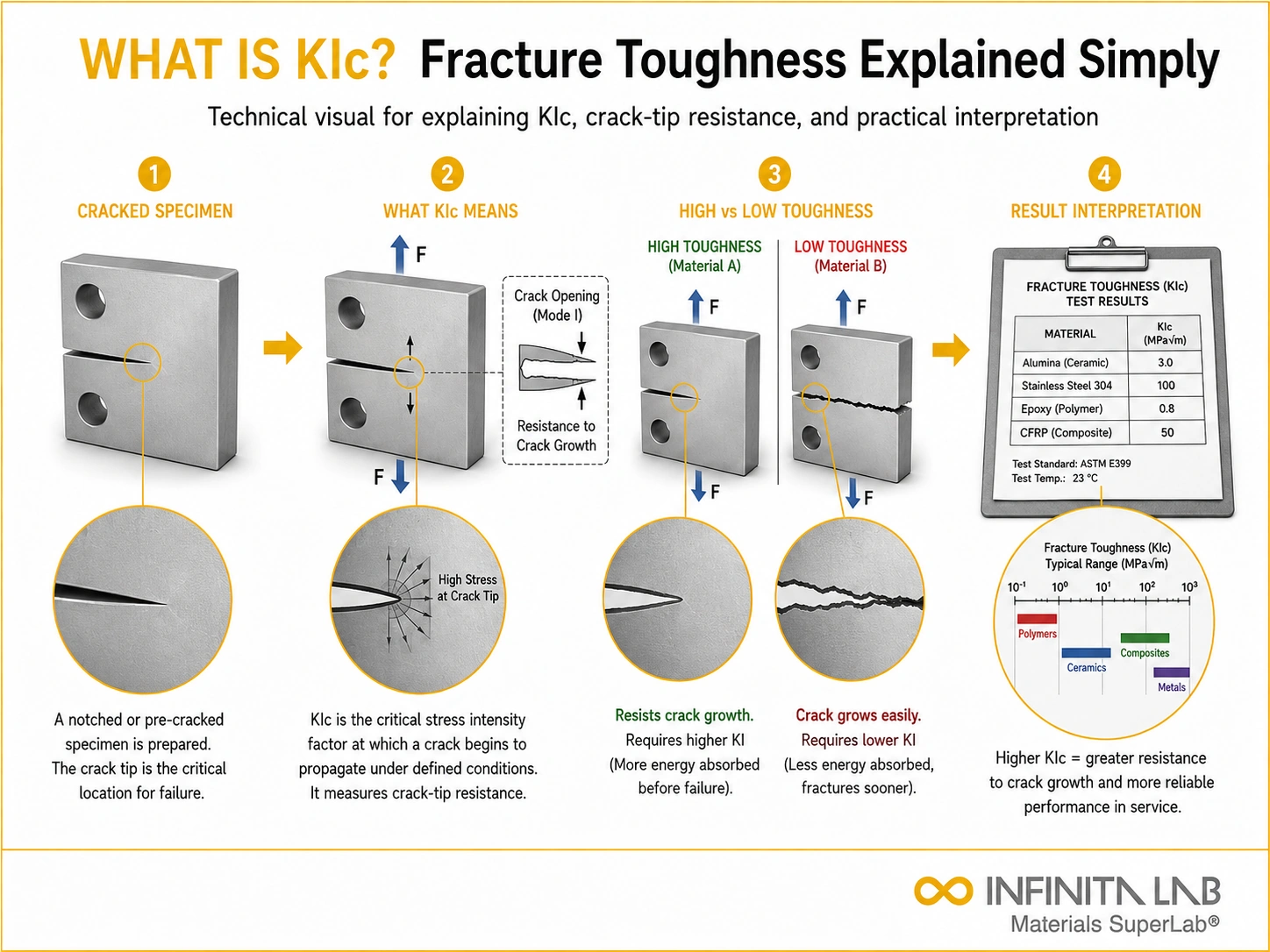

ASTM E399 defines the standard test for KIc. A fatigue-pre-cracked specimen (compact tension, CT, or single-edge notched bend, SENB) is loaded to fracture while recording the load-displacement curve. The KIc calculation uses the maximum load at a 5% secant offset (P₅%) and specimen dimensions.
Validity of the KIc measurement requires that:
a, B, (W−a) ≥ 2.5 × (KQ/σYS)²
This ensures that specimen dimensions are large enough for plane-strain to prevail—a requirement that demands increasingly large specimens for higher-toughness materials. For many structural steels and aluminium alloys, meeting this criterion requires specimens so large that J₁c testing (ASTM E1820) is more practical.
KIc Values for Engineering Materials
Material | KIc (MPa√m) |
Ultra-high-strength steel (4340, 250 ksi) | 50–60 |
High-strength steel (4340, 180 ksi) | 90–110 |
Structural steel (A36) | 200+ |
Aluminium 7075-T6 | 24–30 |
Aluminium 2024-T3 | 36–44 |
Titanium Ti-6Al-4V | 44–66 |
Alumina ceramic | 3–5 |
Silicon nitride | 4–8 |
PMMA (acrylic) | 0.7–1.6 |
How KIc Is Used in Structural Design
Damage Tolerance Design
The damage-tolerant design philosophy assumes that all structures contain crack-like defects of the maximum size that NDT inspection cannot reliably detect (the “initial assumed crack size”). KIc enables calculation of whether this assumed crack will propagate catastrophically at the design service stress:
a_critical = (1/π) × (KIc/(σ × F))²
If the assumed initial crack size is less than a_critical, the component is safe. The ratio a_critical/a_initial defines the safety margin. For fracture-critical aerospace components (landing gear, wing spar caps), a_critical must exceed the initial assumed crack by a factor of at least 2–4.
Critical Stress Determination
Conversely, for a known crack size (from NDT), the critical stress before fracture is:
σ_critical = KIc / (F × √(π × a))
This enables retirement criteria for components with detected cracks — safe operating stress levels for continued service.
Industrial Applications
KIc data is mandatory for aerospace primary structure certification per FAA Advisory Circulars, ASME Boiler and Pressure Vessel Code Section VIII Division 3 (high-pressure vessels), DNV-RP-C203 offshore structure fitness-for-service, and nuclear pressure vessel integrity assessments under ASME Code Case N-749.
Conclusion
KIc is the most fundamental and conservative measure of a material’s resistance to crack-driven failure under worst-case (plane-strain) conditions. By defining the threshold at which cracks propagate catastrophically, it provides the critical link between material properties, defect size, and applied stress in fracture mechanics. This makes KIc indispensable for damage-tolerant design, structural integrity assessment, and safety-critical engineering decisions — ensuring that components operate reliably even in the presence of unavoidable flaws.
