ASTM D7639 Zirconium Treatment Weight & Thickness Testing by XRF
ASTM D7639 includes determining the mass of zirconium (Zr) coating weight per unit area of metal substrates using X-ray fluorescence (XRF) spectrometry. The values are considered as a standard when expressed in SI units.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM D7639 describes a standard test method for determining the zirconium treatment weight or coating thickness on metal substrates using X-ray fluorescence (XRF) spectrometry. Zirconium-based conversion coatings are increasingly used as environmentally friendly replacements for chromate and phosphate pretreatments on aluminum, steel, and zinc surfaces.
XRF provides rapid, non-destructive measurement of zirconium coating weight, enabling real-time process control in automotive, appliance, and general industrial coating operations.
Scope, Applications, and Benefits
Scope
ASTM D7639 covers:
- Zirconium coating weight (mg/m²) on aluminum, steel, and zinc substrates
- Conversion coating thickness estimation from coating weight data
- Non-destructive XRF measurement of zirconium treatment
- Process control and quality assurance of zirconium pretreatment lines
Applications
- Automotive body-in-white pretreatment quality control
- Appliance and coil coating pretreatment verification
- Aerospace aluminum surface treatment qualification
- Industrial metal finishing quality assurance
- Comparative evaluation of zirconium pretreatment formulations
Benefits
- Rapid, non-destructive measurement in seconds
- Applicable to multiple substrate types
- Supports real-time process control
- Eliminates wet chemical stripping methods
- Portable XRF systems enable production-floor measurement

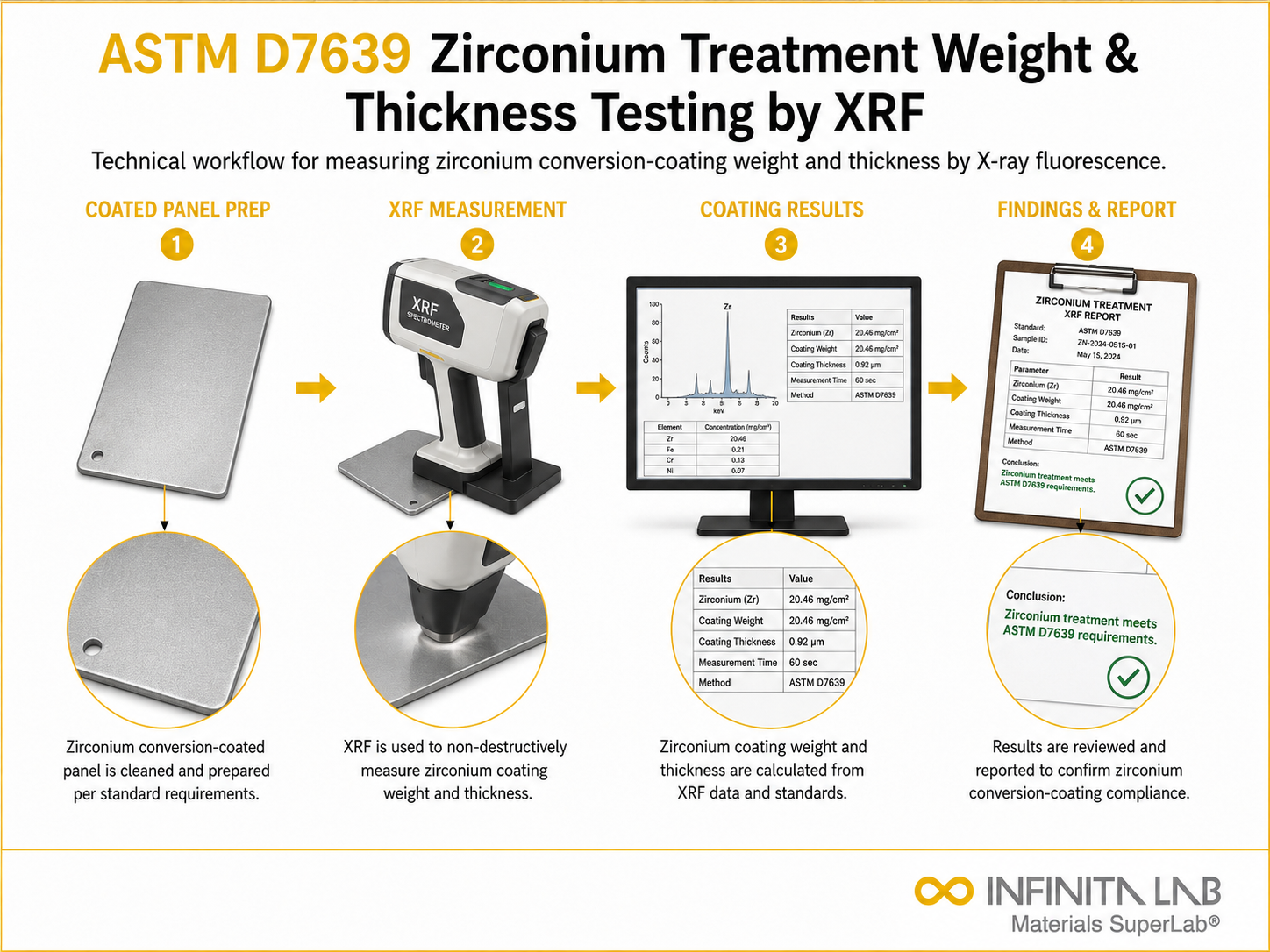

Test Process
Instrument Calibration
Calibrate the XRF spectrometer using certified zirconium coating reference standards on equivalent substrate materials.
1Sample Preparation
Clean the treated metal substrate surface to remove loose contamination; ensure the measurement area is representative
2XRF Measurement
Position the XRF probe on the coated surface and measure zirconium emission intensity.
3Coating Weight Calculation
Convert measured Zr X-ray intensity to coating weight (mg/m²) or thickness using the calibration curve.
4Technical Specifications
| Parameter | Details |
|---|---|
| Standard | ASTM D7639 |
| Test Principle | X-Ray Fluorescence (XRF) spectrometry |
| Applicable Substrates | Aluminum, cold-rolled steel, galvanized steel |
| Measured Output | Zirconium coating weight (mg/m²) |
| Instrument Type | Wavelength or energy-dispersive XRF |
| Measurement Time | Seconds to minutes per measurement |
Instrumentation Used for Testing
- X-ray fluorescence (XRF) spectrometer
- Calibration standards for zirconium coatings
- Sample positioning stage
- Surface cleaning tools
- Data acquisition and analysis software
Results and Deliverables
- Zirconium treatment weight in mg/m²
- Coating weight distribution across treated panels
- Calibration curve and method validation data
- Process control charts for pretreatment line monitoring
- Pass/fail assessment against coating weight specifications
- Comparative data for pretreatment formulation evaluation
Why Choose Infinita Lab for ASTM D7639?
Infinita Lab is a trusted USA-based testing laboratory offering ASTM D7639 testing services across an extensive network of accredited facilities across the USA.
Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
Chromate conversion coatings contain hexavalent chromium (Cr⁶⁺), a carcinogen subject to strict regulatory restrictions. Zirconium-based pretreatments provide comparable adhesion and corrosion protection without the environmental and health hazards of chromate.
Typical zirconium coating weights for automotive pretreatment range from approximately 10 to 100 mg/m², depending on the specific process chemistry, substrate, and performance requirements
The method has been validated for aluminum, cold-rolled steel, and galvanized steel substrates. Separate calibration curves are required for each substrate type due to differences in matrix absorption effects.
XRF provides excellent accuracy and repeatability for zirconium measurement, with typical measurement uncertainties of ±5–10% of the reading when proper calibration standards are used.
Yes, portable energy-dispersive XRF (EDXRF) instruments are well-suited for production-floor measurement of zirconium coating weight, enabling rapid in-process QC without removing panels from the line.
