Inorganic Multilayer Systems: Characterization, Defects & Testing Methods

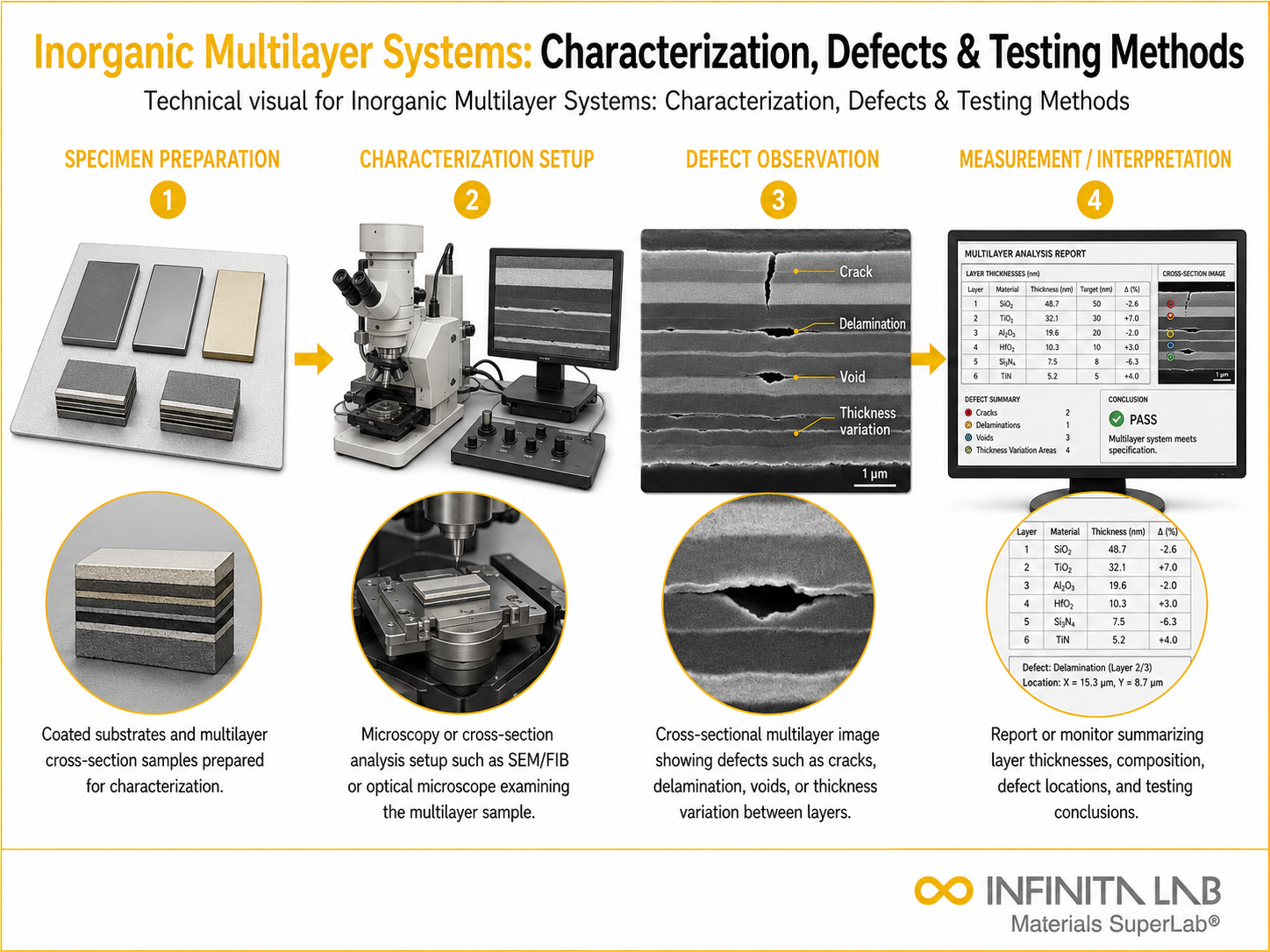

TEM cross-sectional analysis of inorganic multilayer semiconductor film stack structureWhat Are Inorganic Multilayer Systems?
Inorganic multilayer systems are engineered thin film structures consisting of multiple layers of inorganic materials—metals, semiconductors, dielectrics, or combinations—deposited sequentially on a substrate to create a material stack with properties that cannot be achieved by any single layer alone. The individual layers may be just a few atomic layers (angstroms) to hundreds of nanometers thick, and the total stack may contain dozens to hundreds of individual layers.
Inorganic multilayer systems are ubiquitous in semiconductor devices, optical coatings, hard protective coatings, magnetic storage media, and photovoltaic cells across the microelectronics, optics, and energy industries.
Types and Examples of Inorganic Multilayer Systems
Semiconductor Device Metallization Stacks
Modern logic and memory ICs contain 10–15+ layers of copper interconnect wiring separated by dielectric layers (SiO₂, low-k dielectrics, air gaps). Barrier and liner layers (TaN, TiN, Co) prevent copper diffusion into the dielectric and improve adhesion.
Anti-Reflection and Optical Coatings
Alternating high- and low-refractive-index dielectric layers (TiO₂/SiO₂, Ta₂O₅/SiO₂, HfO₂/SiO₂) create optical multilayers for anti-reflection, high-reflection (laser cavity mirrors), bandpass filters, and beam splitters. Optical thickness control to λ/4 precision is essential.
Hard and Wear-Resistant Coatings
Alternating layers of TiN, AlTiN, CrN, and DLC (diamond-like carbon) create superlattice coatings with hardness exceeding the rule-of-mixtures for individual layers. Used for cutting tool coatings, mold inserts, and wear-resistant components.
Magnetic Storage and Spintronic Multilayers
Giant magnetoresistance (GMR) and tunnel magnetoresistance (TMR) devices consist of alternating magnetic and non-magnetic metal layers (Co/Cu, Fe/MgO/Fe) with angstrom-level thickness control. These structures are the basis of hard drive read heads and magnetic RAM (MRAM).
Photovoltaic Multilayer Cells
Tandem and multi-junction solar cells stack multiple semiconductor junctions (GaInP/GaAs/Ge; perovskite/silicon) to capture different spectral ranges, achieving efficiencies exceeding 40%.
Characterization Techniques for Multilayer Systems
X-Ray Reflectometry (XRR)
Measures layer thicknesses (0.5–200 nm), interface roughness, and density from the oscillation period and decay of the X-ray reflection curve. Non-destructive; applicable to all layer compositions.
X-Ray Diffraction (XRD) and Reciprocal Space Mapping
Determines crystal structure, phase, crystallographic orientation (texture), and superlattice periodicity of multilayer stacks. Cross-section TEM diffraction provides local crystallographic information.
Transmission Electron Microscopy (TEM / STEM-EDS)
Provides atomic-resolution cross-sectional images of layer thicknesses, interface quality, and crystallographic relationships. STEM-EDS maps elemental distribution across the stack with nanometer spatial resolution.
Secondary Ion Mass Spectrometry (SIMS)
Depth profiling by SIMS provides the elemental and isotopic composition as a function of depth through the multilayer stack with sub-nanometer depth resolution. Critical for detecting interdiffusion, dopant profiles, and contamination at interfaces.
Spectroscopic Ellipsometry
Non-destructive optical characterization of layer thicknesses, optical constants (n, k), and composition across the stack. Essential for dielectric and optical multilayer quality control.
Nanoindentation
Measures hardness and elastic modulus of hard multilayer coatings. The coating-substrate interaction must be accounted for in data analysis when indentation depth exceeds ~10% of coating thickness.
Why Choose Infinita Lab for Inorganic Multilayer Characterization?
Infinita Lab provides comprehensive thin film and multilayer characterization through its nationwide accredited analytical laboratory network, offering XRR, XRD, TEM/STEM-EDS, SIMS depth profiling, spectroscopic ellipsometry, and nanoindentation for semiconductor, optical, and hard coating applications.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is the typical thickness range of individual layers in semiconductor metallization stacks? Individual layers in advanced semiconductor metallization range from sub-nanometer barrier layers (TaN, Co liner: 0.5–2 nm) to copper fill layers in wide interconnects (hundreds of nm). Gate dielectric layers (HfO₂) in advanced logic nodes are just 1–2 nm thick—a few atomic layers.
How does XRR determine layer thickness in a multilayer film? XRR measures the specular reflection of X-rays at very small grazing angles. Thin film layers create Kiessig fringes (oscillations) in the reflectivity curve whose period is inversely proportional to layer thickness: Δθ ≈ λ/(2t), where λ is the X-ray wavelength and t is the layer thickness. Model fitting of the full reflectivity curve extracts thicknesses, densities, and interface roughnesses for all layers simultaneously.
Why is interface quality critical in multilayer optical coatings? Rough interfaces in optical multilayers scatter light, reducing the reflectance or transmittance of the coating below design values and broadening the spectral bandwidth of interference filters. For laser cavity mirrors requiring >99.9% reflectance, interfaces must be smoother than 0.3 nm RMS roughness, achievable only with highly controlled deposition processes.
What is the superlattice hardness enhancement effect in TiN/AlTiN multilayer coatings? The superlattice hardness enhancement (also called the hardness anomaly) occurs in nanometer-period multilayer coatings (period 5–15 nm) where the coherency strain and dislocation barrier effects at interfaces impede plastic deformation. Hardness values of 40–50 GPa—significantly exceeding the rule-of-mixtures (~25 GPa)—are achievable in optimized TiN/AlTiN superlattice coatings.
Can SIMS depth profiling detect interdiffusion at multilayer interfaces? Yes. SIMS is one of the most sensitive techniques for detecting interdiffusion at thin film interfaces, capable of resolving concentration profiles with depth resolution of 1–2 nm and detection limits of 10¹⁴–10¹⁶ atoms/cm³ for most elements. Annealing-induced interdiffusion—which degrades barrier layer integrity and device performance—is routinely monitored by SIMS depth profiling of before- and after-anneal samples.
