How to Identify Metals in Materials: PMI, XRF & Spectrometry Methods

Why Metal Identification Matters

In manufacturing, quality control, maintenance, and failure analysis, correctly identifying the metal or alloy in a component is fundamental. Using the wrong alloy — a stainless steel where a high-strength alloy steel was specified, or an aluminum alloy of the wrong temper — can lead to premature failures, safety incidents, and costly recalls. Metal mix-ups during fabrication or maintenance are more common than often assumed, making reliable metal identification methods an essential part of quality assurance.

Fortunately, modern analytical and testing techniques can identify metals and alloys quickly, accurately, and often non-destructively — from handheld field analyzers to laboratory-grade spectroscopy systems.

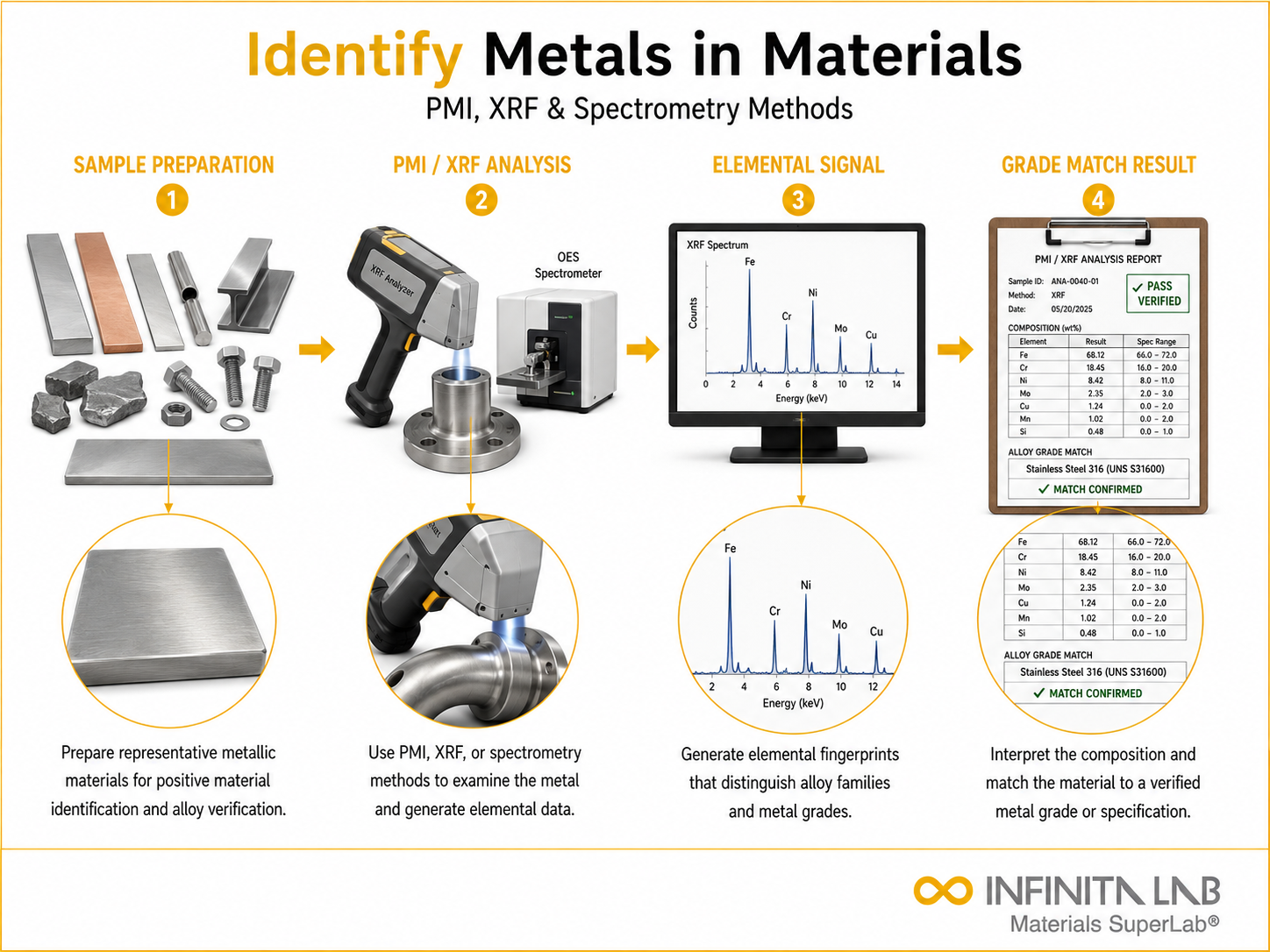

Methods for Identifying Metals

Visual and Physical Examination

Before any analytical testing, basic visual characteristics provide useful initial clues: color (silver-white for aluminum, reddish for copper, bright silver for stainless steel), magnetic response (ferromagnetic metals — carbon steel, some stainless steels — respond to a magnet; aluminum, austenitic stainless steel, and copper do not), density (lightweight feel of aluminum vs. heavier copper or steel), and surface condition.

While visual examination is insufficient for definitive identification, it narrows the possibilities and guides subsequent analytical testing.

X-Ray Fluorescence (XRF) Spectrometry

XRF is the most widely used method for rapid, non-destructive metal identification in the field and in quality control laboratories. A handheld XRF analyzer (HHXRF) irradiates the metal surface with X-rays, exciting characteristic fluorescence X-rays from each element present. The energy and intensity of these fluorescence X-rays identify and quantify every element in the surface layer (typically 10–100 µm depth).

Modern HHXRF analyzers identify over 2,500 alloy grades in seconds, making them indispensable for:

• Incoming material verification at receiving inspection
• Positive Material Identification (PMI) for pressure vessels, piping, and fasteners
• Scrap metal sorting and recycling
• In-service verification of critical plant components

XRF is governed by ASTM A751, API 578, and ASME PCC-2 for PMI applications.

Optical Emission Spectrometry (OES)

OES generates a plasma arc or spark on the metal surface, exciting atoms to emit light at characteristic wavelengths. The emitted spectrum is analyzed to quantify all elements — including light elements (C, S, P) that XRF cannot reliably measure in ferrous alloys. OES provides the full chemistry-certification-grade analysis required by material specifications such as ASTM A36, ASTM A36, or ASTM B209.

OES is semi-destructive (requiring a flat, clean surface for sparking) and primarily a laboratory technique. However, portable OES instruments (LIBS — Laser-Induced Breakdown Spectroscopy) are increasingly available for field use.

Laser-Induced Breakdown Spectroscopy (LIBS)

LIBS fires a focused laser pulse onto the sample surface, ablating a small amount of material and forming a plasma that emits characteristic elemental spectra. LIBS is virtually non-destructive (the ablation spot is microscopic), measures all elements, including light elements (C, N, Li), and operates in handheld form — making it increasingly popular for carbon steel vs. stainless steel differentiation, lithium alloy identification, and carbon content verification.

Energy Dispersive X-Ray Spectroscopy (EDS/EDX) in SEM

When a piece is small, identification must be performed at a microscopic scale — on individual inclusions, precipitates, or coatings. EDS in a scanning electron microscope provides elemental analysis at the micro- and nanoscale. This is particularly valuable in failure analysis when the identity of a corrosion product, inclusion, or foreign deposit must be confirmed.

Chemical Spot Testing

Simple wet chemistry spot tests use specific reagents that produce color reactions with certain metals. Historically used for field copper-nickel-stainless discrimination, spot tests have largely been superseded by XRF and LIBS for most applications — but remain a simple, no-equipment option for basic alloy group differentiation.

Positive Material Identification (PMI)

PMI is the formal quality assurance process of verifying that materials in safety-critical applications — pressure vessels, piping, valves, heat exchangers, and structural components — match the specified alloy grade before installation or return to service. PMI programs using XRF or OES are mandatory in the petrochemical, nuclear, and power generation industries to prevent mix-ups that could lead to catastrophic failures

Conclusion

Metal identification — utilizing techniques such as X-ray fluorescence (XRF), optical emission spectrometry (OES), laser-induced breakdown spectroscopy (LIBS), and SEM-EDS — provides accurate and reliable determination of alloy composition across industrial, manufacturing, and failure analysis applications. These methods enable rapid verification, prevent material mix-ups, and ensure compliance with specifications in safety-critical systems. Selecting the appropriate identification technique based on required accuracy, element detection (especially of light elements), and application conditions is essential for achieving precise results and maintaining quality assurance, making method selection as important as the identification outcome itself.
