What Are GRP Products? Glass-Reinforced Plastic Explained
What Are GRP Products?
GRP (Glass-Reinforced Plastic, also called GFRP or FRP – fibre-reinforced plastic – terminology varies by region) products are composite materials combining a polymer resin matrix – typically unsaturated polyester, vinyl ester, or epoxy – with glass fibre reinforcement. The glass fibres provide tensile strength and stiffness while the resin matrix binds the fibres, distributes load, and provides chemical and environmental resistance – combining the compressive strength of plastic resin with the tensile strength of glass fibre into a single material that resists both loading modes well.
Common Manufacturing Methods
- Filament winding: continuous and chopped glass fibre reinforcement is applied onto a rotating, advancing mandrel, building the product from the inside outward – common for GRP pipe
- Centrifugal casting: the product wall is built from the outside inward in a rotating mold, with chopped fibres and resin fed in via a moving feeder arm
- Hand lay-up and spray lay-up: manual or spray-applied resin and fibre layup, common for tanks, boat hulls, and structural panels
- Pultrusion: continuous fibre is pulled through a resin bath and heated die, producing constant cross-section structural profiles
Key Properties
GRP products are lightweight relative to steel or concrete alternatives (GRP pipe weighs roughly one-quarter of ductile iron pipe and one-tenth of concrete pipe of comparable capacity), highly corrosion-resistant (including resistance to electrolytic corrosion, since GRP is non-conductive), and can be engineered for fire retardance using non-flammable resin systems. Glass fibers themselves are non-magnetic, resistant to electromagnetic radiation, and chemically inert under many service conditions.
Common Applications
- Pipe and pipeline systems: sewer and drainage, potable water, irrigation, hydropower penstocks, cooling water, and sea intake/outfall systems
- Electrical: cable trays, conduits, transformer housings, and switchgear components, exploiting the combination of structural strength, electrical insulation, and fire performance
- Automotive: hood liners, body panels, bumper beams, and structural reinforcements
- Trenchless construction: pipe jacking, microtunneling, and horizontal directional drilling installations

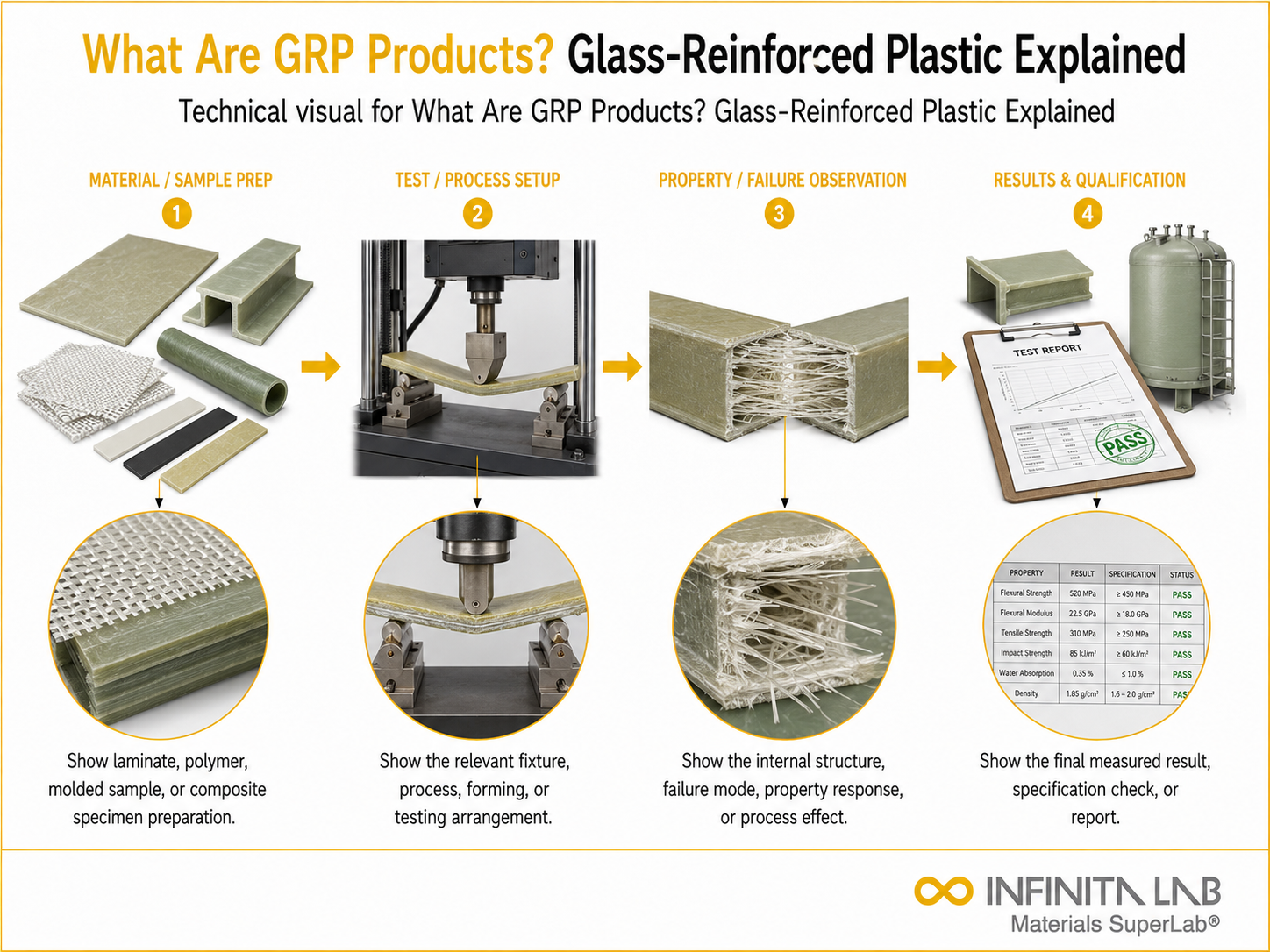

Testing and Qualification
GRP products are qualified through a combination of composite mechanical testing (tensile, flexural, and compressive properties per ASTM D3039, D790, and D695-family methods) and application-specific standards – for example, ASTM D2290 for apparent tensile strength of pipe products, and industry standards like AWWA C950 and BS EN 1796 specifically for GRP pipe.
Industry Specifications Referencing GRP Products
- ASTM D2290: apparent tensile strength of plastic and reinforced plastic pipe
- AWWA C950: GRP pressure pipe standard
- BS EN 1796, BS 8010: European GRP piping standards
Conclusion
GRP’s enduring popularity across pipe, electrical, and structural applications comes down to a genuinely favourable combination of properties – high strength-to-weight ratio, corrosion resistance, and electrical insulation – that’s difficult to match in a single material without the fabrication complexity or cost of alternatives like stainless steel or advanced composites.
What materials are used to manufacture GRP? GRP typically contains glass fibers embedded in a thermosetting resin such as polyester, vinyl ester, or epoxy. Fillers, pigments, fire retardants, ultraviolet stabilizers, and protective surface layers may also be added. The selected resin and reinforcement system depend on the required strength, chemical resistance, temperature capability, and manufacturing process.
What are the main properties of GRP? GRP offers a high strength-to-weight ratio, good corrosion resistance, low electrical conductivity, and relatively low maintenance requirements. It can also provide thermal insulation and design flexibility. Its exact properties depend on fiber type, fiber orientation, resin system, reinforcement content, manufacturing quality, and environmental exposure.
What types of GRP products are commonly available? Common GRP products include pipes, tanks, gratings, ladders, handrails, cable trays, roofing panels, wall panels, ducts, enclosures, profiles, and structural components. GRP is also used for boat hulls, vehicle body panels, wind turbine parts, chemical-processing equipment, and water-treatment systems.
Is GRP resistant to chemicals and corrosion? GRP can provide excellent resistance to water, salts, acids, alkalis, and many industrial chemicals when the correct resin system is used. Vinyl ester resins are frequently selected for severe chemical environments, while polyester systems may be suitable for general applications. Chemical compatibility should be confirmed for the actual concentration, temperature, and exposure duration.
How are GRP products inspected and tested? GRP products may be evaluated through visual inspection, dimensional checks, hardness testing, fiber-content analysis, tensile testing, flexural testing, impact testing, pressure testing, and ultrasonic inspection. Testing can identify voids, delamination, poor cure, incorrect reinforcement content, surface defects, and insufficient mechanical performance.
