Vertical Top-Down Electrospinning: Process, Parameters & Applications
What Is Electrospinning?
Electrospinning is a versatile polymer fibre fabrication technique that uses high electrostatic voltage to draw ultra-fine fibres — typically 10 nm to 10 µm in diameter — from a polymer solution or melt. The process produces non-woven mats of nanofibres with exceptionally high surface-area-to-volume ratios, fine pore structures, and functional surface chemistry — properties that make electrospun nanofibres valuable for filtration, biomedical scaffolds, sensors, energy storage, and composite reinforcement applications.

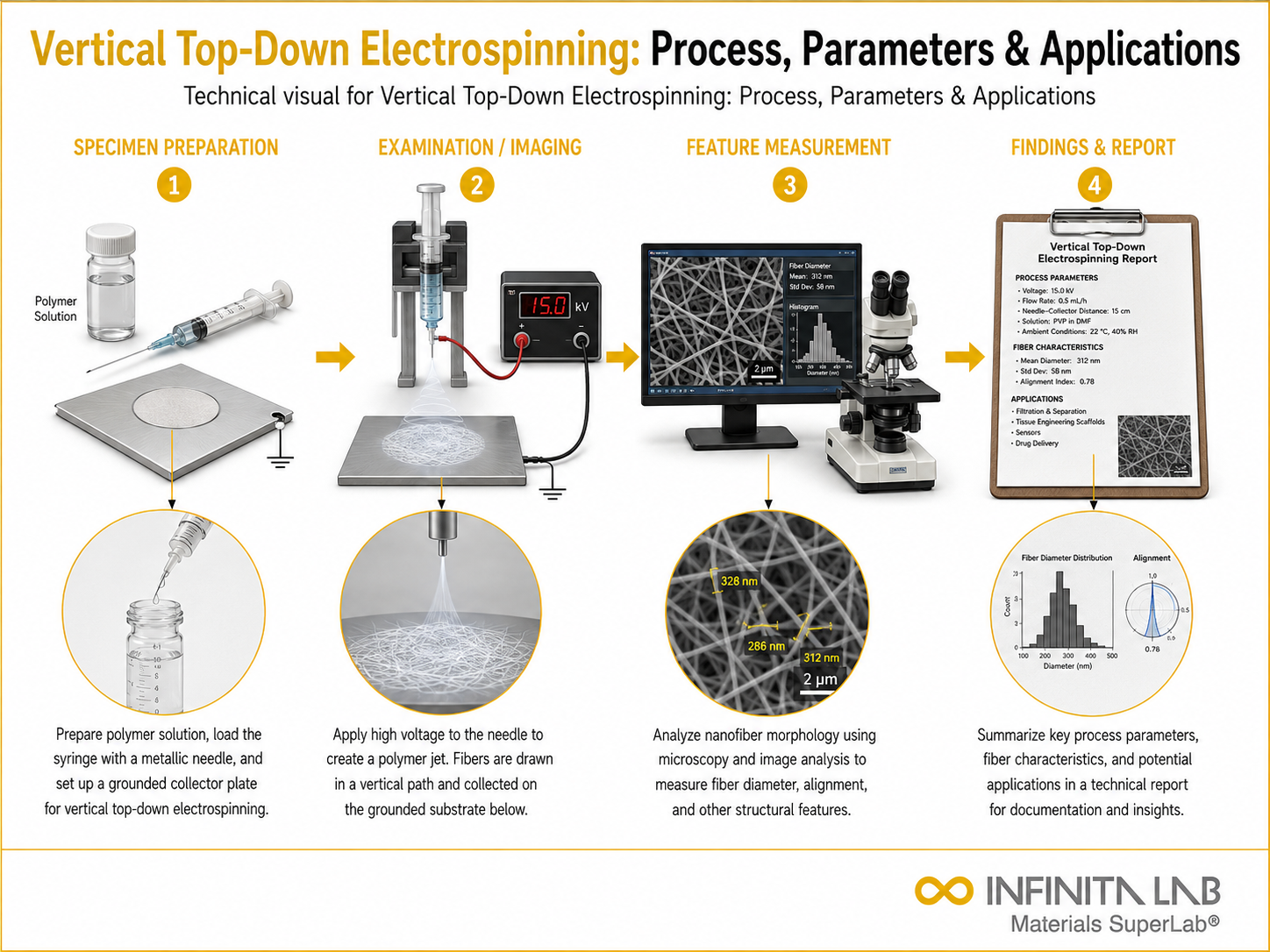

Vertical Top-Down Electrospinning Configuration
The most common electrospinning setup uses a vertical top-down configuration where:
- A polymer solution is loaded into a syringe or reservoir connected to a metal needle or spinneret
- The spinneret is positioned vertically above a grounded collector plate or drum
- A high voltage (typically 10–30 kV) is applied between the spinneret and the collector
- A syringe pump delivers polymer solution to the needle tip at a controlled flow rate
When the applied electrostatic force exceeds the surface tension of the polymer solution droplet at the needle tip, a conical pendant, known as the Taylor cone, forms, and the charged solution jet erupts from the apex of the Taylor cone. It undergoes whipping instability as it approaches the collector, leading to rapid solvent evaporation and diameter reduction. The result is a deposit of randomly oriented nanofibres on the collector surface.
Key Process Parameters in Electrospinning
Applied Voltage
Higher voltage increases the electrostatic driving force — producing finer fibres (up to a threshold) and greater jet instability. Too-high voltage can cause multiple jetting and bead formation. Optimal voltage is material-specific, typically 10–25 kV for most polymer-solvent systems.
Flow Rate
Flow rate controls the volume of polymer solution delivered to the Taylor cone per unit time. A low flow rate causes intermittent jetting; a high rate produces thick fibres and bead-on-string morphology. Typical flow rates range from 0.1 to 5 mL/hour.
Collector Distance
The needle-to-collector distance (typically 10–30 cm) determines the flight time available for solvent evaporation and fibre thinning. Shorter distance produces coarser fibres with residual solvent; longer distance may cause fibre breakage from excessive electrostatic field weakening.
Polymer Concentration and Molecular Weight
Polymer concentration determines solution viscosity and chain entanglement density — which govern whether beads (low concentration, insufficient entanglement) or continuous fibres (optimal concentration) form. Higher molecular weight enables fibre formation at lower concentrations. Concentration optimisation is fundamental to reproducible nanofibre production.
Solvent Properties
Solvent volatility (boiling point, vapour pressure), dielectric constant (conductivity), and surface tension govern Taylor cone stability and fibre diameter. Highly volatile solvents (acetone, DCM) enable rapid solidification but may cause fibre clogging; less volatile solvents (DMF, DMSO) allow finer fibres but require careful humidity control.
Characterisation of Electrospun Fibres
SEM and TEM characterise fibre morphology, diameter distribution, and pore structure. Fibre diameter distribution (mean, standard deviation) is measured from SEM images using image analysis software (ImageJ). Mechanical properties of electrospun mats are evaluated by tensile testing with a fine-force load cell. XPS and FTIR-ATR characterise surface chemistry.
Industrial Applications of Electrospun Nanofibres
Filtration
Electrospun PVDF, PAN, and polyamide nanofibre mats are used as high-efficiency filtration layers in air filters (HEPA/ULPA), liquid-filtration membranes, and face-mask filters. Their fine pore size and high surface area enable particulate capture below 0.3 µm with lower pressure drop than conventional fibrous media.
Biomedical Scaffolds
Electrospun scaffolds from biocompatible polymers (PCL, PLGA, collagen, gelatin) mimic the extracellular matrix fibre architecture, supporting cell attachment, proliferation, and tissue ingrowth for wound dressings, vascular grafts, and cartilage tissue engineering.
Energy Applications
Electrospun carbon nanofibre mats and lithium salt-incorporated PAN fibres are used as electrode materials and solid polymer electrolytes in lithium-ion batteries and supercapacitors, exploiting the high surface area and interconnected porosity.
Composite Reinforcement
Electrospun nanofibres integrated into polymer matrix composites as interlayer reinforcement improve delamination resistance and fracture toughness of structural laminates.
Conclusion
Electrospinning is a highly versatile and precise technique for producing ultra-fine polymer fibres with exceptional surface area, porosity, and functional properties. Careful control of processing parameters such as voltage, flow rate, and polymer characteristics enables the fabrication of tailored nanofibrous materials for a wide range of advanced applications. From filtration and biomedical scaffolds to energy systems and composite reinforcement, electrospinning plays a key role in modern materials engineering by enabling high-performance, application-specific fibre architectures.
