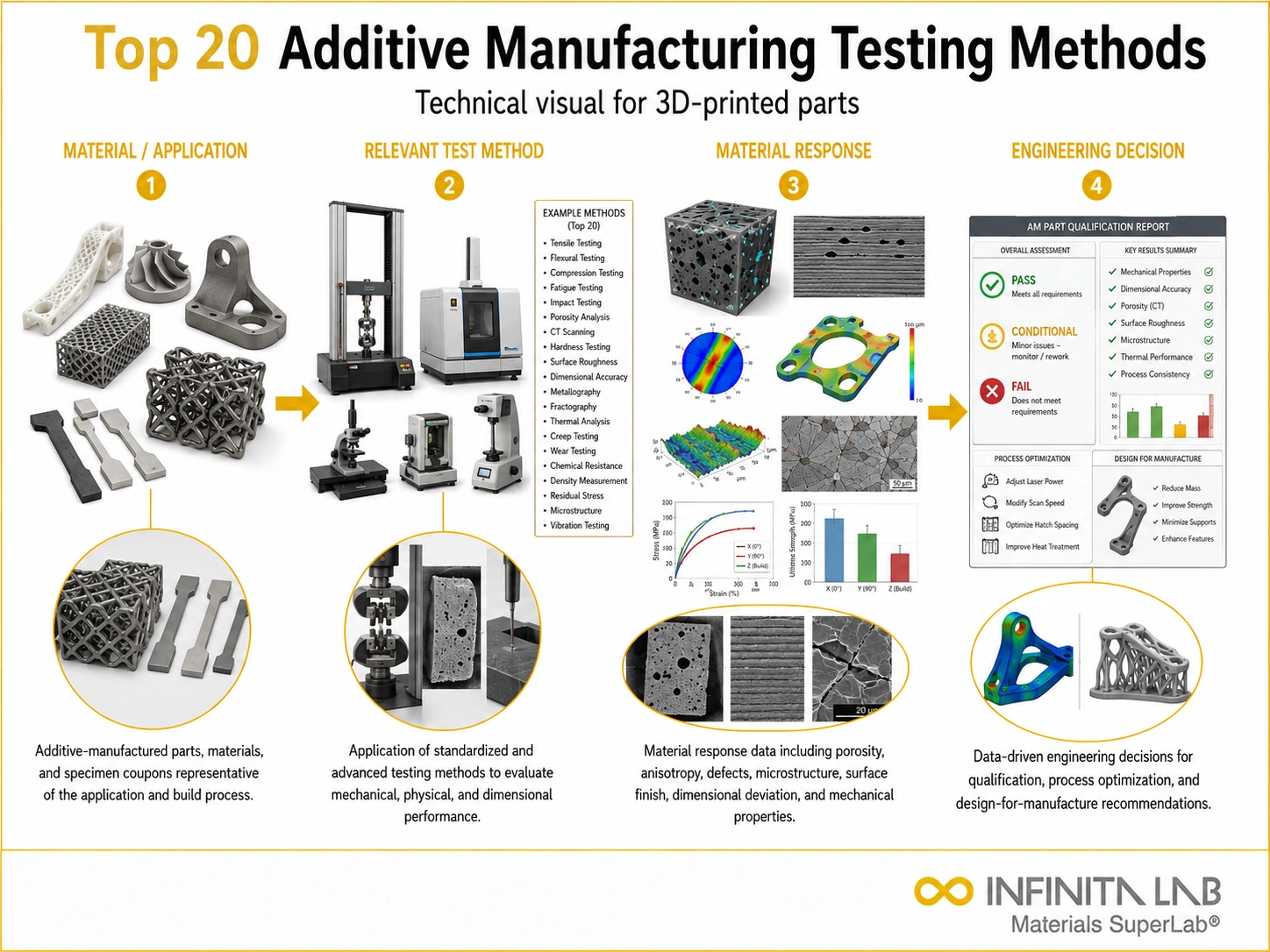

Top 20 Additive Manufacturing Testing Methods for 3D-Printed Parts

What Is Additive Manufacturing Testing?

Additive manufacturing (AM) testing evaluates 3D-printed metal, polymer, and composite parts for mechanical properties, internal defects, and dimensional accuracy. Because AM parts build up layer by layer and can exhibit anisotropic properties, porosity, and residual stress not seen in conventionally manufactured parts, testing programs combine standard material test methods with AM-specific defect detection techniques.

Why Additive Manufacturing Testing Matters

• Confirms mechanical properties meet specification despite build-direction anisotropy
• Detects internal porosity and defects unique to the layer-by-layer build process
• Verifies dimensional accuracy against complex, often non-standard geometries
• Supports qualification for regulated industries like aerospace and medical

Top 20 Additive Manufacturing Testing Methods

1. Tensile Testing (Build-Direction Specific, ASTM E8) – Measures strength and elongation, tested in multiple build orientations given AM’s anisotropic behaviour.
2. Fatigue Testing – Evaluates performance under cyclic loading, critical given AM parts’ sensitivity to surface porosity as crack initiation sites.
3. Computed Tomography (CT) Scanning – Non-destructively images internal porosity, voids, and inclusions throughout the part volume.
4. Powder Characterisation (Particle Size, Morphology, Flowability) – Verifies feedstock powder quality, a major driver of final part quality.
5. Chemical Composition Analysis (OES/ICP) – Confirms alloy composition matches specification and detects contamination.
6. Density / Porosity Testing (Archimedes Method) – Measures bulk density to estimate overall porosity level.
7. Surface Roughness Measurement – Quantifies as-built surface finish, which affects fatigue life and post-processing requirements.
8. Dimensional Accuracy / Coordinate Measuring Machine (CMM) Inspection – Verifies printed geometry against CAD specification.
9. Residual Stress Measurement (X-Ray Diffraction) – Evaluates internal stresses built up during rapid layer-by-layer solidification.
10. Microstructure Analysis (Optical/SEM Metallography) – Examines grain structure and melt-pool patterns unique to the AM process.
11. Hardness Testing – Provides a rapid indicator of material consistency and heat-treatment response across a build.
12. Build Orientation Property Mapping – Systematically tests properties in X, Y, and Z build directions to characterise anisotropy.
13. Hot Isostatic Pressing (HIP) Verification Testing – Confirms post-processing HIP treatment successfully closed internal porosity.
14. Thermal Analysis (DSC/TGA for Polymer AM) – Evaluates thermal properties and residual crystallinity in polymer 3D-printed parts.
15. Fracture Surface Analysis (Fractography) – Examines failure origins, often tracing back to specific porosity or lack-of-fusion defects.
16. Non-Destructive Testing – Ultrasonic Inspection – Detects subsurface defects as an alternative or complement to CT scanning.
17. Layer Adhesion / Interlayer Bond Strength Testing – Evaluates bond strength between printed layers, a common weak point in polymer and metal AM.
18. Environmental / Accelerated Ageing Testing – Assesses long-term material stability, particularly relevant for polymer AM parts.
19. Powder Reuse / Degradation Testing – Evaluates how repeated powder recycling through the print process affects final part quality.
20. Witness Coupon Testing – Standardised test specimens printed alongside production parts in the same build to validate process consistency.

Additive Manufacturing Test Method Comparison

Applications by Industry

Aerospace – Extensive CT scanning, fatigue testing, and build-orientation property mapping given flight-critical component requirements. Medical Devices – Porous implant structures tested for mechanical properties and biocompatibility alongside standard AM defect screening. Automotive – Rapid prototyping and low-volume production parts tested for mechanical properties and dimensional accuracy. Industrial Tooling – Jigs, fixtures, and tooling tested primarily for dimensional accuracy and durability under repeated use.

Industry Standards Referencing Additive Manufacturing Testing

ASTM F3122 (mechanical property evaluation for AM), ASTM F3049 (powder characterisation), ASTM E1441 (CT imaging guide), ASTM E2544 (CMM/dimensional metrology), ISO/ASTM 52900 series (AM terminology and qualification)

Advantages and Limitations

Advantages: Detects internal defects impossible to find with surface inspection alone; establishes build-direction-specific design allowables for anisotropic AM materials; supports qualification pathways for regulated industries adopting AM parts. Limitations: CT scanning resolution and part-size limitations mean very fine porosity or large parts can be difficult to fully characterise; witness coupons don’t always perfectly represent defect behaviour in complex production geometries; AM-specific standards are still maturing relative to conventional manufacturing standards.

Conclusion

Because additive manufacturing introduces failure modes and property variations that don’t exist in conventionally manufactured parts – build-direction anisotropy, layer-driven porosity, and residual stress – testing programs must go beyond standard material characterisation to include AM-specific defect detection and orientation-based property mapping.
