Tensile Testing Procedures: A Step-by-Step Guide
What Is Tensile Testing?
Tensile testing applies a controlled, increasing pulling force to a standardised specimen until it deforms and ultimately fractures, generating a stress-strain curve from which key mechanical properties are derived. While the specific standard varies by material — ASTM E8 for metals, D638 for plastics, D412 for rubber, D3039 for composites — the underlying procedure follows the same basic sequence across all of them.

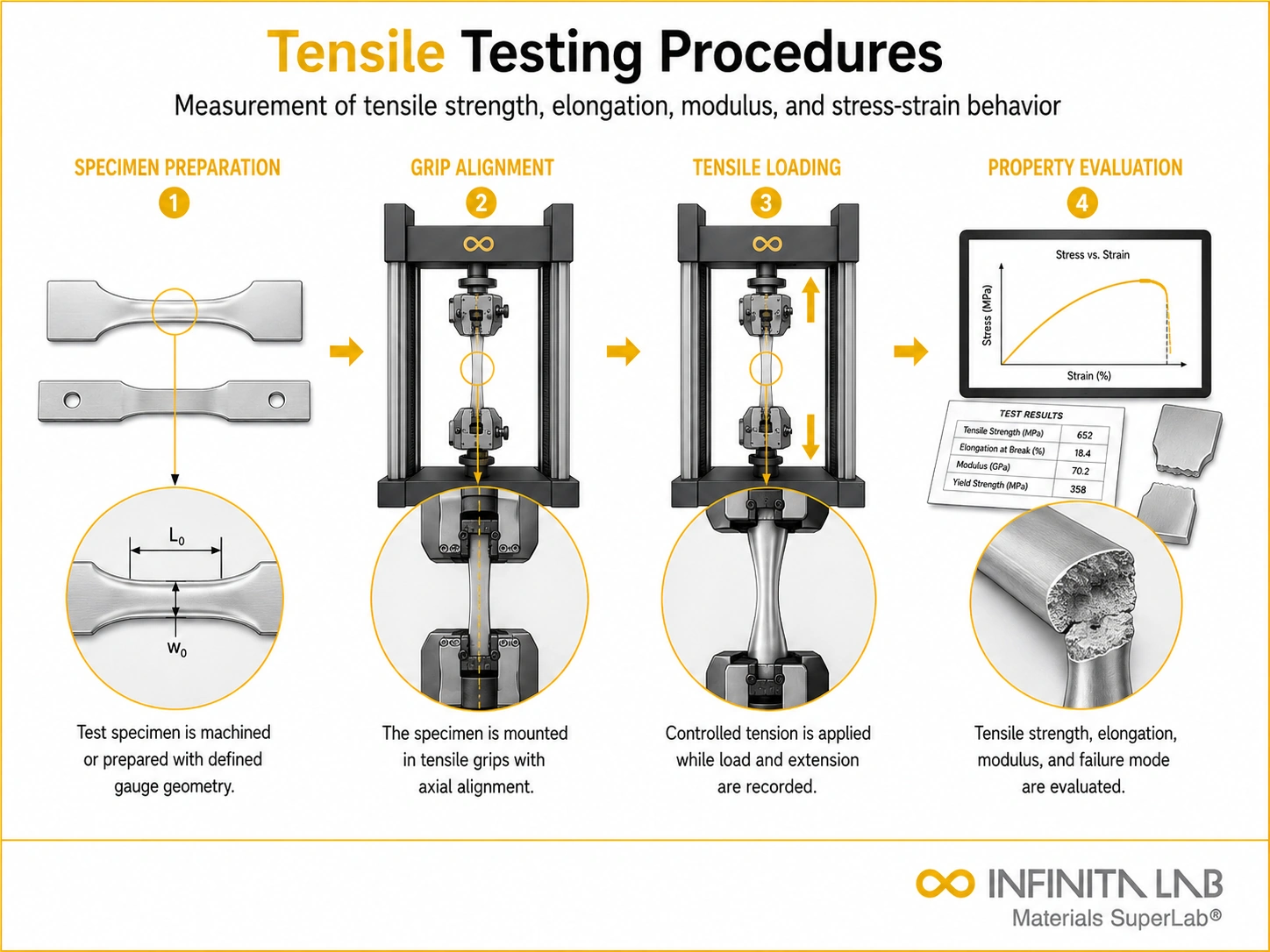

General Test Procedure
- Prepare specimens to the dimensions and geometry specified by the applicable standard, ensuring smooth, parallel gauge sections free of machining defects or stress risers
- Condition specimens at the temperature and humidity specified by the standard (commonly 23°C ± 2°C, 50% RH) for a defined period before testing
- Measure and record specimen cross-sectional dimensions at multiple points along the gauge length
- Mount the specimen in the testing machine’s grips, aligning the specimen axis with the direction of applied force to avoid introducing bending stress
- Attach an extensometer over the gauge length for accurate strain measurement, since crosshead displacement alone includes machine and grip compliance
- Apply load at a controlled, constant rate (crosshead speed or strain rate) until fracture, recording load and extension continuously
- Analyse the resulting stress-strain curve to extract tensile strength, yield strength, elongation, and modulus
Reading the Stress-Strain Curve
The curve typically shows a linear elastic region (from which modulus is calculated as the slope), a yield point marking the onset of permanent deformation, a plastic deformation region, an ultimate tensile strength peak, and finally a fracture point. For materials without a sharp yield point, a 0.2% offset method is used: a line parallel to the elastic region is drawn from a 0.002 strain offset, and its intersection with the curve defines the yield strength.
Strain Rate Considerations
Strain rate typically changes partway through the test — slower through the elastic region and initial yield (where precision matters most for calculating modulus and yield strength) and faster afterwards to reduce total test time once the material is in the more strain-rate-insensitive plastic flow region. For metals under ASTM E8, this might mean roughly 0.003 s⁻¹ through yield, increasing to 0.05-0.5 s⁻¹ afterwards.
Common Properties Extracted
- Ultimate tensile strength (UTS): maximum stress sustained before fracture
- Yield strength: stress at the onset of permanent (plastic) deformation
- Elongation at break: total percentage stretch of the gauge length at fracture, a ductility measure
- Modulus of elasticity: stiffness, from the slope of the elastic region
- Reduction of area (for metals): a secondary ductility measure comparing pre- and post-fracture cross-section
Industry Specifications Referencing Tensile Testing Procedures
- ASTM E8/E8M: metallic materials
- ASTM D638: unreinforced and reinforced plastics
- ISO 6892: international equivalent for metals
- ASTM D412: rubber and elastomers
Conclusion
The mechanics of tensile testing are consistent across material classes, but the details that actually determine data quality — extensometer use, strain rate control, and specimen alignment — are where most testing errors originate, regardless of which specific standard is being followed.
How is a tensile specimen prepared? The specimen is machined, molded, or cut to the dimensions required by the applicable standard. Its gauge length, width, thickness, surface condition, and orientation must be carefully controlled.
Why is specimen alignment important? The specimen must be aligned with the direction of the applied load. Misalignment can create bending stresses, uneven loading, premature failure, and inaccurate tensile-property measurements.
What is tensile strength? Tensile strength is the maximum tensile stress a material can withstand during the test. It is calculated by dividing the highest recorded force by the specimen’s original cross-sectional area.
What factors can affect tensile test results? Results may be influenced by specimen dimensions, test speed, temperature, surface condition, material orientation, grip pressure, machine calibration, and the method used to measure strain.
What should a tensile test report include? The report should include material identification, specimen dimensions, test standard, loading rate, tensile strength, yield strength, elongation, modulus, fracture location, and any deviations from the test procedure.
