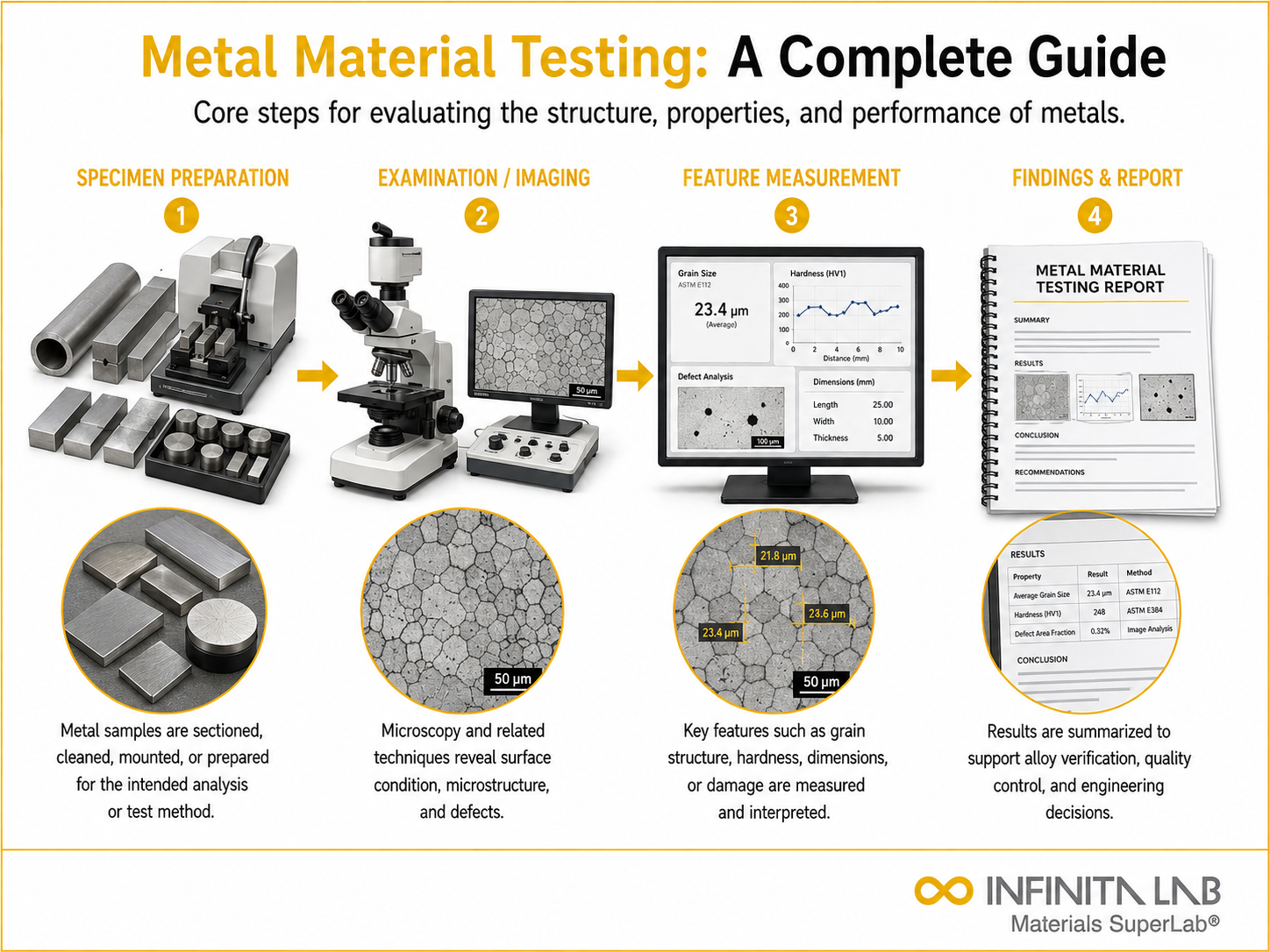

Metal Material Testing: A Complete Guide
What Does Metal Material Testing Cover?
Metal material testing verifies that a metal product – raw stock, a finished component, or a welded assembly – meets its specified mechanical, chemical, and structural requirements before it enters service. A complete testing program typically layers chemical composition verification, mechanical property testing, metallographic examination, and non-destructive inspection, since no single method addresses all of a metal’s quality-relevant characteristics.
Chemical Composition Verification
Confirms the metal’s alloy composition matches specification, typically via optical emission spectroscopy (OES) for fast production-line verification or X-ray fluorescence (XRF) for portable or non-destructive screening. This step catches both gross material mix-ups and subtle out-of-spec alloying element levels before they propagate downstream.
Mechanical Property Testing
- Tensile testing (ASTM E8/E8M): specimens are machined from defined locations and orientations (longitudinal, transverse, through-thickness) in the product to characterise directional property variation, measuring yield strength, ultimate tensile strength, and elongation
- Hardness testing (ASTM E10, E18, E92): Brinell, Rockwell, and Vickers methods provide rapid, economical verification of heat treatment response and serve as an approximate proxy for tensile strength; hardness profiles (microhardness traverses) characterise case depth in carburised or nitrided components
- Impact testing (ASTM E23): Charpy V-notch testing at specified temperatures measures toughness, and is mandatory for pressure vessel steel (ASME), structural steel (ASTM A6), pipeline steel (API 5L), and offshore structural steel (EN 10225)
- Fracture toughness testing: determines the critical stress intensity factor (KIc) or J-integral at which a pre-existing crack will propagate, critical for fracture-critical structural applications
Metallographic Examination
Metallography reveals grain size, phase distribution, and inclusion content via polished and etched cross-sections examined under magnification, confirming that heat treatment or welding produced the intended microstructure rather than an unintended one that mechanical testing alone might not flag.
Non-Destructive Testing
NDT methods – ultrasonic, radiographic, magnetic particle, and liquid penetrant testing – inspect for internal and surface defects without consuming the part, essential for welds, forgings, and castings where 100% destructive sampling isn’t practical.
Documentation and Traceability
Results are typically documented in a Mill Test Certificate (MTC), identifying the applicable standard, material grade, heat number, dimensions, chemical composition, and physical property results – the record that ties a specific piece of material back to its verified test data for traceability purposes.
Industry Specifications Referencing Metal Material Testing
- ASTM E8, A370: tensile and mechanical testing of steel and metal products
- ASTM E10, E18, E92: hardness testing methods
- ASTM E23: Charpy impact testing
- API 5L, ASME, EN 10225: application-specific mechanical requirements referencing these base test methods
Conclusion
A metal material testing program is only as strong as its weakest link – verified chemical composition means little without confirmed mechanical properties, and mechanical data means little without the metallographic and NDT evidence that the material’s internal structure matches what those numbers assume.
Why is metal testing important? Metal testing helps verify that a material meets design specifications, industry standards, and customer requirements. It can identify incorrect alloy grades, contamination, heat-treatment problems, internal defects, corrosion, and inadequate mechanical properties. Testing also supports supplier qualification, quality control, product development, and failure investigations.
How is the chemical composition of a metal determined? Metal composition can be measured using optical emission spectroscopy, X-ray fluorescence, inductively coupled plasma analysis, combustion analysis, or wet chemistry. These methods identify and quantify elements such as carbon, chromium, nickel, manganese, molybdenum, and silicon. The results are compared with material specifications to confirm the alloy grade.
What mechanical tests are commonly performed on metals? Common mechanical tests include tensile, compression, bend, impact, fatigue, creep, and fracture-toughness testing. These methods measure properties such as yield strength, tensile strength, elongation, stiffness, toughness, and resistance to repeated loading. The selected test should reflect the forces and conditions expected during actual service.
What is metal hardness testing? Hardness testing measures a metal’s resistance to indentation or permanent surface deformation. Rockwell, Brinell, Vickers, and Knoop are widely used hardness methods. Hardness results can help verify heat treatment, compare production batches, evaluate weld zones, and estimate resistance to wear or deformation.
What non-destructive testing methods are used for metals? Common non-destructive testing methods include ultrasonic testing, radiography, magnetic particle testing, liquid penetrant testing, eddy current testing, and visual inspection. These techniques can detect surface or internal discontinuities without making the component unusable. The correct method depends on the metal type, defect location, geometry, and inspection sensitivity required.
