Label Migration Testing: Ink and Adhesive Migration Analysis

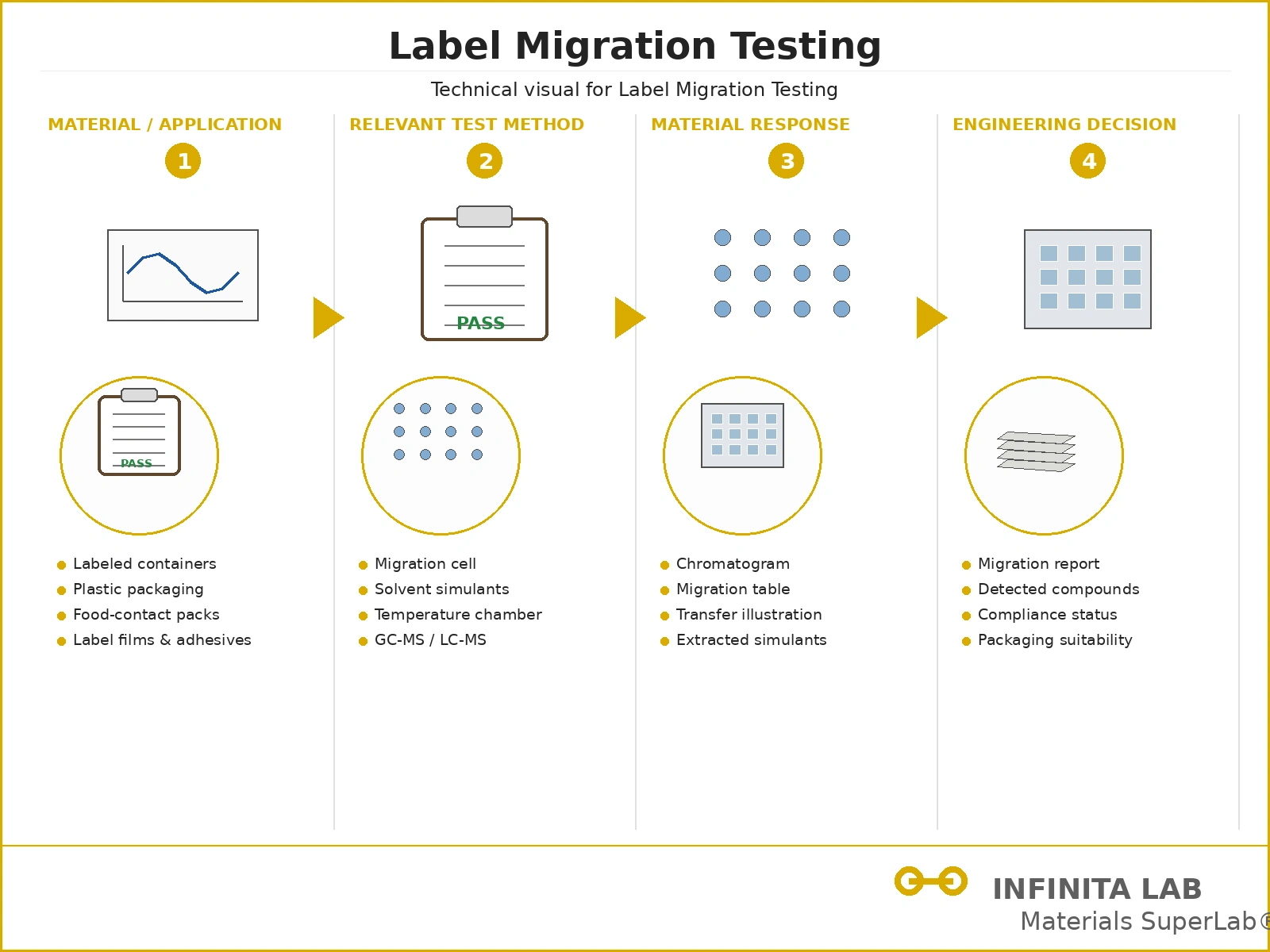

Representative Infinita Engineering Visual explaining the four-step workflow for Label Migration Testing.What Is Label Migration Testing?
Label migration testing quantifies chemicals — inks, adhesives, coatings — that transfer from a label or packaging component into food, verifying compliance with FDA and EU regulatory migration limits. Any substance reasonably expected to become a component of food due to packaging contact is regulated as an indirect food additive under 21 CFR.
Regulatory Limits
- US FDA (21 CFR 170-189): migration limits as low as 0.5 ppb or less for certain substances, depending on the specific regulation and food contact condition
- EU (EC 1935/2004): 10 ppb or less for substances not otherwise specifically evaluated
- 21 CFR 175.105 (adhesives): if an adhesive is separated from food by a functional barrier, or contact is limited to trace amounts at seams and edges, migration is generally assumed not to exceed 50 ppb
- State/local laws: California Proposition 65 can impose stricter limits than federal requirements
Test Procedure
- Select food simulants matching the food category the packaging will contact — Simulant D (vegetable oil) for fatty foods, Simulant A (water-based) for aqueous foods like soups and sauces
- Determine time and temperature conditions replicating actual use — for example, ambient long-term storage (approx. 40C for 10 days) versus hot-fill contact (approx. 70C for 2 hours)
- Expose the food-contact material to the simulant under the specified conditions
- Extract and analyze the simulant using GC-MS (volatile compounds) or LC-MS/MS (non-volatile compounds)
- Compare detected migration levels against the applicable regulatory threshold for the substance and contact condition
Key Compliance Consideration
A generic “FDA compliant” claim from a materials supplier is only meaningful if the tested conditions match actual end-use conditions — testing under Condition of Use E (room temperature, no thermal treatment) doesn’t validate a label intended for retort or hot-fill applications.
Industry Specifications Referencing Label Migration Testing
- 21 CFR Parts 170-189: primary US food contact substance regulations
- 21 CFR 175.105: adhesive-specific migration guidance
- EC 1935/2004: EU framework regulation for food contact materials
Conclusion
Migration testing only proves safety for the exact food type, temperature, and duration tested — matching the test protocol to actual packaging use conditions is the single most important factor in whether a compliance claim holds up under scrutiny.
What is label migration testing? Label migration testing evaluates whether chemicals from printing inks, adhesives, coatings, or label materials transfer into a packaged product. It is especially important for food, pharmaceutical, cosmetic, and medical packaging.
What is ink migration? Ink migration occurs when substances from printed areas move through packaging, transfer by direct contact, or enter the package headspace. This may affect product safety, quality, odour, taste, or appearance.
What is adhesive migration? Adhesive migration is the transfer of adhesive components, such as residual monomers, plasticizers, solvents, or additives, from a label into the packaging or product. Migration risk depends on the adhesive chemistry and package design.
How is label migration testing performed? The label or complete package is exposed to controlled temperature, time, and contact conditions. Extracts or food-simulating liquids are then analysed to identify and quantify substances that may have migrated.
Which analytical methods are commonly used? Common techniques include gas chromatography-mass spectrometry, liquid chromatography-mass spectrometry, headspace GC, FTIR spectroscopy, and elemental analysis. The selected method depends on the expected migrant and required detection limit.
