Fiber-Reinforced Plastic: Understanding Its Strength and Durability
What Is FRP Strength and Durability Testing?

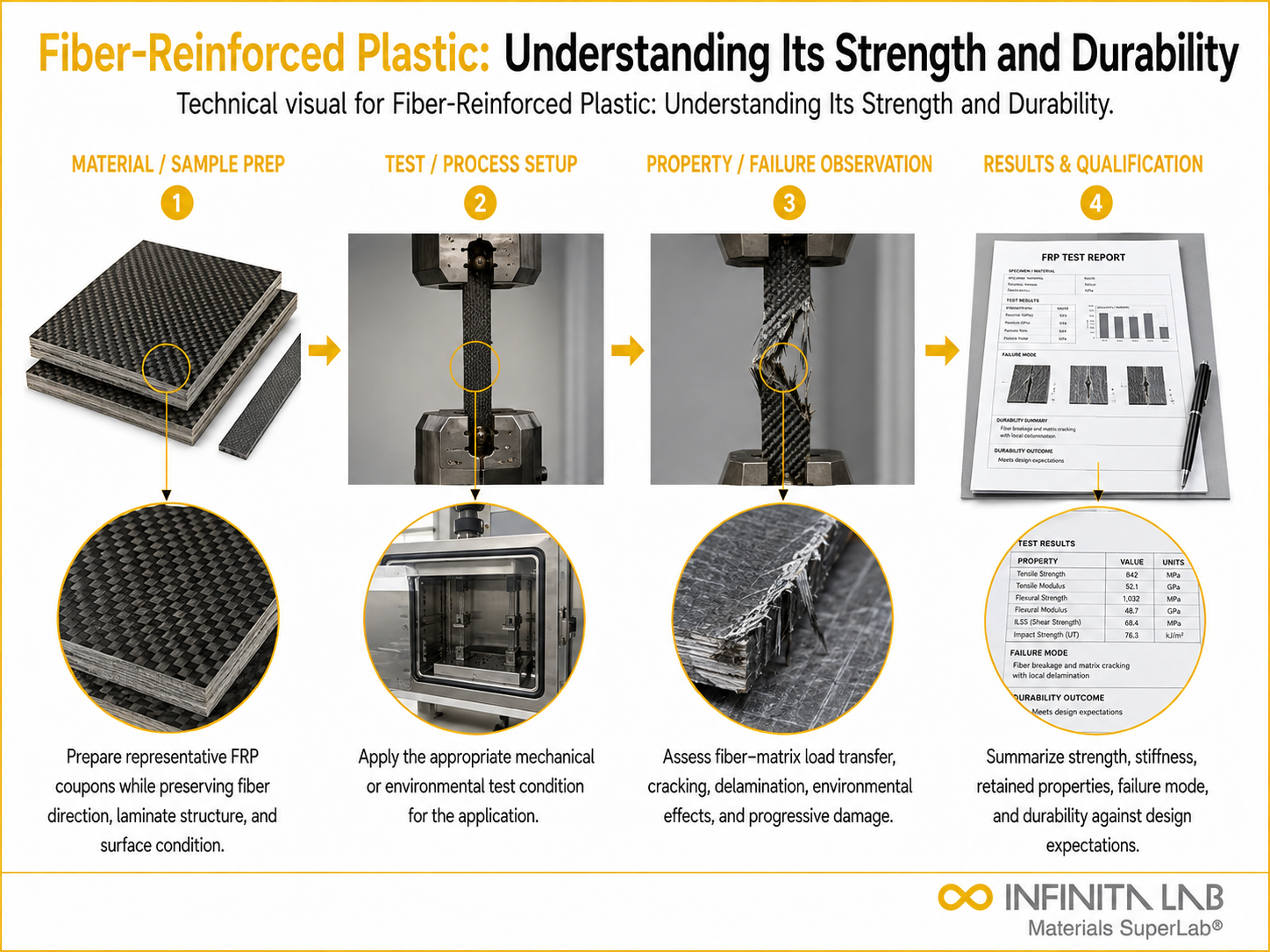

Fiber-reinforced plastic testing characterizes how composite laminates — continuous or discontinuous fiber reinforcement in a polymer matrix — perform under tensile, flexural, and compressive loading. These properties drive material qualification, structural design, and quality control for aerospace, automotive, and renewable energy applications where high strength-to-weight ratio is the primary design driver.
Tensile Testing (ASTM D3039)
Determines in-plane tensile modulus, Poisson’s ratio, and tensile strength for continuous or discontinuous fiber-reinforced composites. The laminate layup must be balanced and symmetric relative to the test direction to prevent twisting under load. Specimen width and thickness are measured at three points along the gauge section and averaged; tabs are recommended (though not mandatory) for unidirectional laminates to protect the specimen from grip damage.
Flexural Testing (ASTM D790)
Uses a three-point bend configuration — a rectangular bar supported at two points and loaded at the midpoint — to determine flexural stress, strain, and modulus. A support span-to-depth ratio of 16:1 is standard, with the specimen deflected until rupture or a maximum outer-fiber strain of 5%, whichever occurs first.
Compression Testing (ASTM D3410/D6641)
For fiber composites, compression testing typically follows methods distinct from rigid-plastic compression (ASTM D695) — D3410 uses shear loading on an unsupported gauge section, while D6641 uses combined loading compression, both designed to avoid the buckling failure modes that plague thin composite laminates under axial compression.
Durability Considerations
Moisture absorption (ASTM D5229) and environmental conditioning are frequently paired with mechanical testing, since composite strength and stiffness can degrade meaningfully after moisture uptake or thermal cycling — a factor that’s easy to miss if mechanical testing is run only on as-received, unconditioned specimens.
Also Read – ASTM E111: Young’s Modulus Testing for Metals, Polymers & Composites
Industry Specifications Referencing FRP Testing
- ASTM D3039, D790: baseline tensile and flexural methods
- ASTM D3410, D6641: composite-specific compression methods
- ASTM D5229: moisture absorption conditioning
- ISO 527-4/-5: international equivalents for tensile testing of reinforced plastics
Conclusion
FRP mechanical data is only meaningful in context — a tensile or flexural number without matching layup, conditioning, and failure mode documentation tells you far less than the full test package does. Failure mode analysis (how and where the specimen actually broke) is often as informative as the strength value itself.
What is FRP strength and durability testing? FRP testing evaluates how fiber-reinforced plastic performs under mechanical loads and environmental exposure. It helps determine whether the material can maintain its structural properties throughout its intended service life.
Which mechanical properties are commonly tested? Common properties include tensile strength, compressive strength, flexural strength, shear strength, impact resistance, and fatigue performance. Testing may also measure stiffness, strain, and failure behavior.
Which standards are used for FRP testing? Common standards include ASTM D3039 for tensile properties, ASTM D6641 for compression, ASTM D790 or ASTM D7264 for flexural testing, and ASTM D2344 for short-beam shear testing.
How is tensile strength measured in FRP materials? A prepared specimen is pulled at a controlled rate until it fractures. The test measures tensile strength, modulus, strain, and the influence of fiber orientation on material performance.
Why is fiber orientation important during testing? FRP materials are anisotropic, meaning their properties vary with fiber direction. Specimens must therefore be tested in relevant orientations to understand performance under actual service loads.
