Drop Testing Explained: Methods, Standards, and Procedures

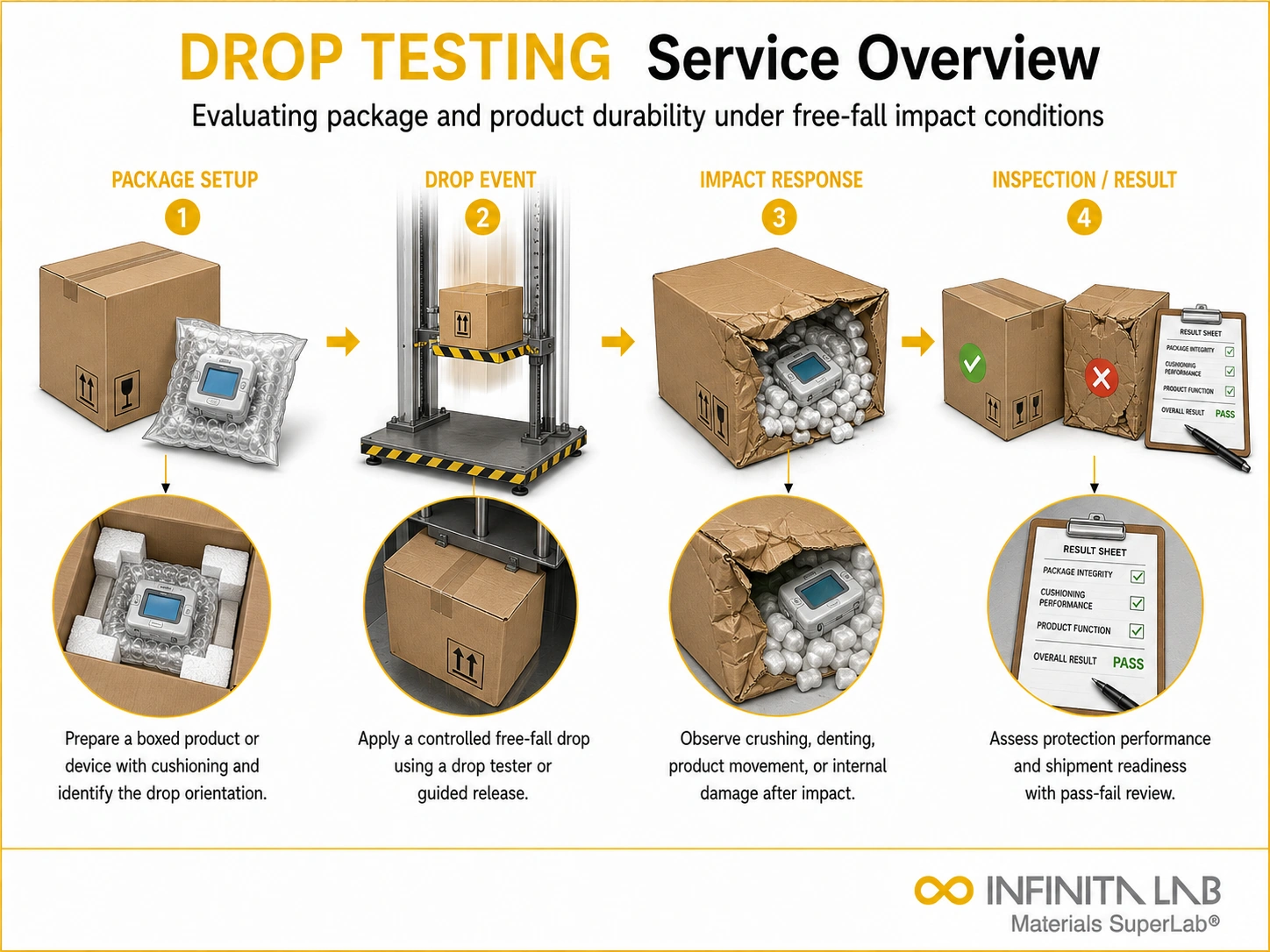

Representative Infinita Engineering Visual explaining the four-step workflow for Drop Testing Services.What Is ASTM D5276?
ASTM D5276 is the Standard Test Method for Drop Test of Loaded Containers by Free Fall. It evaluates whether a shipping container — box, drum, bag, or sack — weighing under 50 kg (110 lb) can withstand the shock of a free-fall impact during manual handling and distribution, and whether it adequately protects its contents. ASTM D5276 is a test method only; it doesn’t specify drop heights on its own and is typically paired with an acceptance standard like ASTM D4169 or an ISTA protocol.
Equipment Requirements
The drop apparatus must be able to: position the container in the correct orientation within 2 degrees of target at impact, control drop height accurately, lift the specimen without damage, and release it without imparting rotational, sideways, or pitching forces — a true free fall.
Test Procedure
- Select the container, orientation, and drop sequence per the referenced acceptance standard
- Condition fiberboard or paperboard containers per specified atmospheric conditions
- Position the container on the drop apparatus for the specified drop type (flat, edge, or corner)
- Measure drop height from the bottom surface, edge, or corner to the impact surface
- Release the container for a true free fall onto a flat, rigid surface (concrete, stone, or steel)
- Inspect for structural failure or content damage after each drop
A typical full sequence covers five drop orientations: weakest face, strongest face, longest edge, shortest edge, and most vulnerable corner — though the exact sequence and drop heights are governed by whichever acceptance standard is referenced alongside D5276.
Industry Specifications Referencing ASTM D5276
- ASTM D4169: performance testing standard commonly paired with D5276 for acceptance criteria
- ISTA 1A/3A: transit simulation protocols that reference D5276 drop methodology
- ISO 2248: international equivalent for vertical impact drop testing
Also Read – Bridge Impact Package Testing: Method, Standards & Protective Performance
Conclusion
ASTM D5276 standardizes how a drop test is executed — orientation control, release mechanism, height measurement — but the pass/fail bar comes from whatever standard it’s paired with. It’s best suited to containers that are manually handled at some point in the distribution chain; oversized or overweight containers typically require a different test method.
What is drop testing? Drop testing evaluates how a product or package withstands impacts caused by accidental drops during handling, storage, and transportation. It helps identify damage to the product, cushioning, closures, and outer packaging.
How is a drop test performed? The test item is raised to a specified height and released onto a hard impact surface. Drops may be performed on selected faces, edges, or corners based on the applicable standard and distribution risks.
What is the difference between free-fall and guided drop testing? Free-fall testing allows the package to fall without restraint. Guided systems control the package orientation more closely, helping it strike the impact surface at the intended face, edge, or corner.
How is the drop height selected? Drop height is determined by the applicable standard, package weight, distribution environment, and required severity. Heavier packages are generally tested from lower heights than lighter packages.
What package orientations are tested? Packages may be dropped on their most vulnerable faces, edges, and corners. The required sequence depends on the test standard, package shape, weight, and likely handling conditions.
