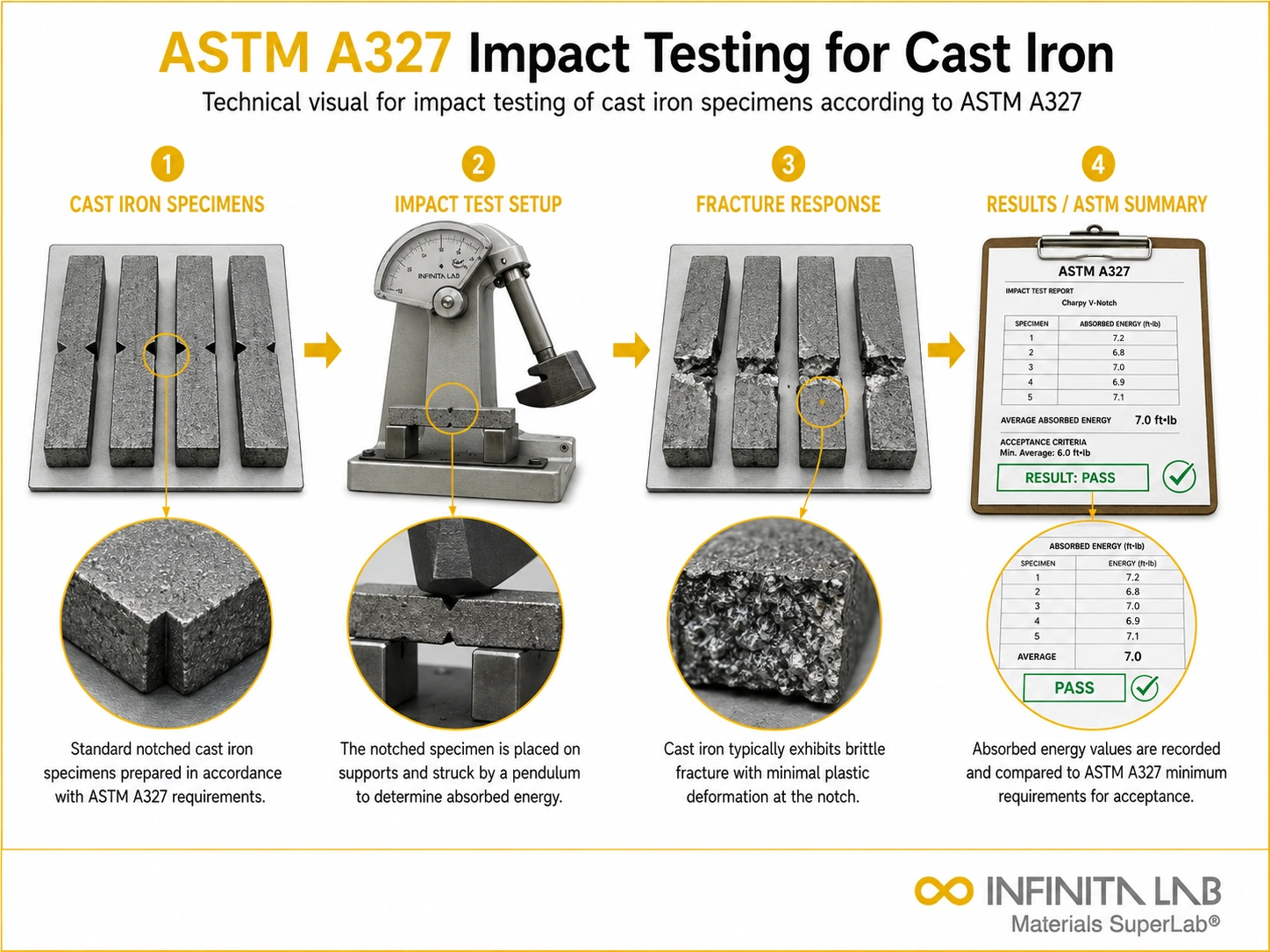

ASTM A327 Impact Testing for Cast Iron
ASTM A327 provides the standard test method for determining the impact testing of cast iron. It includes two test methods, “Method A: Round bar Charpy-type impact test for gray and white irons”, and “Method B: Standard Charpy-type impact test for malleable and ductile irons”.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM A327 defines a standardized impact testing method for evaluating the toughness of cast iron materials. The test measures cast iron’s ability to absorb energy under sudden loading, which is critical for understanding its behavior under impact conditions.
This method is commonly used for gray and ductile cast irons in applications where resistance to shock or dynamic loading is important. It helps manufacturers and engineers assess material performance and suitability for structural and mechanical components.
Scope, Applications, and Benefits
Scope
ASTM A327 evaluates the impact resistance of cast iron using a pendulum-type impact test. The test determines the energy absorbed during fracture and provides insight into material toughness and brittleness.
The test evaluates:
- Impact energy absorption of cast iron
- Toughness and resistance to sudden loading
- Fracture behavior under impact conditions
- Material brittleness and ductility
- Performance of cast iron in dynamic environments
Applications
- Gray and ductile cast iron components
- Automotive and engine parts
- Industrial machinery components
- Pipes, fittings, and structural castings
- Heavy equipment and infrastructure materials
- Quality control in foundries
Benefits
- Provides a standardized evaluation of impact toughness
- Helps assess material suitability for dynamic loads
- Supports quality control of cast iron products
- Assists in failure analysis and prevention
- Enables comparison of different cast iron grades
Test Process
Sample Preparation
Standard test specimens are machined from cast iron materials.
1Specimen Conditioning
Samples are conditioned to required temperature prior to testing if specified.
2Impact Testing
A pendulum hammer strikes the specimen to fracture it and measure absorbed energy.
3Data Recording & Evaluation
Impact energy values are recorded and analyzed to determine material toughness.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Gray and ductile cast iron |
| Specimen Type | Unnotched or notched bar (method dependent) |
| Impact Energy Range | ~2 J to 50 J |
| Test Temperature | Room temperature or specified conditions |
| Pendulum Capacity | ~150 J to 300 J |
| Measured Outputs | Impact energy (J), fracture characteristics |
Instrumentation Used for Testing
- Pendulum impact testing machine (Charpy/Izod type)
- Specimen preparation and machining tools
- Temperature conditioning chamber (optional)
- Measuring and calibration equipment
- Safety enclosures
- Data acquisition system
Results and Deliverables
- Impact energy absorption values
- Fracture behavior observations
- Material toughness assessment
- Comparative performance analysis
- Test condition summary
- ASTM compliance report
Why Choose Infinita Lab for ASTM A327?
Infinita Lab offers comprehensive ASTM A327 testing services, a Comprehensive lab network, project management, confidentiality, and rapid turnaround. Trust Infinita Lab for your material testing needs, Faster test results, cost savings, and reduced administrative workload.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
ASTM A327 includes impact energy measurement, specimen geometry, notch configuration, testing temperature, and hammer velocity, evaluating toughness of cast iron materials under sudden loading conditions using standardized impact testing procedures.
ASTM A327 determines absorbed impact energy, indicating resistance of cast iron to sudden fracture and providing insight into material toughness.
ASTM A327 is commonly applied to gray iron, ductile iron, and other cast iron materials used in structural and industrial components.
ASTM A327 requires an impact testing machine, such as a pendulum-type tester, along with notched specimens and temperature control equipment if needed.
ASTM A327 evaluates impact resistance under controlled laboratory conditions and may not fully represent real-world loading scenarios involving complex stresses, defects, or environmental influences on cast iron performance.
