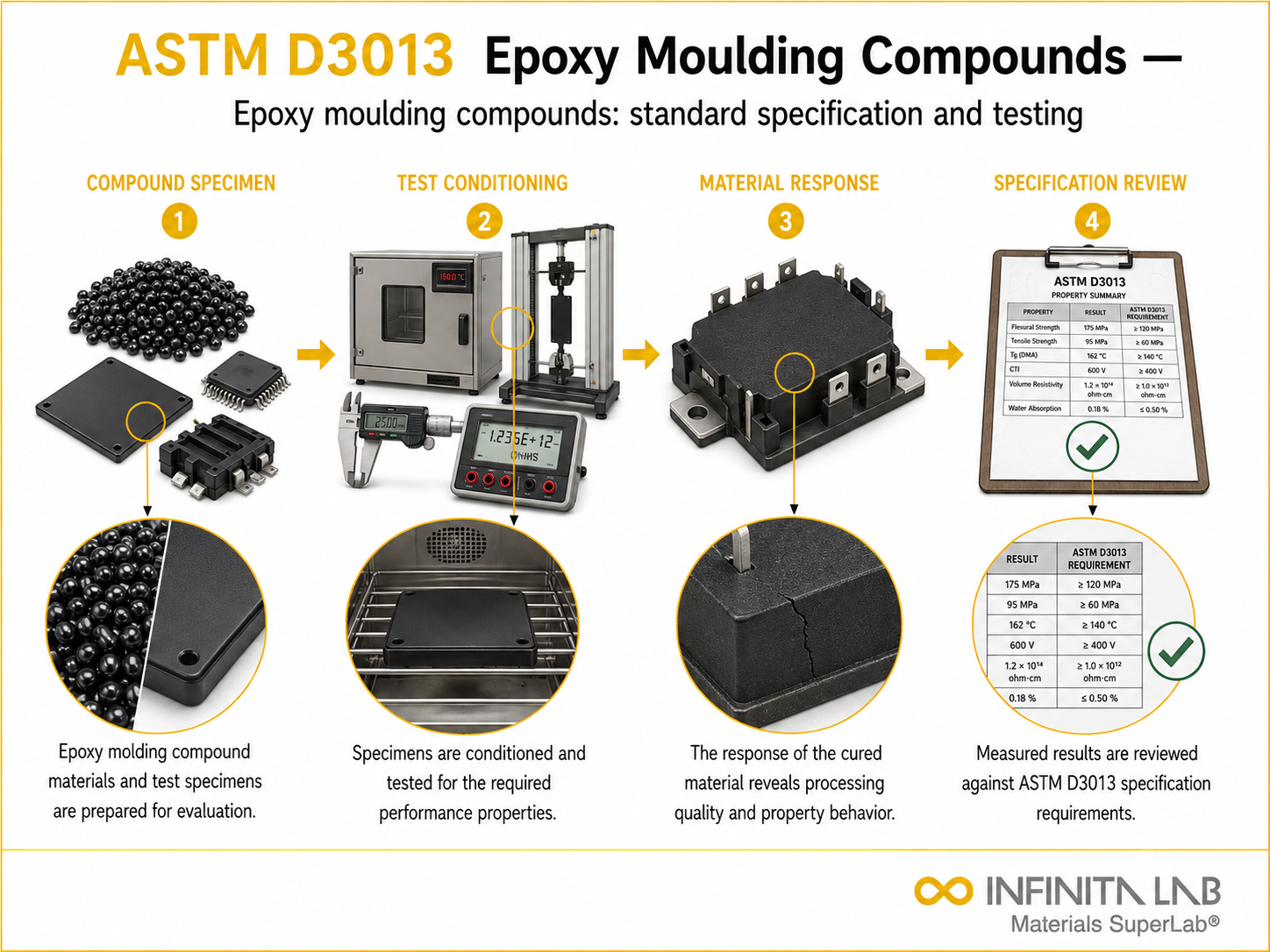

ASTM D3013: Epoxy Moulding Compounds — Standard Specification & Testing
What Are Epoxy Moulding Compounds?
Epoxy moulding compounds (EMCs) are thermoset resin systems — comprising epoxy resin, hardener, filler, flame retardant, coupling agent, and colorant — compression- or transfer-moulded into precise shapes for electronic encapsulation and structural applications. EMCs are the dominant packaging material for integrated circuits, power devices, and discrete semiconductors, providing electrical insulation, mechanical protection, and thermal dissipation. The electronics, semiconductor, aerospace, and automotive industries rely on precisely characterized EMCs to ensure device reliability and long-term performance.
ASTM D3013 is the Standard Specification for Transfer Moulding Compounds Used for Encapsulation of Electronic Components, providing requirements and test methods specific to this critical material class.
Key Properties Defined in ASTM D3013
Flow and Processability
Spiral flow length (ASTM D3123) measures the distance EMC flows in a defined spiral channel mould under standard conditions (175°C, 6.9 MPa, 120-second cure). This parameter controls mould filling, wire sweep (displacement of bond wires during moulding), and void formation in complex IC packages. Target spiral flow values vary by application: 30–70 inches for standard packages, lower for thin or fine-pitch packages.
Gel Time
Gel time measures the time at which the compound transitions from liquid to gel state at a specified temperature (typically 175°C). It determines the working window during which the compound must fill the mould cavity before crosslinking becomes excessive.
Moisture Absorption
Moisture uptake by EMC during storage or service reduces glass transition temperature (Tg), degrades electrical insulation resistance, and promotes corrosion of metal interconnects. ASTM D570 moisture absorption testing and pressure cooker testing (PCT, 121°C/100% RH) quantify moisture sensitivity, which is classified per IPC/JEDEC J-STD-020.
Flexural Strength and Modulus
Post-cure flexural strength (ASTM D790) and modulus characterize the mechanical performance of the cured compound. High-modulus EMCs transmit more thermomechanical stress to solder joints and silicon dies during thermal cycling, whereas low-modulus or low-stress compounds reduce die cracking and package warpage.
Coefficient of Thermal Expansion (CTE)
CTE mismatch between EMC (typically 7–25 ppm/°C) and silicon die (2.6 ppm/°C) or PCB substrate (15–18 ppm/°C) drives thermomechanical fatigue. TMA (Thermomechanical Analysis, ASTM E831) measures CTE below and above Tg, enabling finite element analysis of package reliability.
Reliability Testing of EMC-Encapsulated Devices
Qualified EMC systems undergo complete reliability qualification, including thermal shock (JEDEC JESD22-A104), moisture sensitivity level (MSL) testing, HAST, HTOL, and board-level drop testing to ensure they meet automotive AEC-Q100, JEDEC, and IPC standards for the target application.
Conclusion
ASTM D3013 provides essential guidelines for evaluating the properties and performance of epoxy moulding compounds used in electrical and electronic applications. The standard ensures consistent testing of key characteristics such as flow behavior, curing properties, and thermal stability. By following this method, manufacturers can maintain product quality, ensure reliability, and meet industry requirements, making it a crucial reference for material testing and quality assurance.
Why Choose Infinita Lab for Epoxy Moulding Compound Testing?
Infinita Lab addresses the most frustrating pain points in EMC testing: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on innovation. From kickoff to final report, we orchestrate every detail — fast and seamlessly.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is spiral flow, and why is it measured for EMCs? Spiral flow (ASTM D3123) measures the flowability of an EMC under standard moulding conditions. It determines whether the compound can fill complex, fine-feature mould cavities without voids or short shots, and whether it flows fast enough to avoid premature gelation before cavity filling is complete
Why is Tg important for epoxy moulding compounds? Above Tg, EMC stiffness drops dramatically and CTE increases sharply. Operating above Tg increases package warpage, solder joint fatigue, and electrical failure risk. Tg by DMA or DSC is a key specification parameter — automotive applications typically require Tg > 165°C for under-hood reliability.
What is the MSL classification for EMC-encapsulated devices? Moisture Sensitivity Level (MSL) per IPC/JEDEC J-STD-020 classifies how long a packaged semiconductor can be exposed to ambient conditions before reflow soldering without risk of delamination or "popcorning" from rapid steam generation. MSL 1 (unlimited exposure) is the most desirable; MSL 6 requires baking immediately before use.
What flame-retardant requirements apply to EMCs? Halogen-free (HF) flame-retardant EMCs using phosphorus- or nitrogen-based systems are increasingly specified to comply with the RoHS Directive (2011/65/EU) and JEDEC green package standards. UL 94 V-0 flammability rating is the typical minimum for electronic encapsulation applications.
How is CTE measured for epoxy moulding compounds? CTE is measured by Thermomechanical Analysis (TMA) per ASTM E831 or ISO 11359-2, heating a cured EMC specimen at a defined rate (typically 5°C/min) and measuring dimensional change. CTE is reported both below Tg (α₁) and above Tg (α₂), as both values are needed for thermomechanical simulation.
